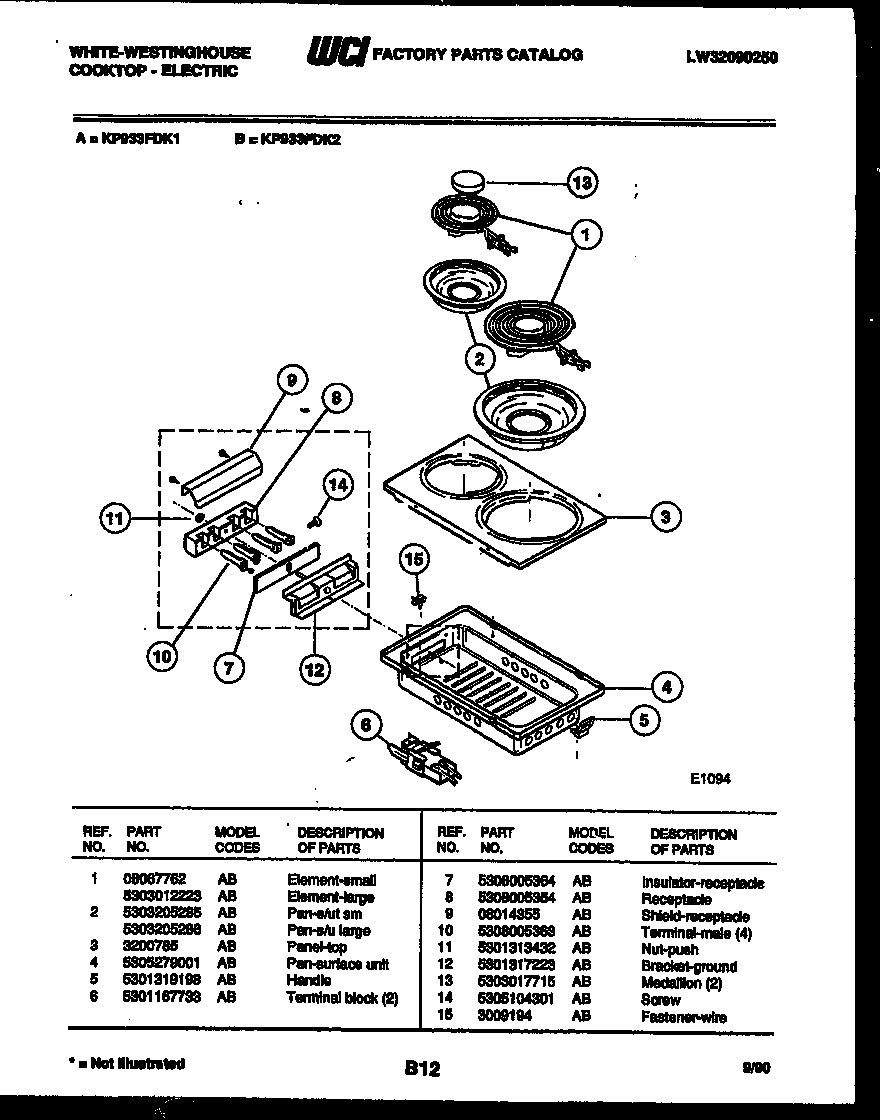

KP933FDK1 03 – COOKTOP PARTS

KP933FDK1 03 – COOKTOP PARTS

Written by

in

KP933FDK1 03 – COOKTOP PARTS

Products

PositionProduct
1A316442301 Frigidaire Oven 8 Coil Element 2600W
1318372211 Frigidaire Oven 6" Electric Range Burner Kit
2A316048413 Frigidaire Oven Range Chrome 8" Drip Bow
2316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
3COOKTOP
4WCI 5305279001
5WCI 5301319198
65303935058 Frigidaire Oven Burner Receptacle Kit
7WCI 5308005364
8WCI 5308005354
9WCI 08014355
10WCI 5308005363
11WCI 5301313432
12WCI 5301317223
135303017715 Frigidaire Medallion
14SCREW, THERMOSTAT SELECTOR SWITCH (NON-ILLUSTRATED)
15CLAMP-WIRE
