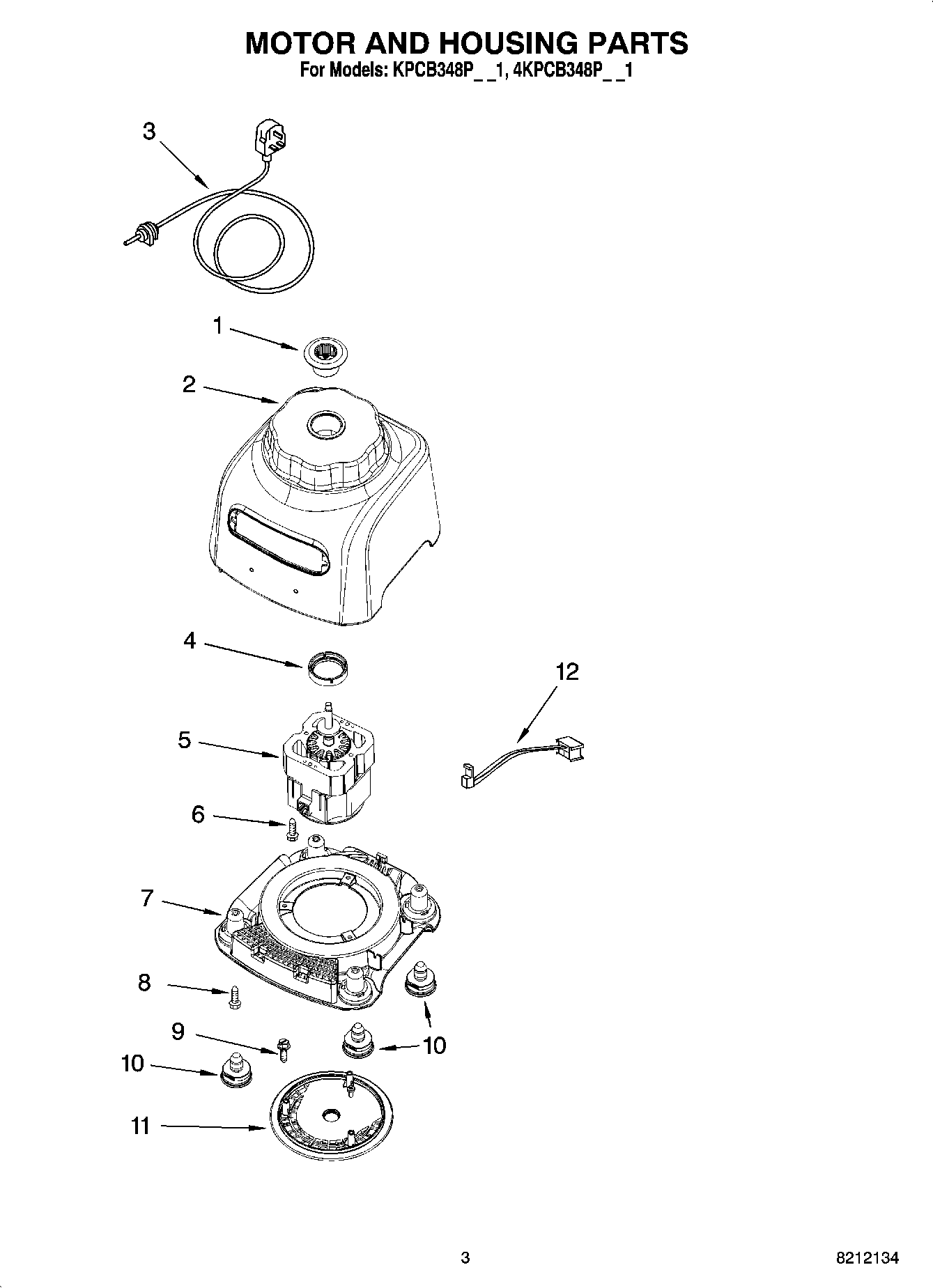

KPCB348PPM1 02 – MOTOR AND HOUSING PARTS

KPCB348PPM1 02 – MOTOR AND HOUSING PARTS

Written by

in

KPCB348PPM1 02 – MOTOR AND HOUSING PARTS

Products

Position	Product
1	Coupler, Lower
2	HOUSING (ONYX BLACK)
2	Housing
2	Housing (Nickel Pearl)
3	Cord, Power
4	Seal, Motor
5	Motor
6	Screw, 10 x 16
7	Base
8	Screw, 10 x 16
9	Screw, 8 x 3/8
10	Pedestal Foot
11	Cover, Base
12	Sensor, Hall Effect
