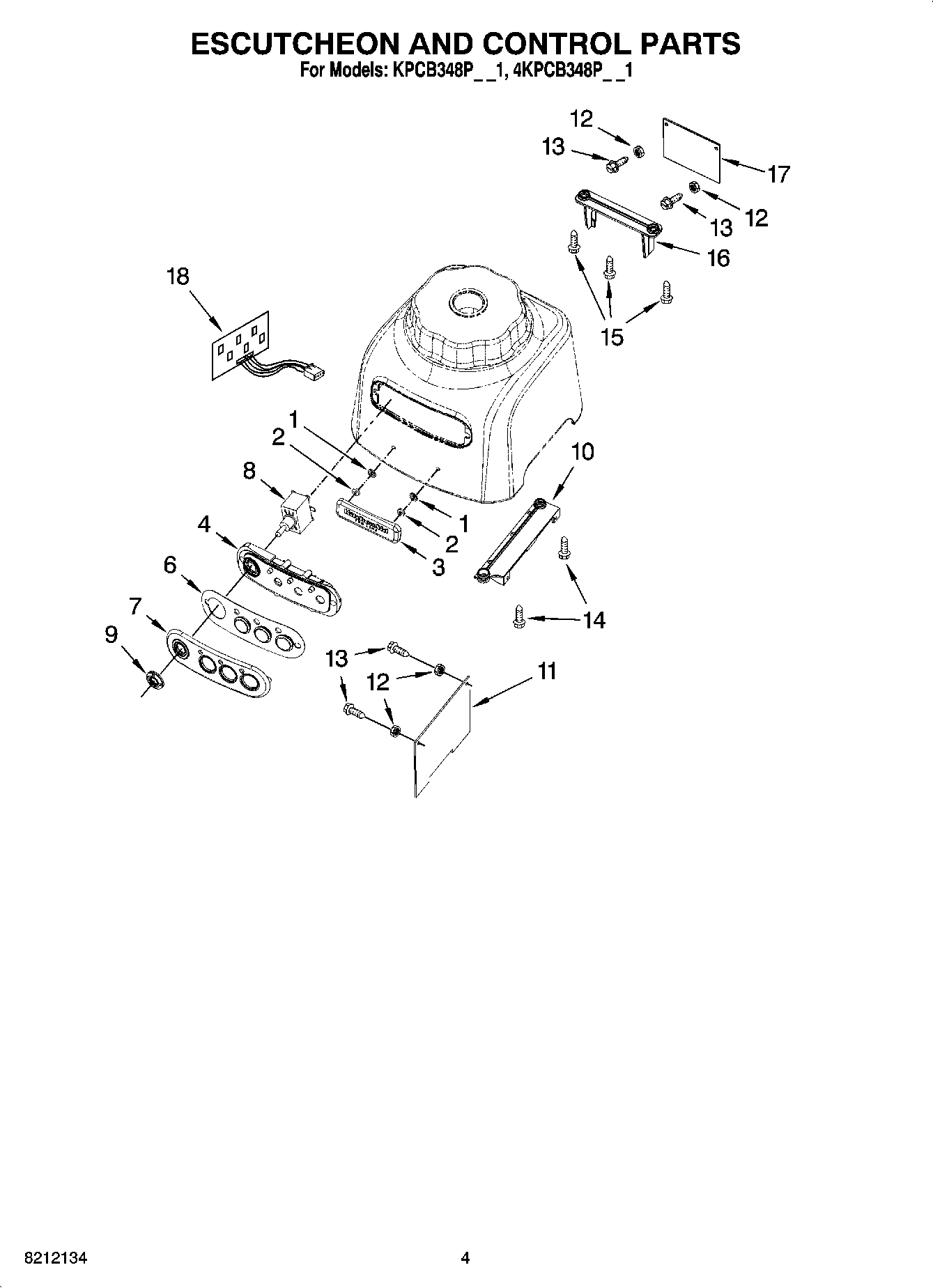

KPCB348PPM1 03 – ESCUTCHEON AND CONTROL PARTSadmin2025-04-26T12:30:03+00:00KPCB348PPM1 03 – ESCUTCHEON AND CONTROL PARTS
Products
| Position | Product |
|---|
| 1 | Seal, Nameplate |
| 2 | Nut, Washer |
| 3 | Nameplate |
| 4 | Switch, Mount |
| 6 | Seal, Escutcheon |
| 7 | Escutcheon |
| 8 | Switch, On/Off |
| 9 | Nut, Bezel |
| 10 | Mount, Main PCB |
| 11 | Main PCB |
| 12 | Nut, Plastic |
| 13 | Screw, Plastic |
| 14 | Screw, 10 x 16 |
| 15 | Screw, 10 x 16 |
| 16 | Mount, EMC |
| 17 | EMC-PC Board |
| 18 | Switch PCB Assy |
