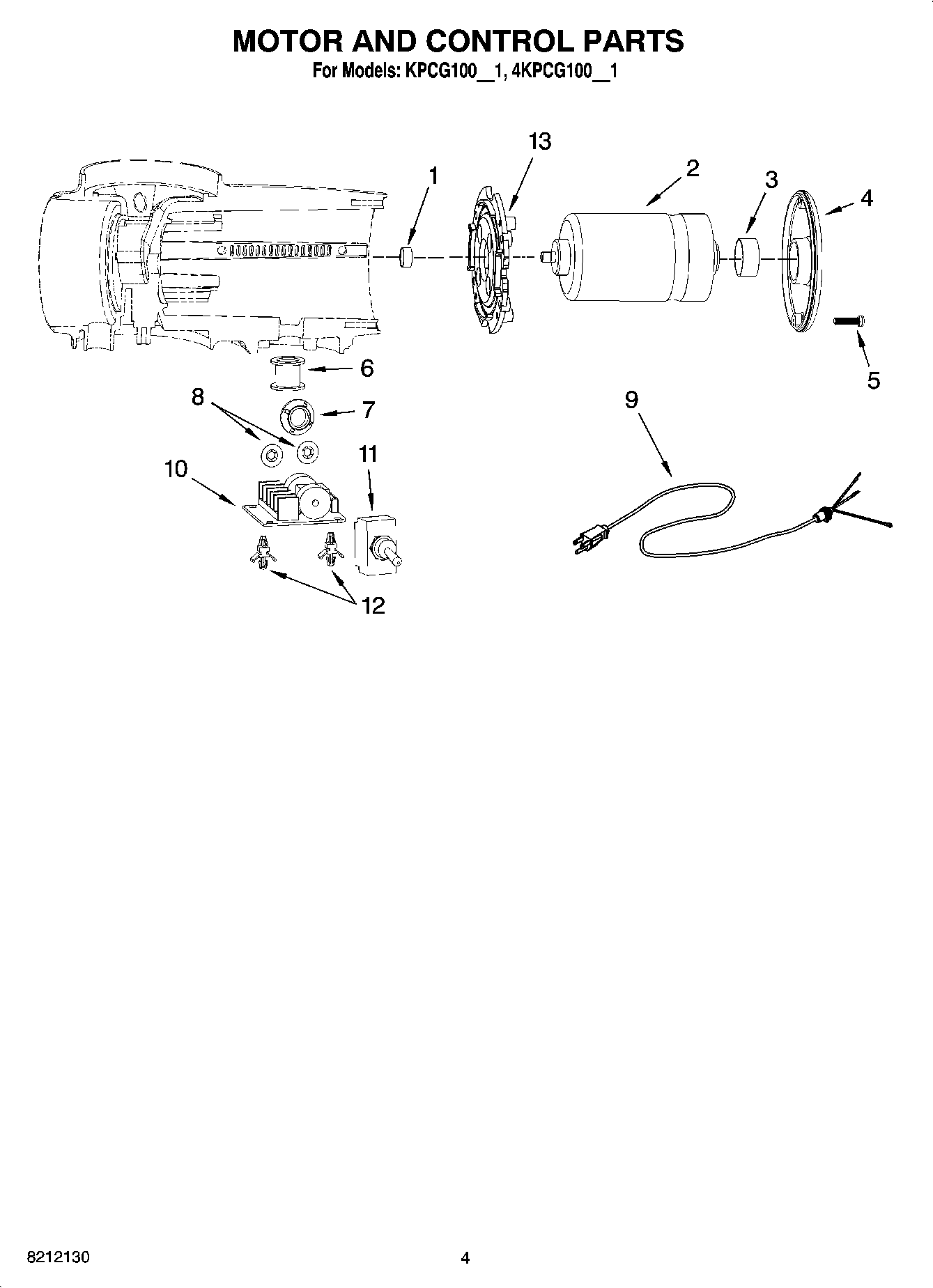

KPCG100OB1 03 – MOTOR AND CONTROL PARTSadmin2025-04-26T12:27:59+00:00KPCG100OB1 03 – MOTOR AND CONTROL PARTS
Products
| Position | Product |
|---|
| OPTIONAL PARTS NOT ILLUSTRATED |
| SCOOP, COFFEE |
| BRUSH, CLEANING |
| 1 | BUSHING, COPPER |
| 2 | Motor |
| 3 | SEAL, VIBRATION |
| 4 | Cap, Motor (Pearl Metallic) |
| 4 | Cap, Motor (Nickel Pearl) |
| 4 | CAP, MOTOR (EMPIRE RED) |
| 4 | CAP, MOTOR (ONYX BLACK) |
| 5 | SCREW, MOTOR CAP |
| 6 | TUBE, HOUSING |
| 7 | NUT, SWITCH |
| 8 | 4176713 Whirlpool Washer |
| 9 | Cord, Power |
| 10 | PCB Board |
| 11 | 4176758 Whirlpool Switch |
| 12 | SPACER |
| 13 | Plate, Motor |
