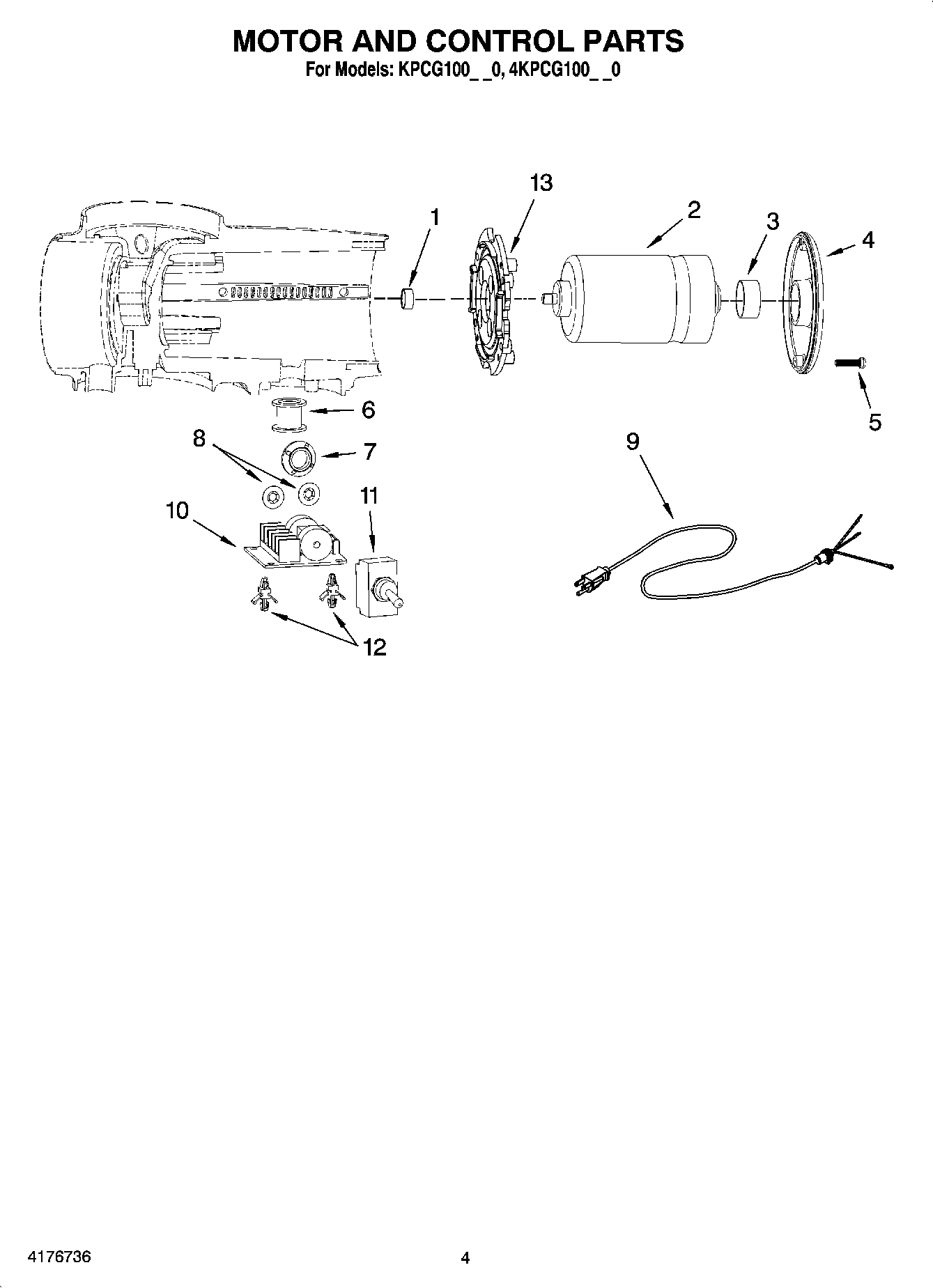

KPCG100PM0 03 – MOTOR AND CONTROL PARTS

Written by

Products

Position	Product
1	BUSHING, COPPER
2	Motor
3	SEAL, VIBRATION
4	Cap, Motor (Pearl Metallic)
5	SCREW, MOTOR CAP
6	TUBE, HOUSING
7	NUT, SWITCH
8	4176713 Whirlpool Washer
9	Cord, Power
10	PCB Board
11	4176758 Whirlpool Switch
12	SPACER
13	Plate, Motor
13	SCOOP, COFFEE
13	BRUSH, CLEANING
13	OPTIONAL PARTS NOT ILLUSTRATED
