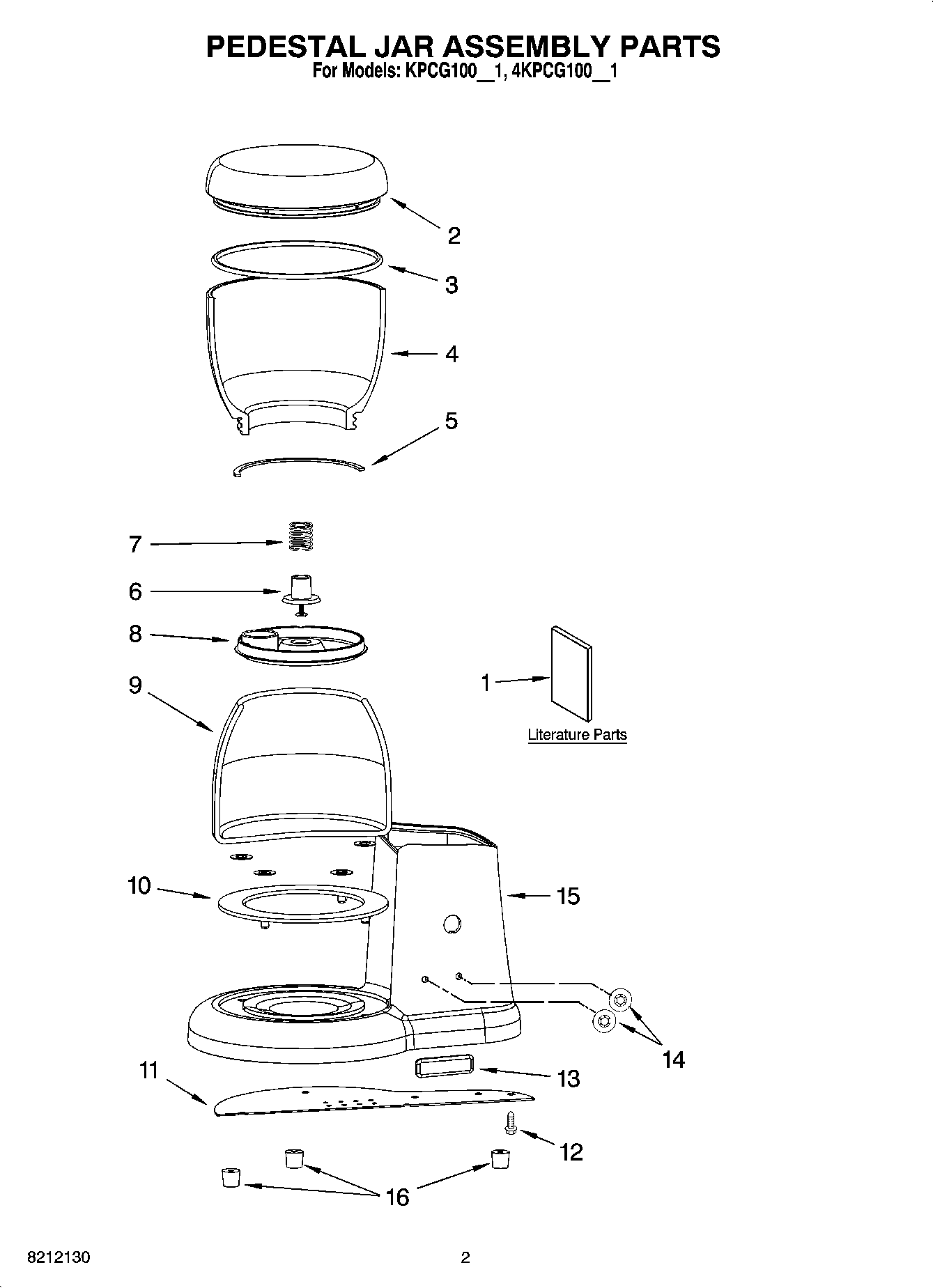

KPCG100PM1 01 – PEDESTAL JAR ASSEMBLY PARTS

Products

PositionProduct
1Use and Care Guide
1Repair Parts List
2Lid, Bean Jar
34176731 Whirlpool Seal
4Jar, Bean
54176729 Whirlpool Seal Assembly
6NOZZLE, HOLDER
7SPRING, HOUSING
84176721 Whirlpool Cover
9WP4176728 Whirlpool Jar
104176722 Whirlpool Ring Assembly
11COVER, BASEPLATE
12Screw
13Nameplate
144176713 Whirlpool Washer
15Base Assembly (Incl Nameplate) (Nickel Pearl)
15Base Assembly (Incl Nameplate) (Empire Red)
15Base Assembly (Incl Nameplate) (Onyx Black)
15Pedestal Assy (Incl Nameplate) (Pearl Metallic)
16Foot, Rubber
