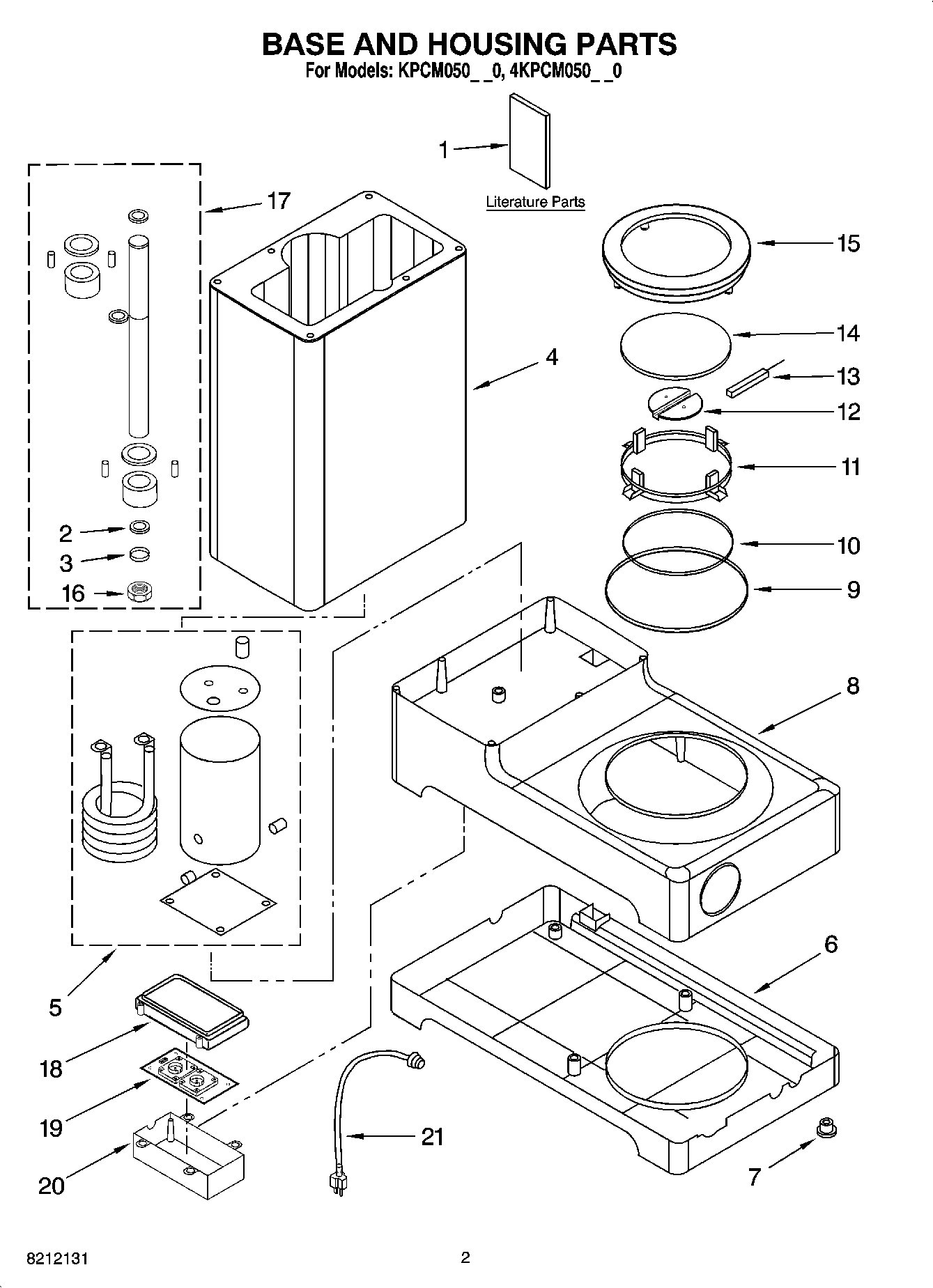

KPCM050NP0 01 – BASE AND HOUSING PARTS

KPCM050NP0 01 – BASE AND HOUSING PARTS

Written by

in

KPCM050NP0 01 – BASE AND HOUSING PARTS

Products

PositionProduct
1Use And Care Guide (U.S.)
1Use And Care Guide (Canada)
1Repair Parts List
2O-Ring, Top
3O-Ring, Bottom
4Housing (Onyx Black)
4Housing (Nickel Pearl)
4Housing (Pearl Metallic)
5Pump Assembly
6Base-Cover
7Foot
8Base (Onyx Black)
8Base (Nickel Pearl)
8Base (Pearl Metallic)
9Seal, Ring A
10Seal Ring B
11Mount, Hot Plate
12Hot Plate, Main
13PTC Mount
14Hot Plate, Extra
15Ring, Hot Plate
16Nut, Float Switch
17Not Serviced
18Cover, Base
19Control, Main PCB
20Cover, PCB
21Cord, Power
