KPCM050OB0 03 – UPPER AND LOWER CONTROL PARTS

KPCM050OB0 03 – UPPER AND LOWER CONTROL PARTS

Written by

in

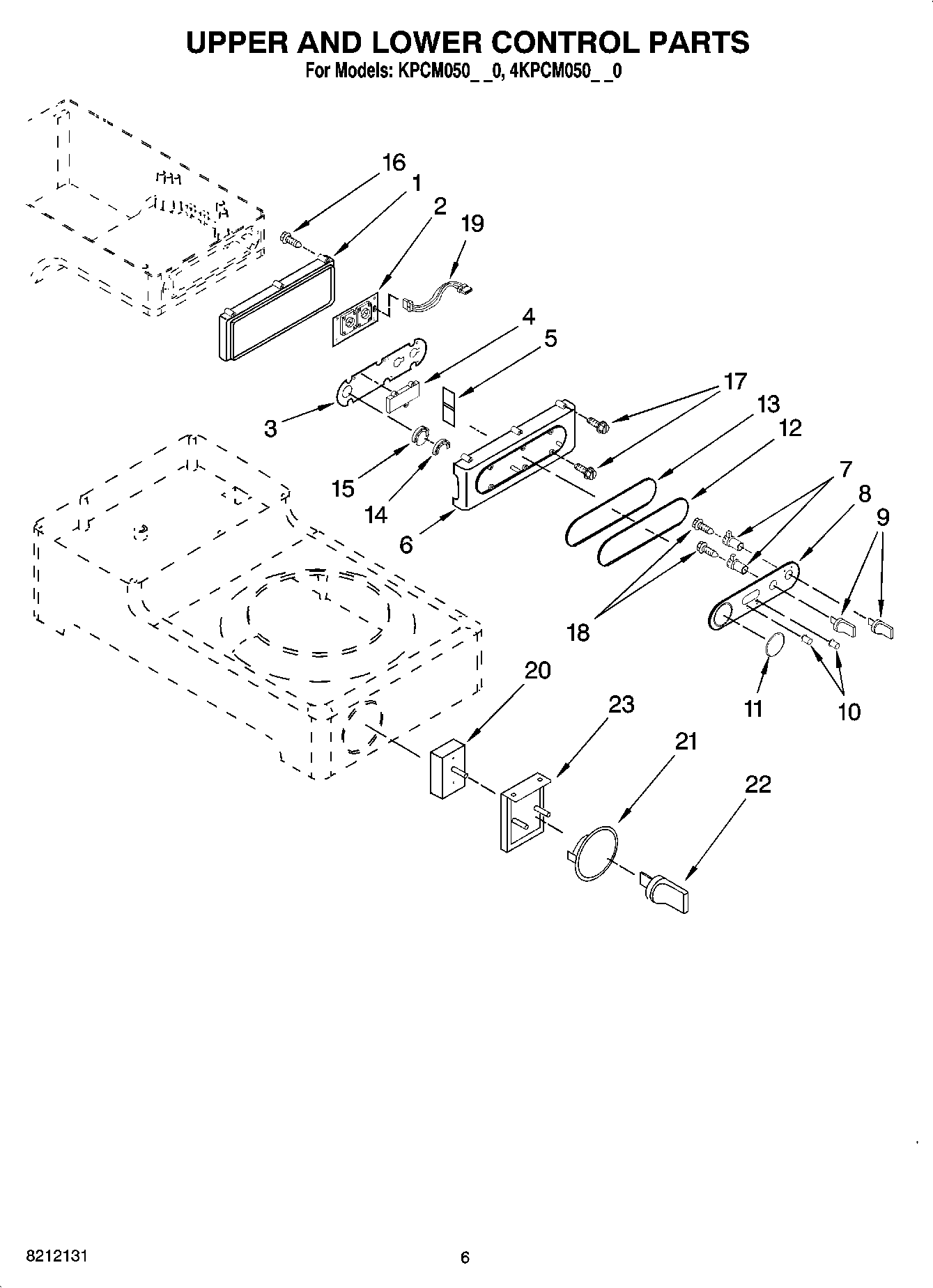

KPCM050OB0 03 – UPPER AND LOWER CONTROL PARTS

Products

PositionProduct
1Rear Cover, Control Panel
2Rotary Switch, PCB
3Control, PCB
4LCD Cover
5Shield
6Basket, Control Panel
7Mount, Control Knob
8Control Panel
9Knob, Control
10Pushbutton
11Lens Cover
12Seal, Control Panel B
13Seal, Control Panel A
14Not Serviced
15LED Cover
16Screw, Rear Cover
17Screw, Basket
18Screw, Knob
19Lead Wire, PCB Control
20Basket, Rotary Switch
21Thermostat, Adjustable
22Knob, Hot Plate
23Mount, Rotary Switch
