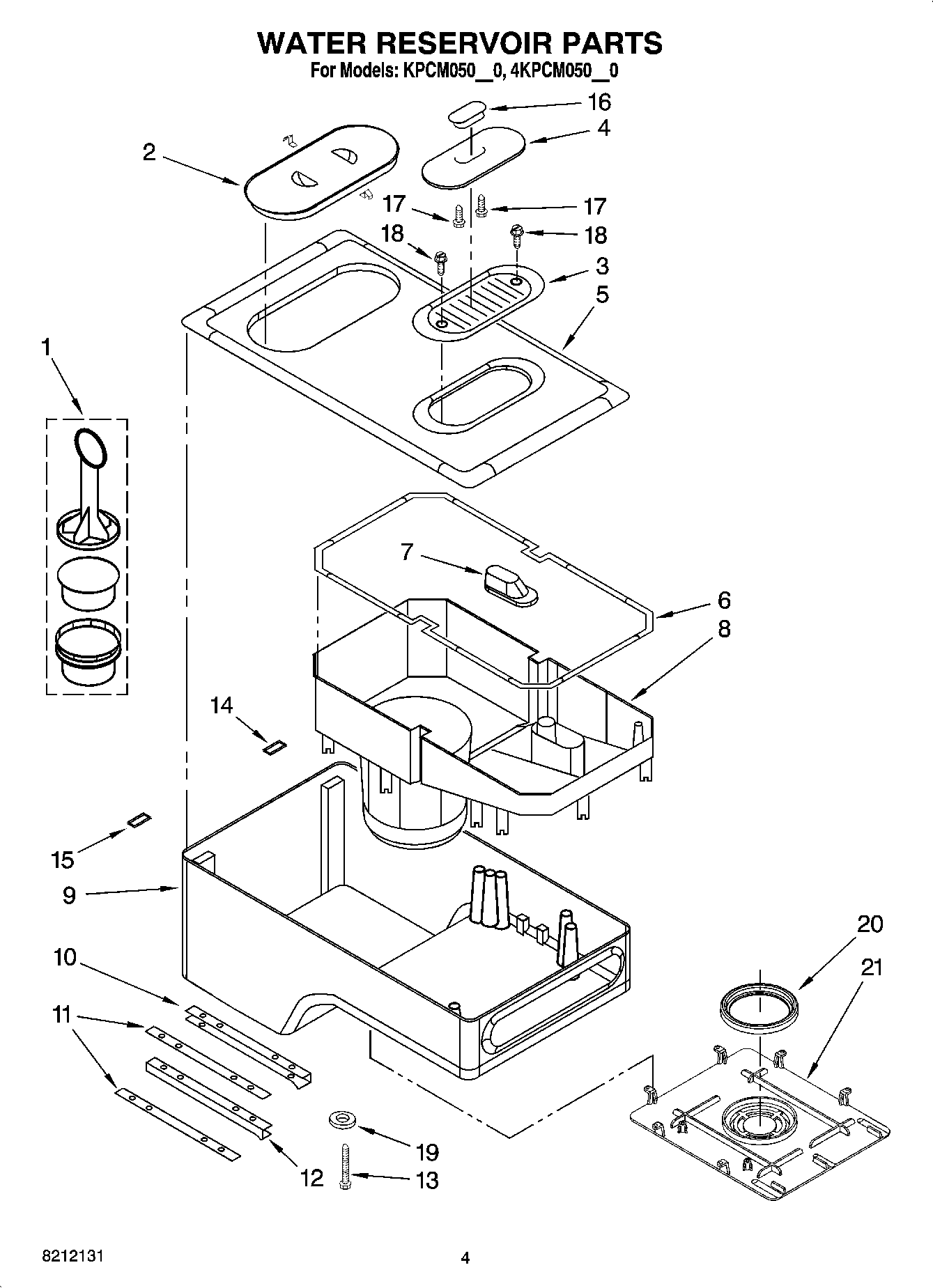

KPCM050PM0 02 – WATER RESERVOIR PARTS

Products

Position	Product
1	Filter Housing & Ring Assembly
2	Cover, Filter (Pearl Metallic)
2	Cover, Filter (Nickel Pearl)
2	Cover, Filter (Onyx Black)
3	Guide, Water
4	Cover, Water Guide
5	Cover, Top (Onyx Black)
5	Cover, Top (Nickel Pearl)
5	Cover, Top (Pearl Metallic)
6	Seal, Water Reservoir
7	Cover, Water Reservoir
8	Water Reservoir
9	Holder, Water Reservoir (Onyx Black)
9	Holder, Water Reservoir (Nickel Pearl)
9	Holder, Water Reservoir (Pearl Metallic)
10	Glide, Brew Basket (Right)
11	Mount, Glide
12	Glide, Brew Basket (Left)
13	Screw, Glide (Front)
13	Screw, Glide (Rear)
14	Locking Block (Left)
15	Locking Block (Right)
16	Knob, Water Guide Cover
17	Screw, Water Guide Cover
18	Screw, Water Guide
19	Washer, Glide
20	Ring, Seal
21	Cover, Water Reservoir Holder
