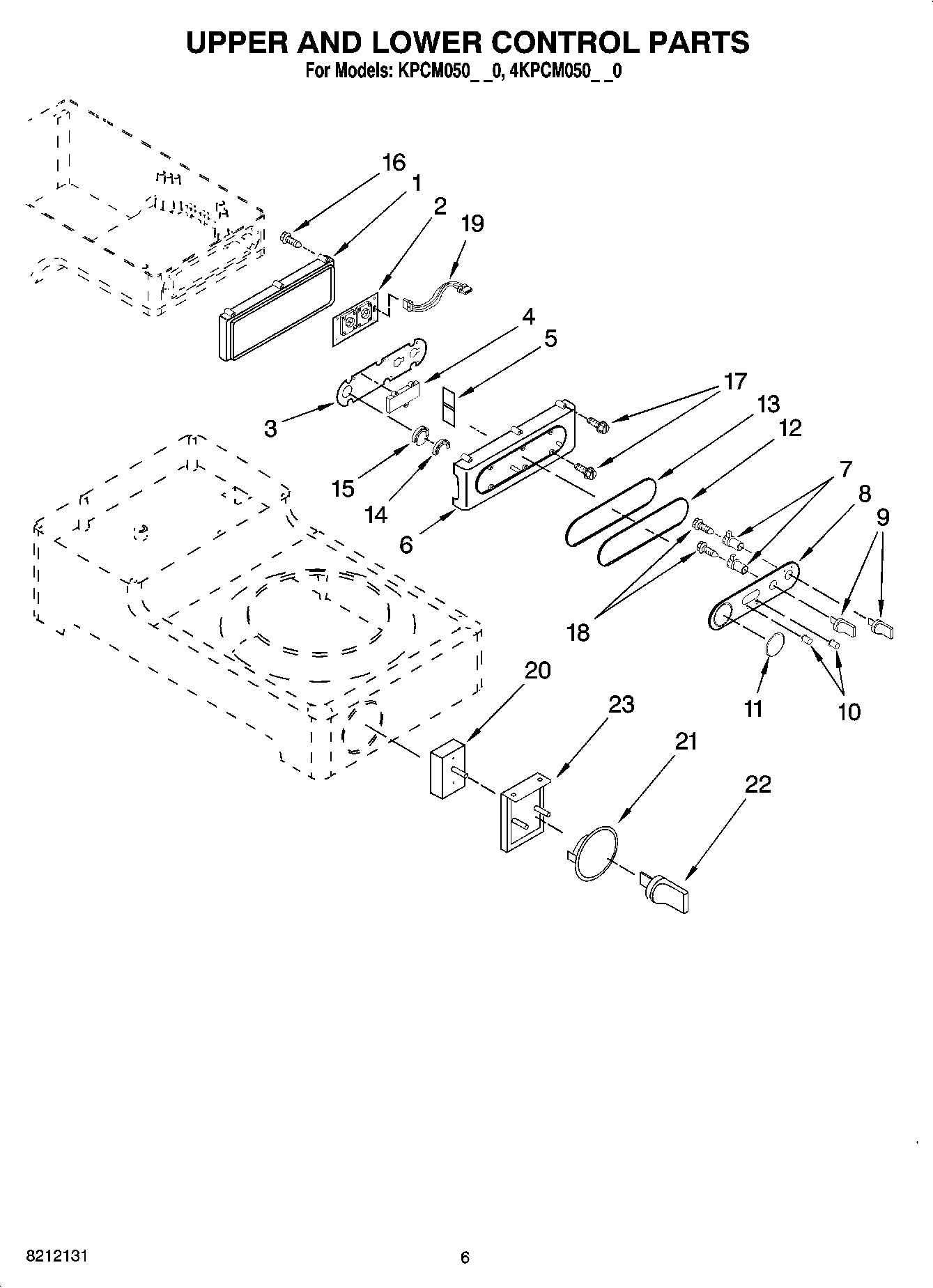

KPCM050PM0 03 – UPPER AND LOWER CONTROL PARTSadmin2025-04-26T12:28:34+00:00KPCM050PM0 03 – UPPER AND LOWER CONTROL PARTS
Products
| Position | Product |
|---|
| 1 | Rear Cover, Control Panel |
| 2 | Rotary Switch, PCB |
| 3 | Control, PCB |
| 4 | LCD Cover |
| 5 | Shield |
| 6 | Basket, Control Panel |
| 7 | Mount, Control Knob |
| 8 | Control Panel |
| 9 | Knob, Control |
| 10 | Pushbutton |
| 11 | Lens Cover |
| 12 | Seal, Control Panel B |
| 13 | Seal, Control Panel A |
| 14 | Not Serviced |
| 15 | LED Cover |
| 16 | Screw, Rear Cover |
| 17 | Screw, Basket |
| 18 | Screw, Knob |
| 19 | Lead Wire, PCB Control |
| 20 | Basket, Rotary Switch |
| 21 | Thermostat, Adjustable |
| 22 | Knob, Hot Plate |
| 23 | Mount, Rotary Switch |
