KPCM100 01 – BASE AND HOUSING PARTS

KPCM100 01 – BASE AND HOUSING PARTS

Written by

in

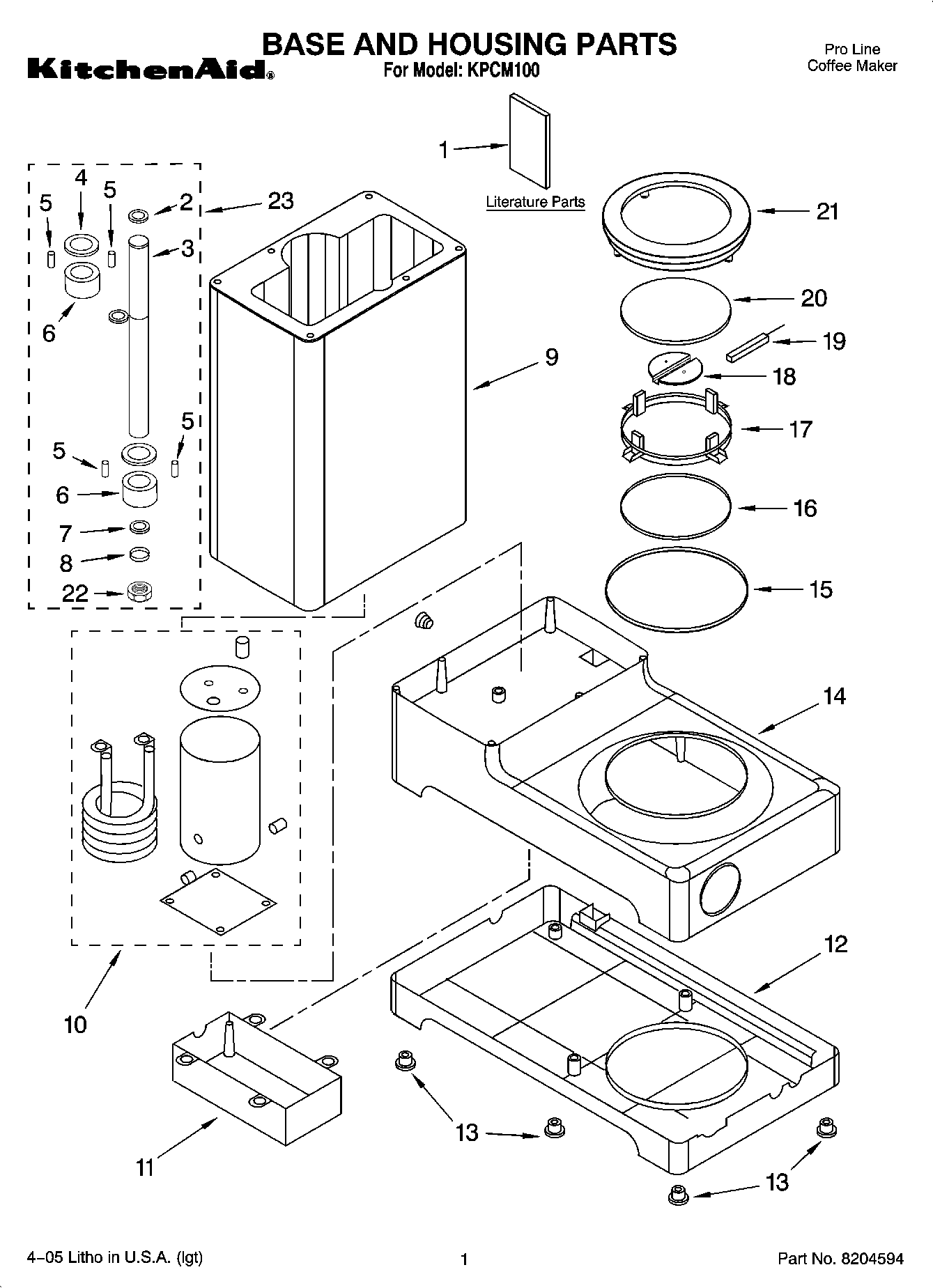

KPCM100 01 – BASE AND HOUSING PARTS

Products

Position	Product
1	Repair Parts List (7)
1	Service Manual
1	Use And Care Guide (U.S.)
2	Not Serviced
3	Not Serviced
4	Not Serviced
5	Not Serviced
6	Not Serviced
7	O-Ring, Top
8	O-Ring, Bottom
9	Housing (Pearl Metallic)
10	Pump Assembly
11	Cover, PCB
12	Base-Cover
13	Foot
14	Base (Pearl Metallic)
15	Seal, Ring A
16	Seal Ring B
17	Mount, Hot Plate
18	Hot Plate, Main
19	PTC Mount
20	Hot Plate, Extra
21	Ring, Hot Plate
22	Nut, Float Switch
23	Float Switch Assembly
