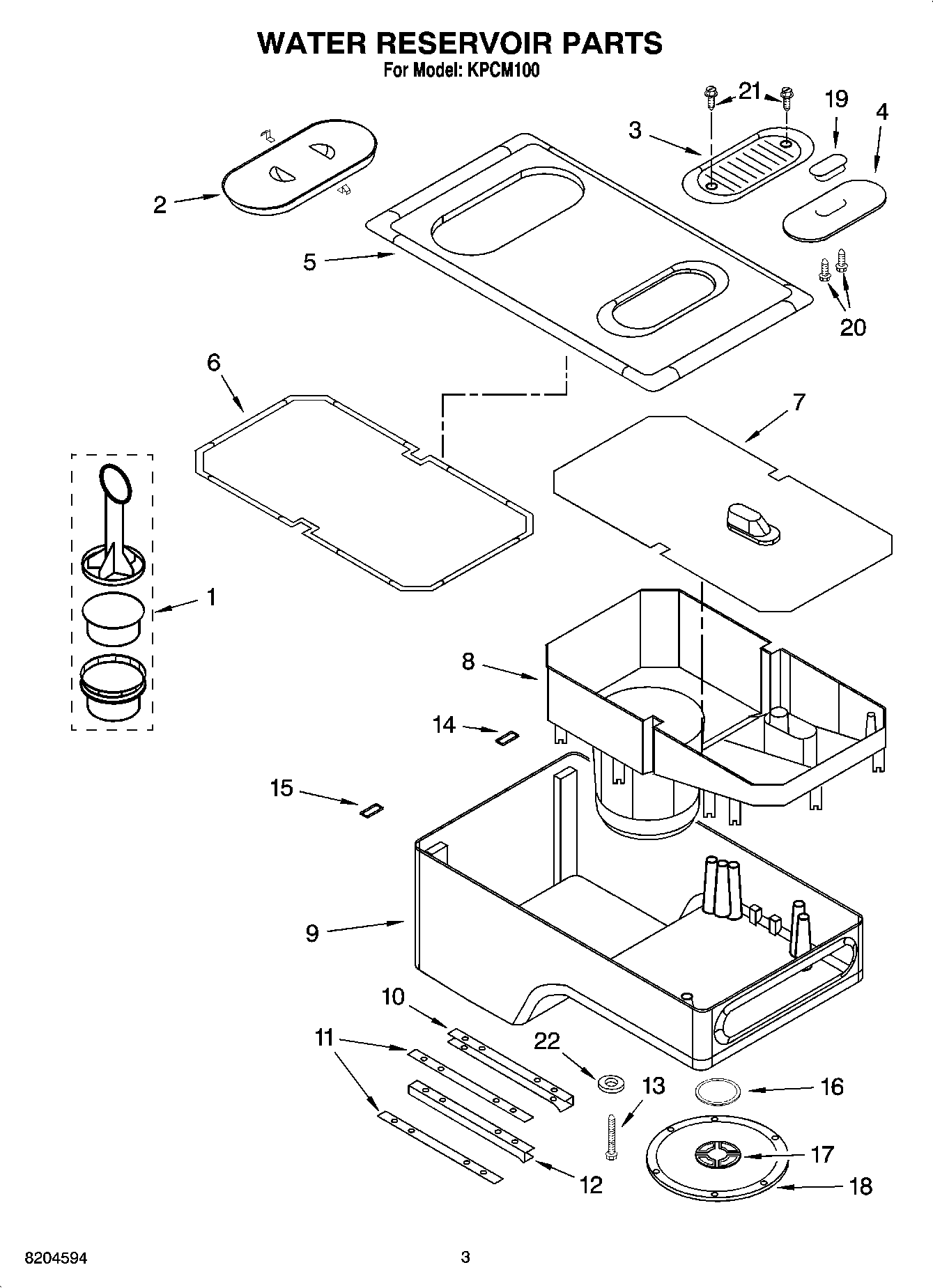

KPCM100 02 – WATER RESERVOIR PARTS

Products

Position	Product
1	Filter Housing & Ring Assembly
2	Cover, Filter (Pearl Metallic)
3	Guide, Water
4	Cover, Water Guide
5	Cover, Top (Pearl Metallic)
6	Seal, Water Reservoir
7	Cover, Water Reservoir
8	Water Reservoir
9	Holder, Water Reservoir (Pearl Metallic)
10	Glide, Brew Basket (Left)
11	Glide, Brew Basket (Right)
12	Mount, Glide
13	Screw, Glide (Front)
13	Screw, Glide (Rear)
14	Locking Block (Left)
15	Locking Block (Right)
16	Ring, Seal
17	Umbrella
18	Seal, Brew Basket
19	Knob, Water Guide Cover
20	Screw, Water Guide Cover
21	Screw, Water Guide
22	Washer, Glide
