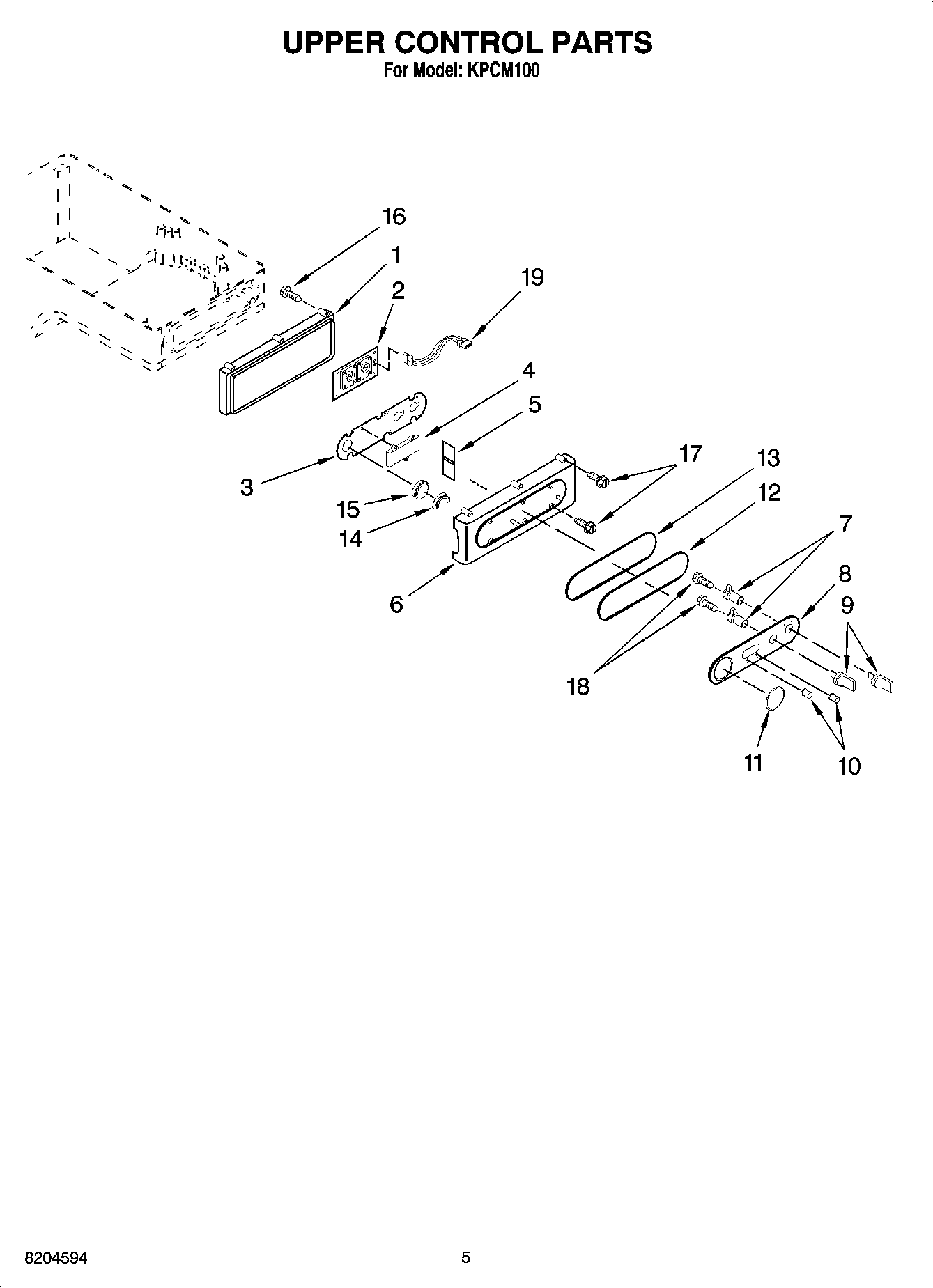

KPCM100 03 – UPPER CONTROL PARTS

Products

Position	Product
1	Rear Cover, Control Panel
3	Control, PCB
4	LCD Cover
5	Shield
6	Basket, Control Panel
7	Mount, Control Knob
8	Control Panel
9	Knob, Control
10	Pushbutton
11	Lens Cover
12	Rotary Switch, PCB
13	O-Ring, Bottom
14	Not Serviced
15	LED Cover
16	Screw, Rear Cover
17	Screw, Basket
18	Screw, Knob
19	Lead Wire, PCB Control
