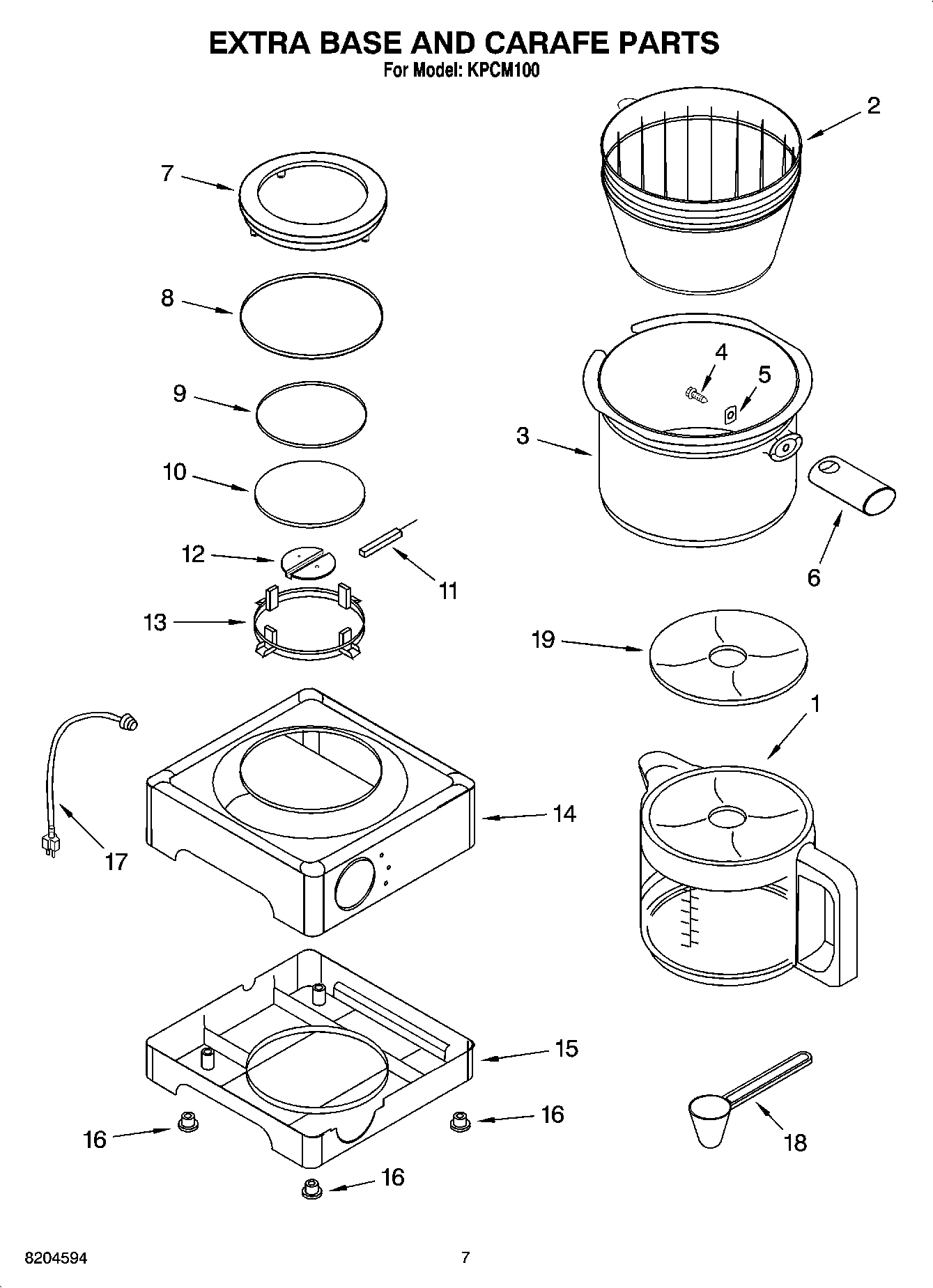

KPCM100 05 – EXTRA BASE AND CARAFE PARTS

Products

PositionProduct
1Carafe Assembly
2Insert, Brew Basket
3Basket, Brew
4Screw
5Spacer
6Handle, Brew Basket
7Ring, Hot Plate
8Hot Plate, Extra
9Seal Ring B
10Seal, Ring A
11Not Serviced
12Hot Plate, Main
13Mount, Hot Plate
14Housing, Hot Plate
15Cover, Base
16Foot
17Cord, Power
18Scoop, Coffee
19Lid, Carafe (Black)
19Lid, Carafe (Orange)
