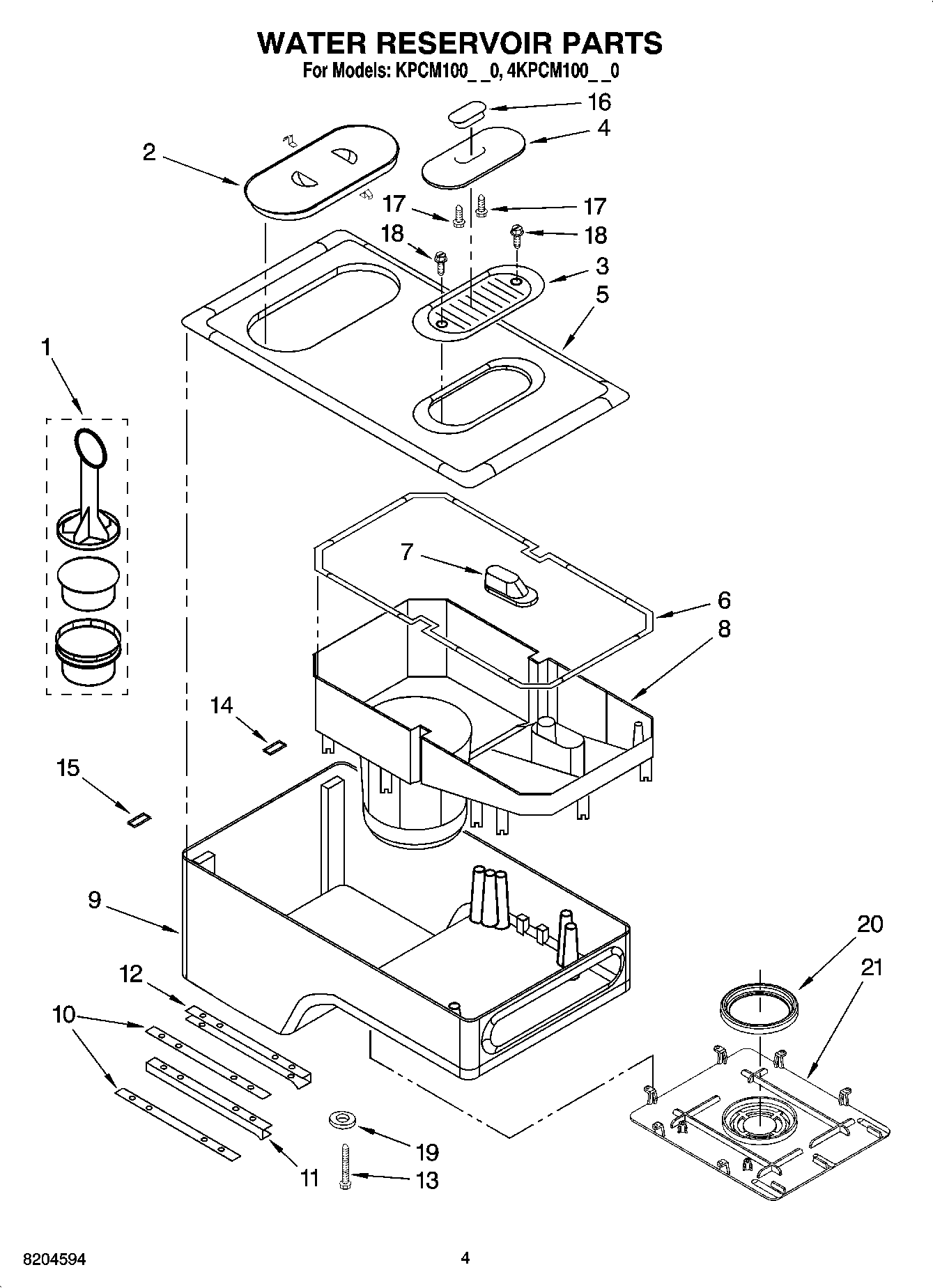

KPCM100NP0 02 – WATER RESERVOIR PARTS

Products

Position	Product
1	Filter Housing & Ring Assembly
2	Cover, Filter (Pearl Metallic)
2	Cover, Filter (Nickel Pearl)
3	Guide, Water
4	Cover, Water Guide
5	Cover, Top (Pearl Metallic)
5	Cover, Top (Nickel Pearl)
6	Seal, Water Reservoir
7	Cover, Water Reservoir
8	Water Reservoir
9	Holder, Water Reservoir (Pearl Metallic)
9	Holder, Water Reservoir (Nickel Pearl)
10	Mount, Glide
11	Glide, Brew Basket (Left)
12	Glide, Brew Basket (Right)
13	Screw, Glide (Front)
13	Screw, Glide (Rear)
14	Locking Block (Left)
15	Locking Block (Right)
16	Knob, Water Guide Cover
17	Screw, Water Guide Cover
18	Screw, Water Guide
19	Washer, Glide
20	Ring, Seal
21	Cover, Water Reservoir Holder
