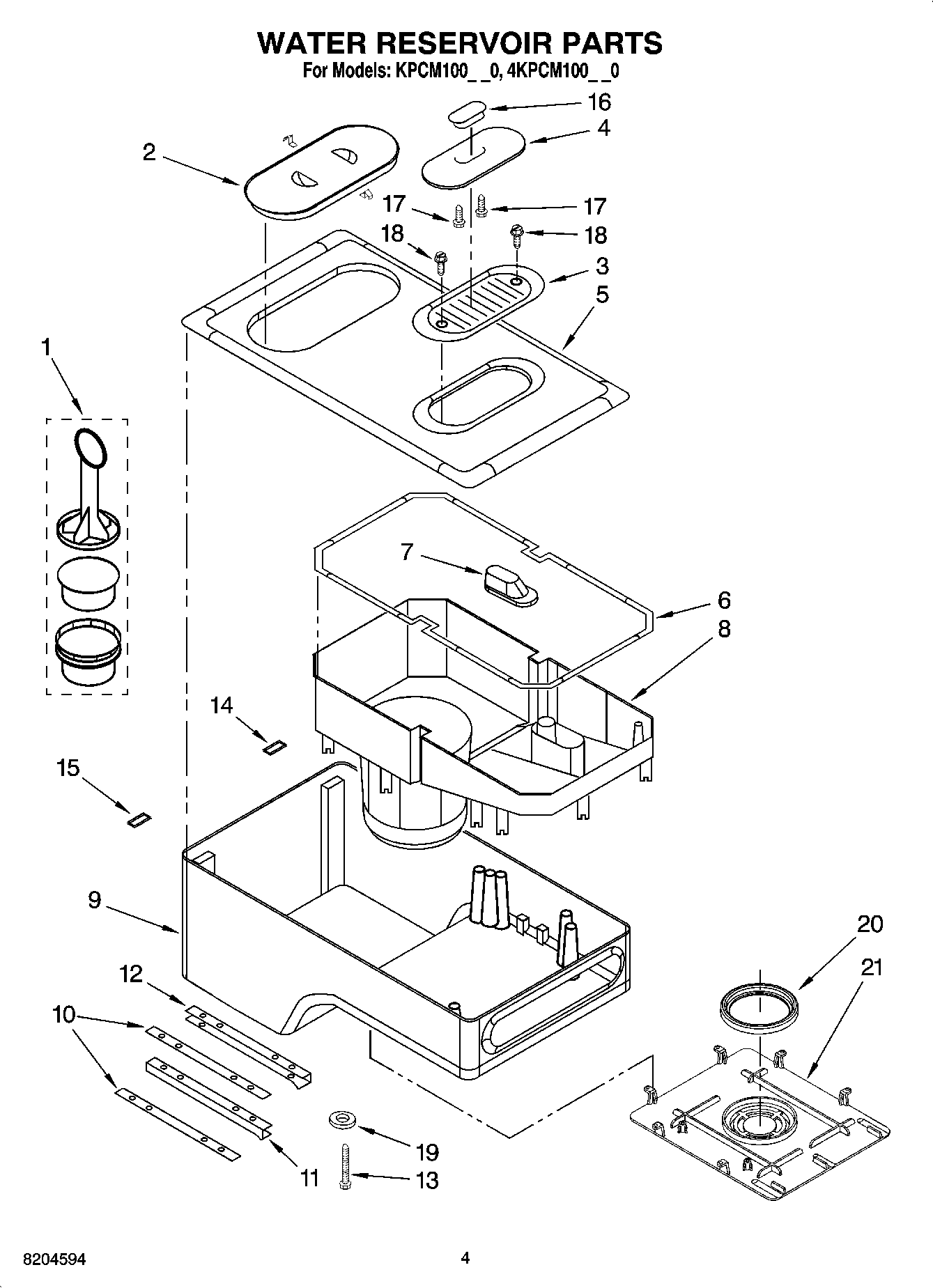

KPCM100PM0 02 – WATER RESERVOIR PARTS

KPCM100PM0 02 – WATER RESERVOIR PARTS

Written by

in

KPCM100PM0 02 – WATER RESERVOIR PARTS

Products

PositionProduct
1Filter Housing & Ring Assembly
2Cover, Filter (Pearl Metallic)
2Cover, Filter (Nickel Pearl)
3Guide, Water
4Cover, Water Guide
5Cover, Top (Pearl Metallic)
5Cover, Top (Nickel Pearl)
6Seal, Water Reservoir
7Cover, Water Reservoir
8Water Reservoir
9Holder, Water Reservoir (Pearl Metallic)
9Holder, Water Reservoir (Nickel Pearl)
10Mount, Glide
11Glide, Brew Basket (Left)
12Glide, Brew Basket (Right)
13Screw, Glide (Front)
13Screw, Glide (Rear)
14Locking Block (Left)
15Locking Block (Right)
16Knob, Water Guide Cover
17Screw, Water Guide Cover
18Screw, Water Guide
19Washer, Glide
20Ring, Seal
21Cover, Water Reservoir Holder
