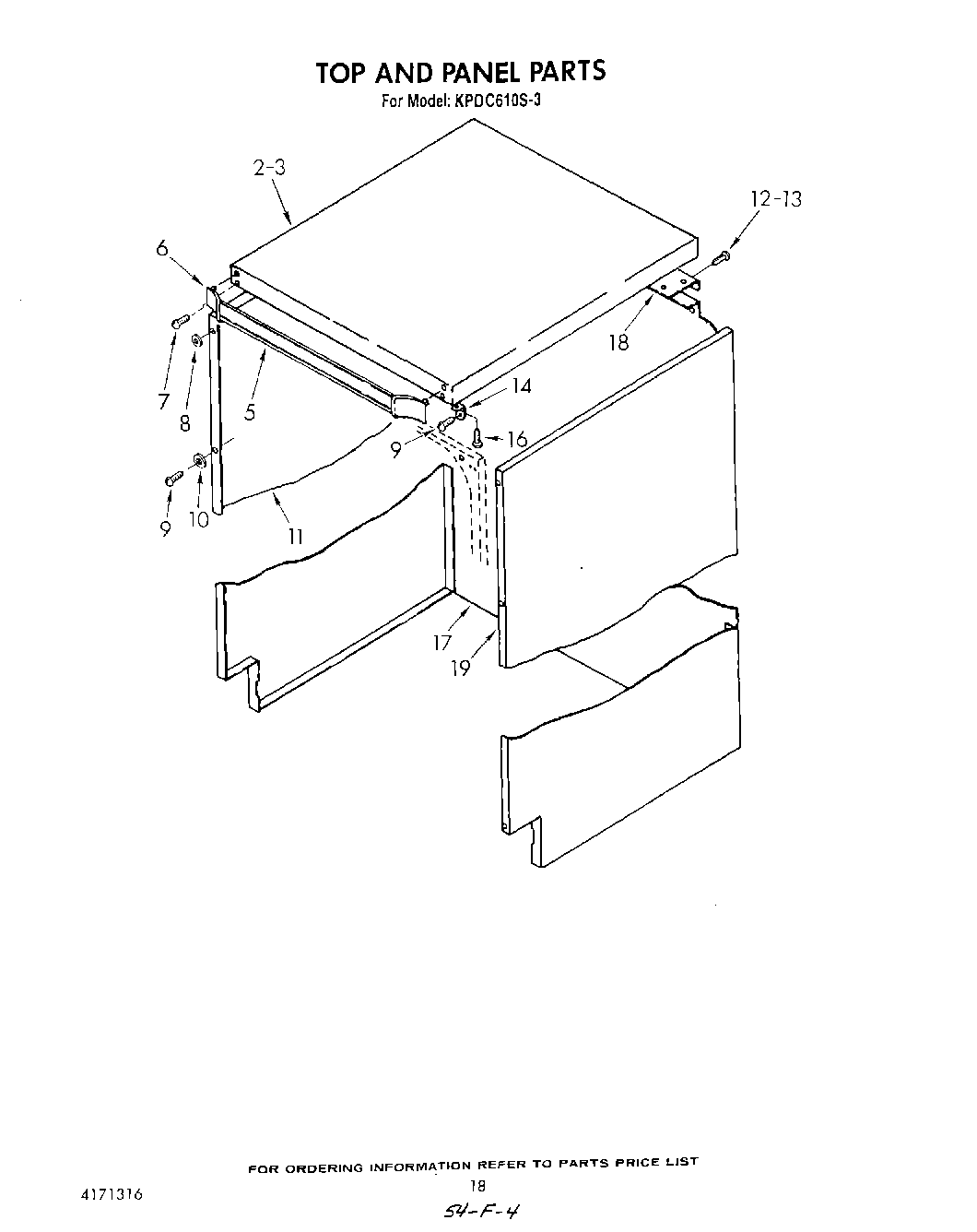

KPDC601S3 15 – TOP AND PANEL

Products

Position	Product
2	Wood Top Kit
3	Screw, 10-13 X 3/4
5	Bar, Guide
6	Endcap (Guide Bar) (L.H.)
6	Endcap (Guide Bar) (R.H.)
7	Screw, 10-13 X 3/4 (2)
8	Lock Washer No.10 Ext. Shake- proof
9	Trim, Tank (Screw, 10-16 X 1/2)
11	Side Panel (L.H.) (Almond)
11	Side Panel (L.H.) (Almond)
11	Side Panel (L.H.) (White)
12	Screw, 10-16 X 5/16
13	Washer (2)
14	WP9741251 Whirlpool Mounting Bracket
16	Screw, 10-13 X 3/4 (2)
17	Panel, Rear (White)
17	Panel, Rear (Almond)
17	Panel, Rear (Harvest Tone)
18	Bracket, Rear Panel Anchor
19	Side Panel (R.H.) (Almond)
19	Side Panel (R.H.) (White)
19	Side Panel (R.H.) (Harvest Tone)
