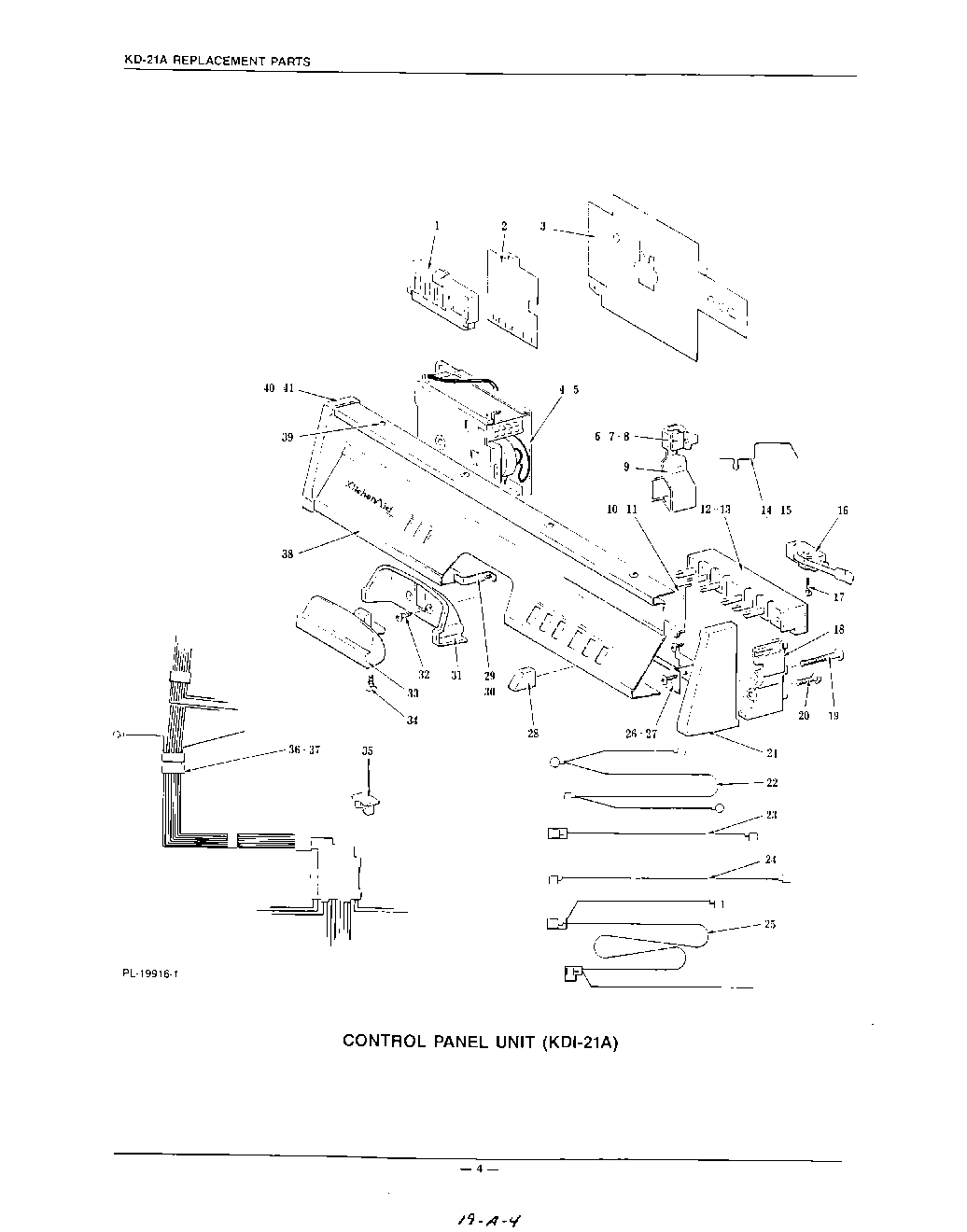

KPDC610S0 03 – KDI-21A

Products

Position	Product
1	Light Package
2	Insulator – Light Package
3	Insulator – Latch Area
4	Timer Assy. (115 V., 60 Hz.)
6	Anchor – Cancel Spring
7	Spacer – Spring
8	Pop Rivet – 1/8“ Open End
9	Spring – Switch Cancel
10	Bracket – Program Switch
12	Switch – Program
13	Self-Tapping Screw 6-32 x 3/8 Phil. Truss Hd., Type 17
14	Spring – Door Interlock
15	Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd., Type AB
16	Switch – Interlock
17	Self-Tapping Screw 6-32 x 7/8 Phil. Pan Hd., Type F
18	Spacer – End Cap (R.H.)
19	Screw & Washer Assy
20	Self-Tapping Screw 8-32 x 7/8 Phil. Pan Hd., Type TT
21	Cap – End (R.H.)
22	Wiring Harness (Grounding) (KDC-21A & KDC-61A)
23	Lead Assy. (Fill Control Switch to Fill Valve)
24	Lead Assy. (Interlock Switch to Program Switch)
25	Wiring Harness (Lower Common) (KDC-21 & KDC-61A)
26	Clip – Grounding (Front Panel)
27	WPL SD1311
28	Button – Program Switch
29	326789 Whirlpool Surface Element 8 Inch
30	Self-Tapping Screw 6-20 x 3/8 Phil. Truss Hd.,
31	Trim – Handle
32	WPL SC11752
33	WPL 242414
34	WPL SC1714
35	WPL 242641
36	WPL 242970
37	WPL SD843
38	WPL 2429722
39	WPL SD2227
40	WPL 2424942
41	WPL 2424132
41	WPL 2429732
