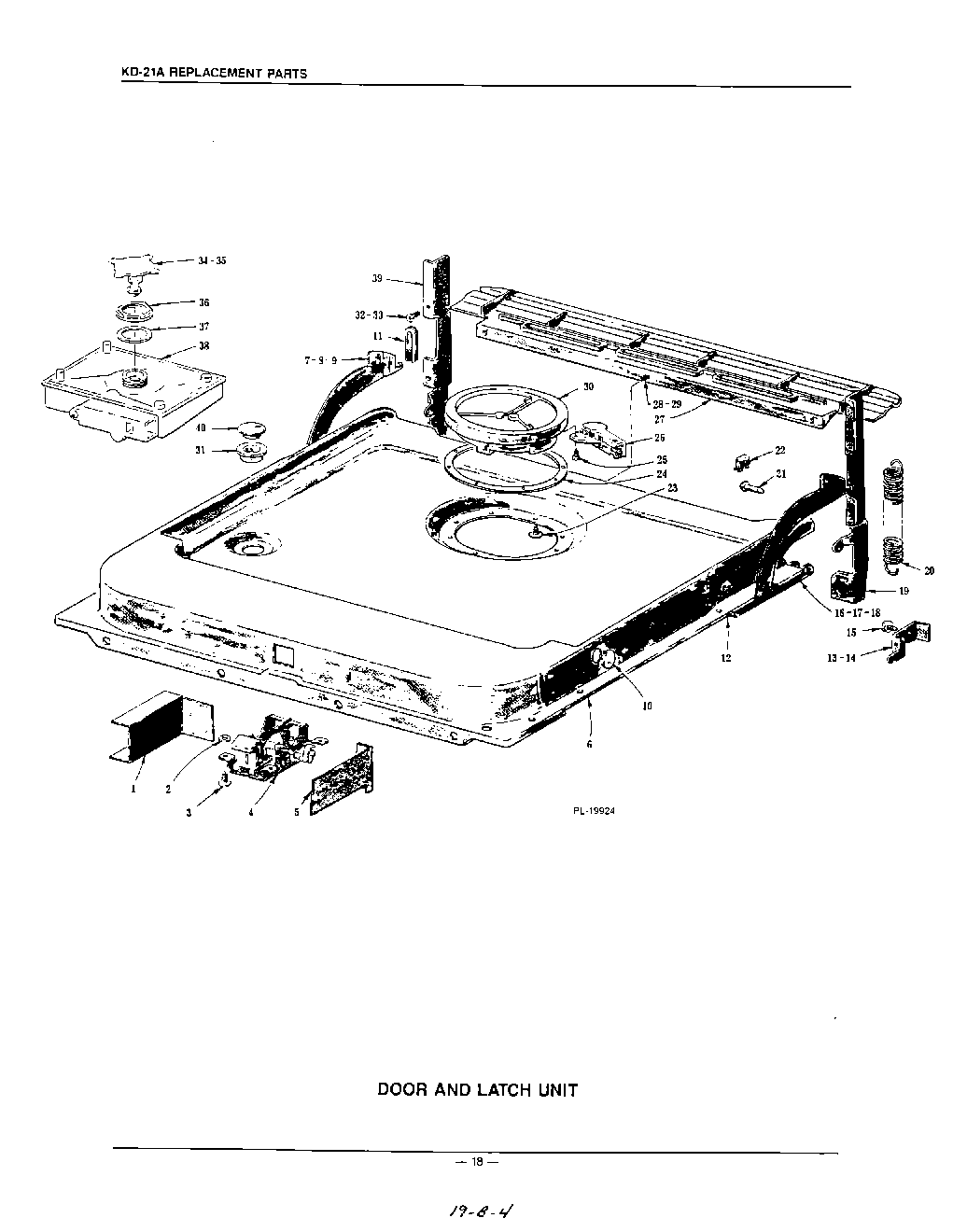

KPDC610S0 11 – DOOR AND LATCH

Products

Position	Product
1	Cover – Wiring Harness
2	Washer
3	Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd., Type AB
4	Latch Mechanism Assy
5	Insulation – Switch
6	Inner Door Assy
9	Bracket – L.H. Door Stop
10	Plug Button
11	Bearing – Door Stop Insert
12	Vapor Shield Kit
13	Bracket – R.H. Spring Mounting
14	Bracket – L.H. Spring Mounting (Not Shown)
15	Screw & Washer Assy. 10-32 x 3/8 Phil. Hex Hd., Type AB
16	Bracket – R.H. Door Stop
17	Mach. Screw 10-32 x 5/16 Phil. Truss Hd
19	Bracket – R.H. Hinge
20	Spring – Door Co-Balance
21	Pin – Hinge
22	Clip – Hinge Pin Retaining
23	Screw & Washer Assy
24	Gasket – Detergent Dispenser
25	WPL SD1311
26	Bimetal Assy
27	Baffle – Lower
28	Self-Tapping Screw 8-18 x 1/2 Phil. Truss Hd., Type AB
29	Cap
30	Detergent Dispenser & Gasket Assy. (115 V., 60 Hz.) (Incls. item 24)
31	Gasket – Plug Button
32	Washer (Rubber)
33	Mach. Screw 10-32 x 1/2 Phil. Truss Hd., CA Pt. “Taptite“
34	Fill Hole Plug Assy. (Incls. item 35)
35	Washer – Fill Hole Plug
36	Nut (Fill Air Gap)
37	Gasket – Rubber
38	WPL 241137
39	Divider, Complete
40	WPL 240162
40	WPL 242649
