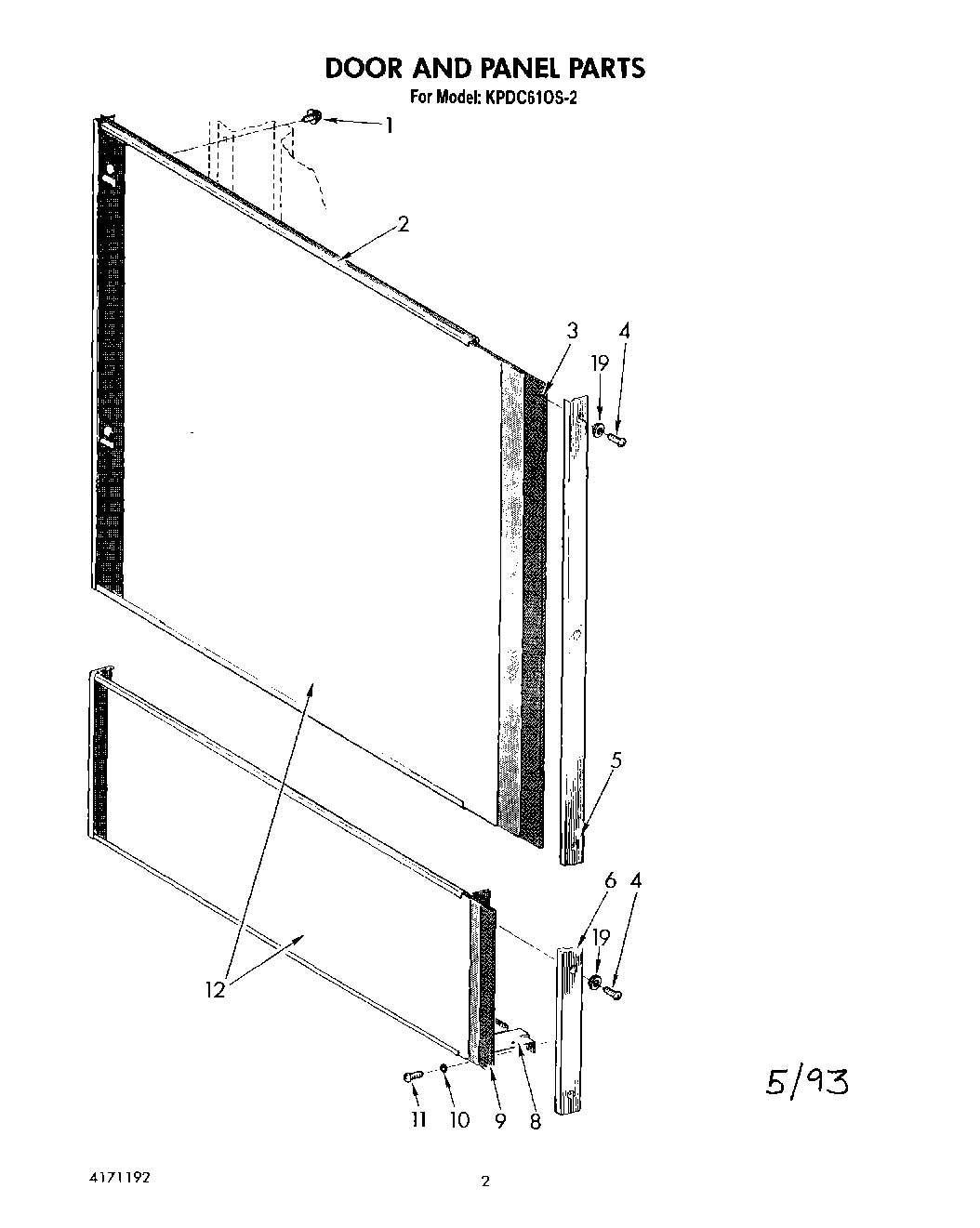

KPDC610S2 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	Screw
2	xUpper Mounting Panel Assembly
3	xxFiller (Upper Panel)
4	Screw, 6 X 1/4
5	Side Trim (Upper Panel)
6	Side Trim (Lower Panel)
8	xxLower Mounting Panel Assembly
9	xxFiller (Lower Panel)
10	Lock Washer No.10 Ext. Shake- proof
11	WP693304 Whirlpool Screw
12	Panel Insert Kits (Sand/Onyx Black (Optional))
12	Panel Insert Kits (Silver/Onyx Black (Optional))
12	Panel Insert Kits (Harvest Gold/Onyx Black)
12	Panel Insert Kits (Platinum/Toast (Optional))
12	Panel Insert Kits (Almond/White)
12	Panel Insert Kits (Fresh Avocado/Coffee (Optional))
12	Panel Insert Kits (Stainless Steal (Optional))
19	WPL 4164776
19	Grommet, Panel
