KPDI620T0 10 – FRAME AND TANK
Written by
in

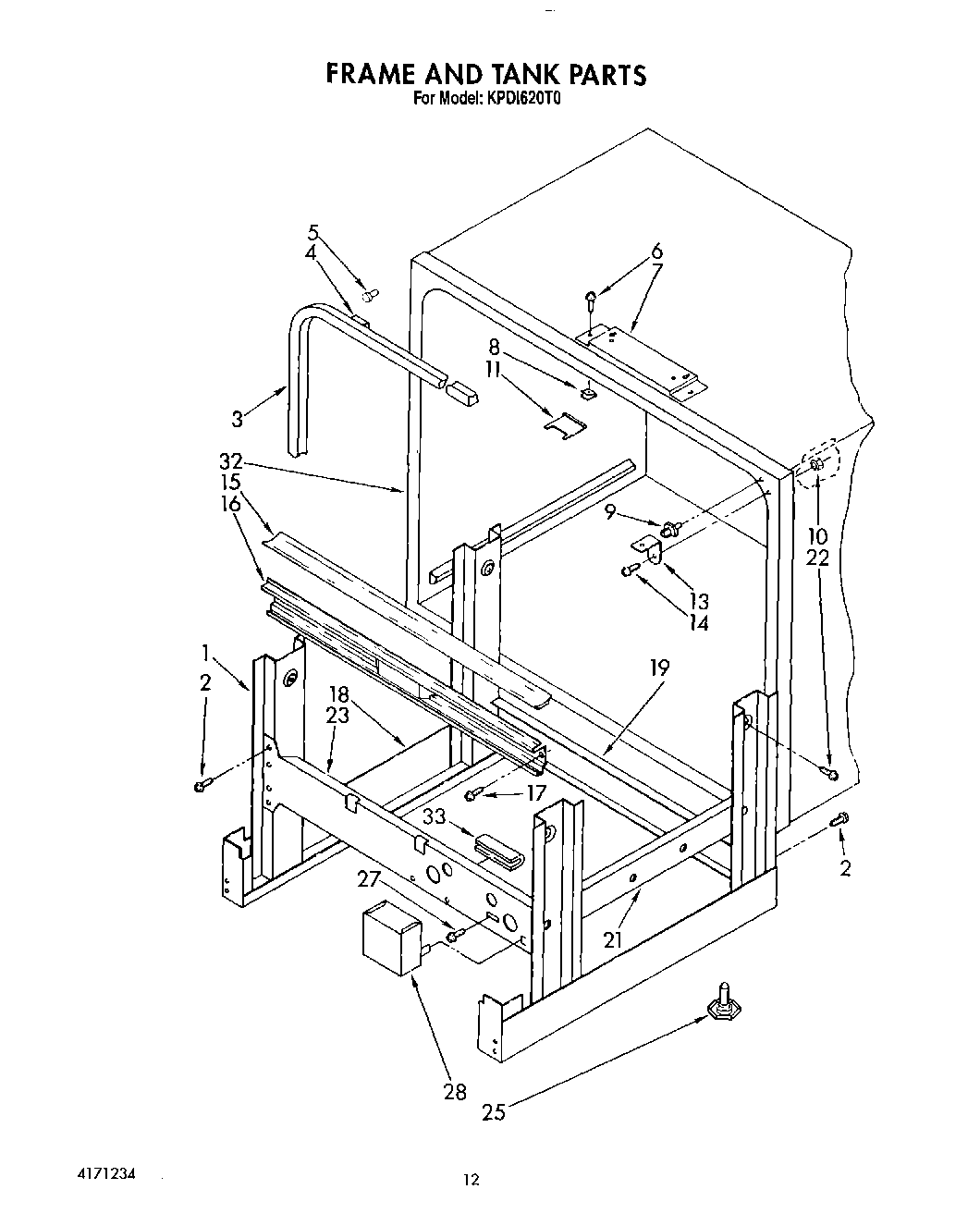

KPDI620T0 10 – FRAME AND TANK
Products
Position
Product
1
Short Frame Assembly (Includes Items 2, 18, 19, 21, & 23)
2
Screw, 10-16 X 5/8
3
Door Seal Assembly (Includes Item 4)
4
Clip, Seal
5
Bumper, Door
6
WP693304 Whirlpool Screw
7
Protector, Upper Water Inlet
8
Speed Nut
9
Actuator, Interlock Switch
10
Lock Nut
11
Keeper, Latch
13
WP9741251 Whirlpool Mounting Bracket
14
Trim, Tank (Screw, 10-16 X 1/2)
15
Channel, Evaporation
16
Support, Evaporation Channel
17
Screw, 10-32 X 1/2
18
Frame Assembly (L.H.)
19
Cross Frame, Rear
21
Frame Assembly (R.H.)
22
Screw (2)
23
Cross Frame, Front
25
Foot, Leveling (4)
27
Screw
28
SCREW
28
Enclosure, Elec. Supply
32
Tank (Serviced Complete with Frame)
33
Protector, Edge
←
