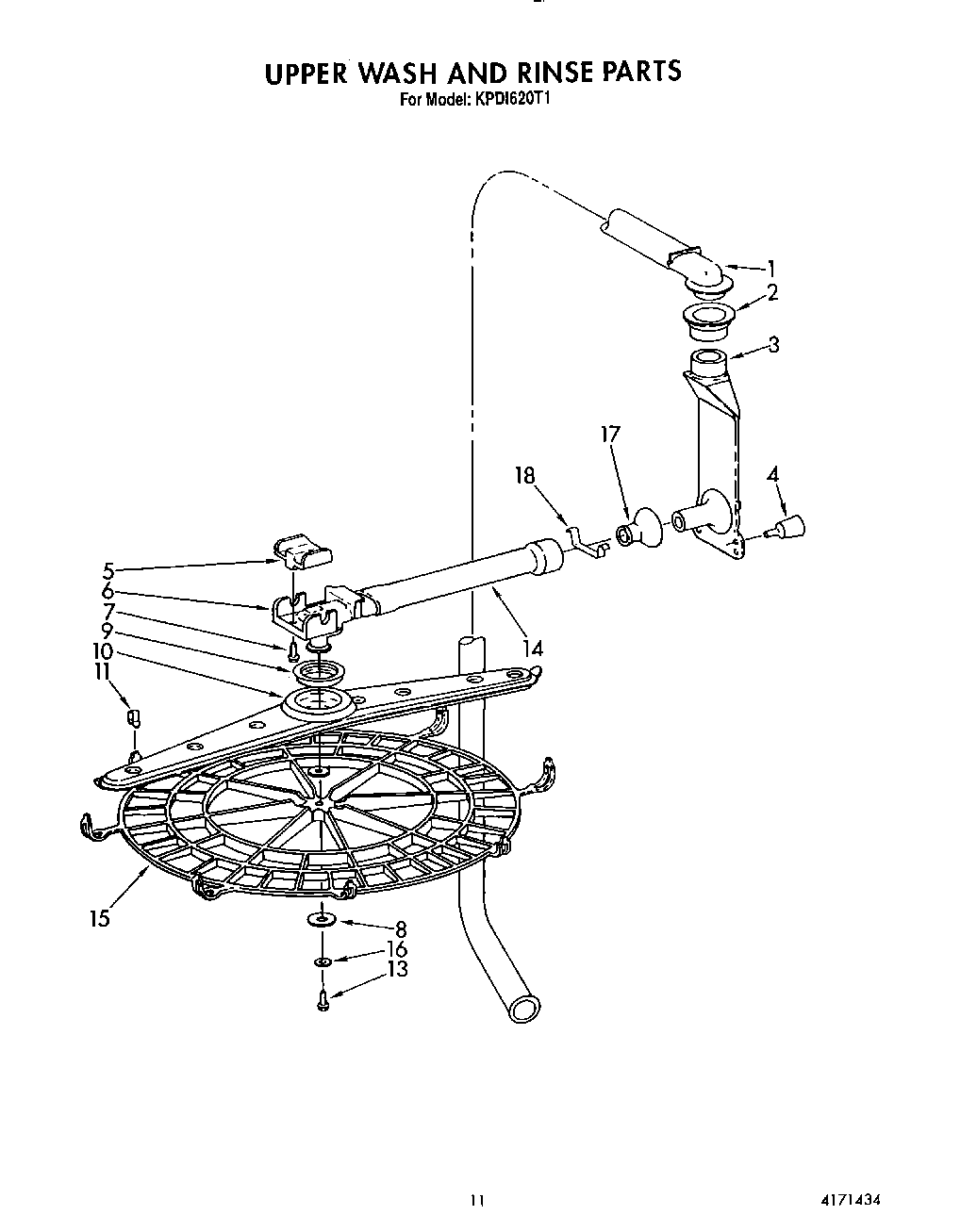

KPDI620T1 09 – UPPER WASH AND RINSE

Products

Position	Product
1	Tube & Connector Assembly
2	Connector, Vertical Conduit
3	Conduit, Vertical
4	Retainer, Conduit
5	Retainer, Manifold
6	Manifold, Upper Arm
8	Bearing, Arm (Bottom)
9	Bearing, Arm (Top)
10	Wash/Rinse Arm Assembly
11	Clip, Arm Guard
13	Screw
14	Tube (Manifold to Receiver)
15	Guard, Arm
16	Washer
17	4171566 Whirlpool Dishwasher Receiver
18	Support, Receiver
