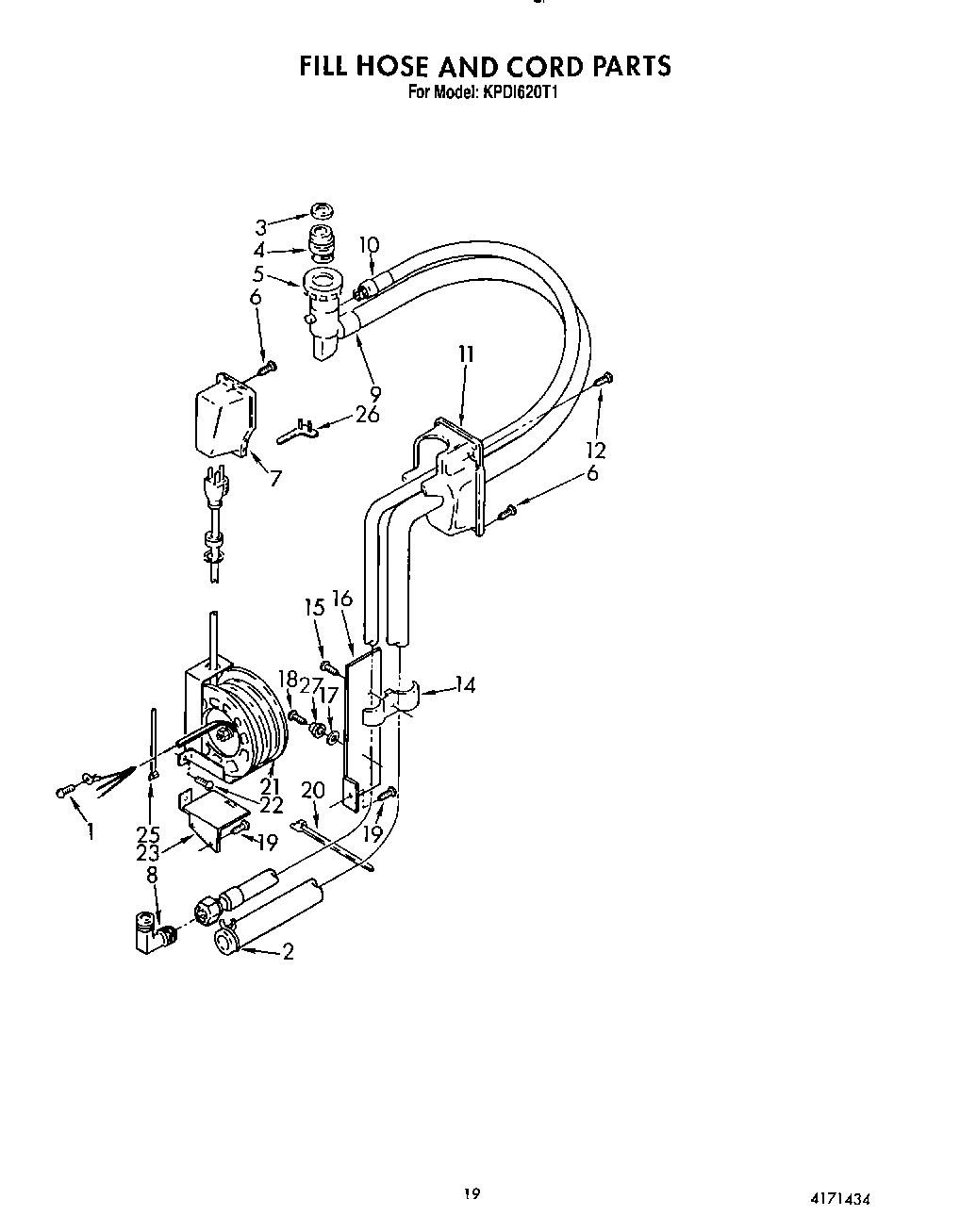

| 1 | Screw, 10-16 X 1/2 |
| 2 | Clamp, Hose |
| 3 | Washer Kit |
| 4 | WPW10254672 Whirlpool Faucet Adapter |
| 5 | Gasket, Seal |
| 6 | Screw, 6-20 X 3/8 (4) |
| 7 | Housing, Power Cord |
| 8 | Elbow, Tube Fitting |
| 9 | Coupler (Includes Item 5) |
| 10 | Fill Hose Assy. |
| 11 | Housing, Hose Coupler |
| 12 | Screw, 6-20 X 5/8 (2) |
| 14 | Clamp, Hose |
| 15 | WP4159387 Whirlpool Compactor Screw |
| 16 | Bracket, Hose Anchor |
| 17 | Washer, Trim |
| 18 | Screw, 6-20 x 3/8 |
| 19 | WP693304 Whirlpool Screw |
| 20 | Strap (Flexible Connector to Tank) |
| 21 | Cord Reel Assy. (Incls. Item 25) |
| 22 | Trim, Tank (Screw, 10-16 X 1/2) |
| 23 | Bracket, Cord Reel Mounting |
| 25 | Clamp, Hose |
| 26 | Guide, Locking |
| 27 | Spacer |
