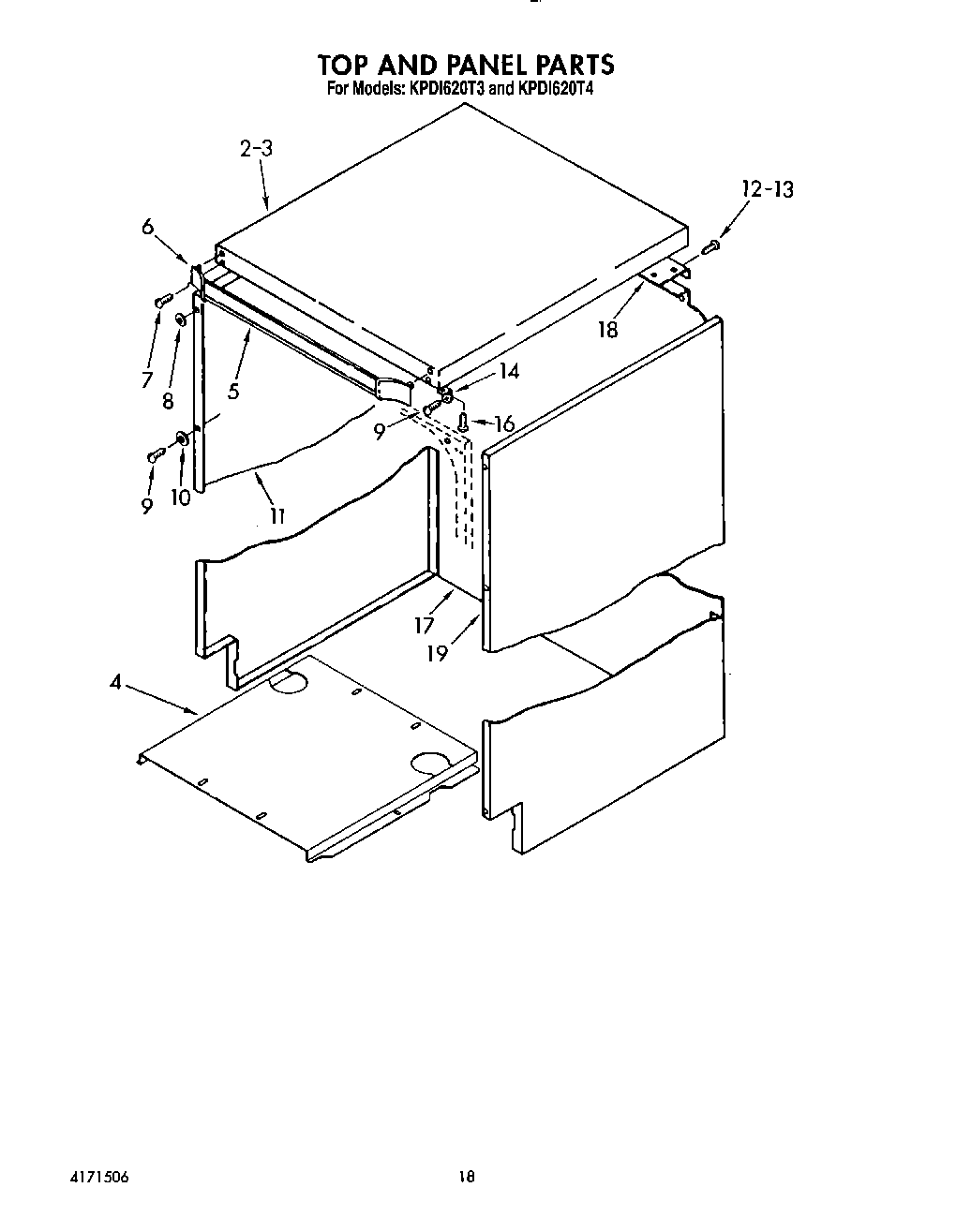

KPDI620T3 15 – TOP AND PANEL

Products

Position	Product
2	Wood Top Kit
3	Screw, 10-13 X 3/4
4	Plate, Sound Barrier
5	Bar, Guide
6	Endcap (Guide Bar) (L.H.)
6	Endcap (Guide Bar) (R.H.)
7	Screw, 10-13 X 3/4 (2)
8	Lock Washer No.10 Ext. Shake- proof
9	Trim, Tank (Screw, 10-16 X 1/2)
11	Side Panel (L.H.) (White)
11	Side Panel (L.H.) (Almond)
12	Screw, 10-16 X 5/16
13	Washer (2)
14	WP9741251 Whirlpool Mounting Bracket
16	Screw, 10-13 X 3/4 (2)
17	Panel, Rear (Almond)
17	Panel, Rear (White)
18	Bracket, Rear Panel Anchor
19	Side Panel (R.H.) (White)
19	Side Panel (R.H.) (Almond)
