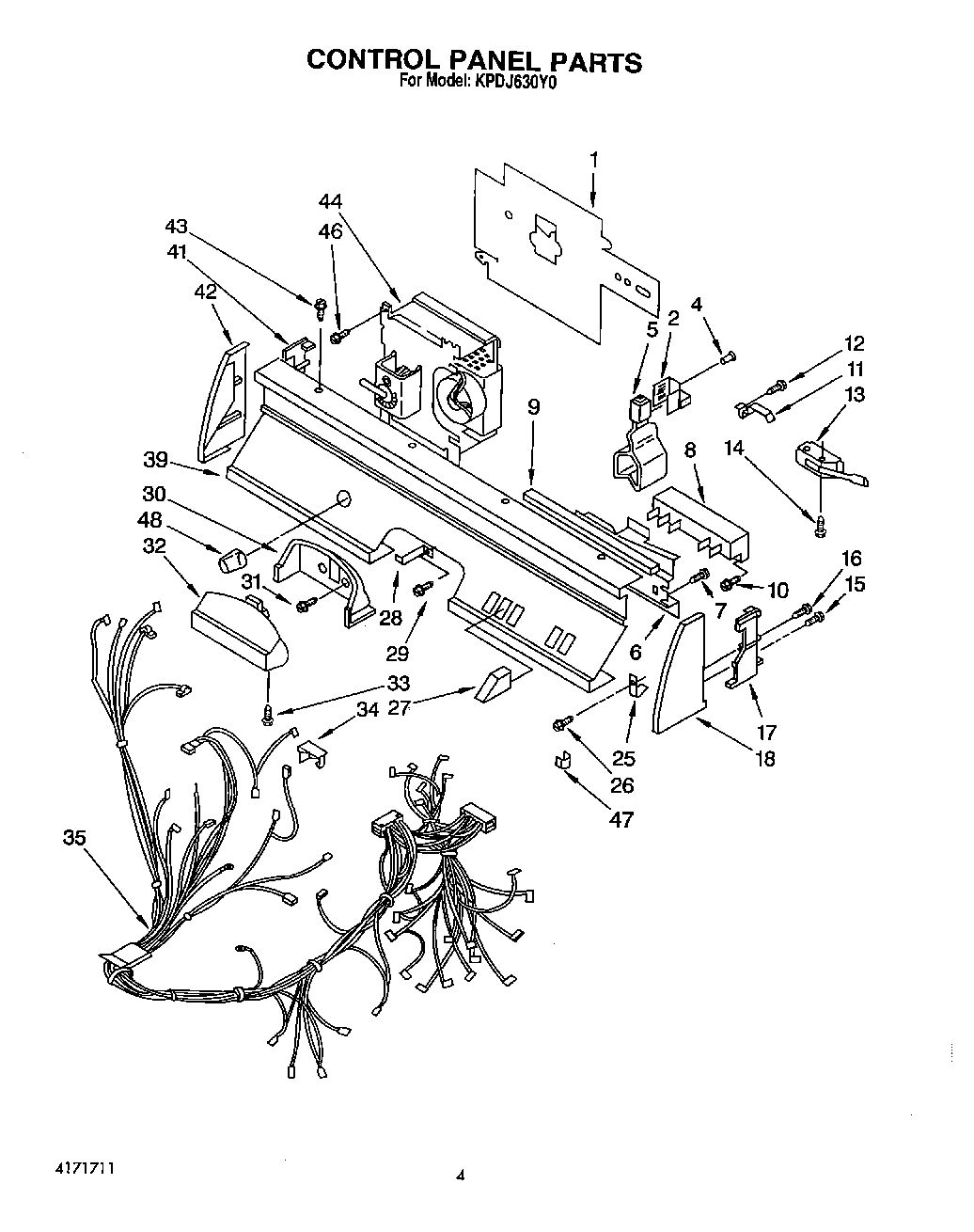

KPDJ630Y0 04 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	WPL LIT9741065
	Platinum (Uncut)
	WPL 72112
	350942 Whirlpool Spray Paint
	WPL 799832
	285006 Whirlpool Spray
	W10840471 Whirlpool Dishwasher Touch Up
	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
	Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation)
	WPL LIT9741254
	WPL LIT4171711
	WPL LIT9741183
	WPL LIT9741381
	Enamal, Toast (1 Qt. Uncut)
	Almond (Uncut)
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	350930 Whirlpool White Spray Paint
	Paint, Spray (13 Oz.) (Platinum)
	Toast
	Golden Harvest (Uncut)
	Golden Harvest
	72113 Whirlpool Touch-Up Paint
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
1	Insulator, Latch
2	Anchor, Cancel Spring
4	Rivet
5	Spring, Switch Cancel
6	Bracket, Program Switch
8	Switch, Program
9	Seal, Moisture
10	Screw, 6-32 X 3/8
11	Spring, Door Interlock
12	WP693304 Whirlpool Screw
13	Switch, Interlock
14	W11596033 Whirlpool Microwave Screw
15	Screw & Washer Assy
16	WP681249 Whirlpool Screw Assembly
17	Spacer, End Cap (R.H.)
18	End Cap (R.H.)
25	Clip, Grounding (Front Panel)
27	Button, Program Switch (7)
28	Bracket, Panel Reinforcement
29	Screw, 6-20 x 3/8
30	Trim, Handle
31	WP912618 Whirlpool Dishwasher Screw
32	Handle, Latch
33	Screw, 10-32 x 5/8
34	Clip, Harness Guide
35	Wiring Harness (Main)
35	WPL 4159349
39	Control Panel
41	Spacer, End Cap (L.H.)
42	End Cap (L.H.)
43	Screw, 6-20 x 3/8
44	Timer Assembly (115 V., 60 Hz.)
46	SCREW
47	Clip, Endcap (2)
48	Knob, Timer
