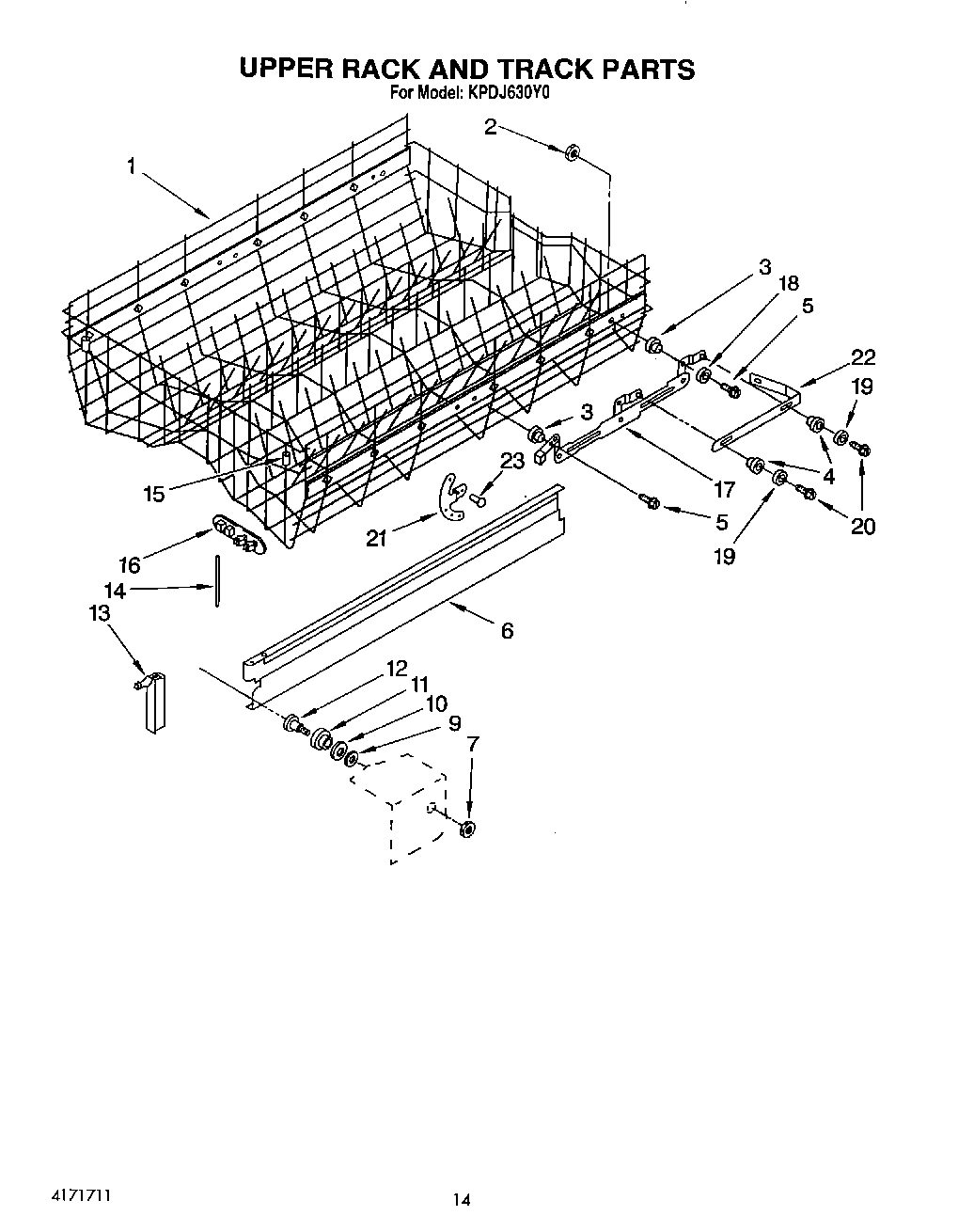

KPDJ630Y0 11 – UPPER RACK AND TRACK

Products

PositionProduct
1Upper Rack Assembly (Includes Items 2, 3, 5, 15 & 18)
2Nut, Roller
3Bearing & Spacer, Rack Roller
4Roller, Upper Rack Track
5Screw, 10-16 X 5/8
6Track, Rack
7Nut, Lock
9Washer
10Washer, Cup
11Roller, Rack Track
12Screw. Track Roller
13Bumper, Rack Track
14Stud, Bumper Retaining
15Bumper, Upper Rack
16Clip, Wash Arm Guard
17Track, Adjustable (R.H.)
17Track, Adjustable (L.H.)
18Washer
19Washer
20Screw, 8-32 X 1/4 (4)
21Rackstop (R.H.)
21Rackstop (L.H.)
22Lift, Receiver (R.H.)
22Lift, Receiver (L.H.)
23Rivet
