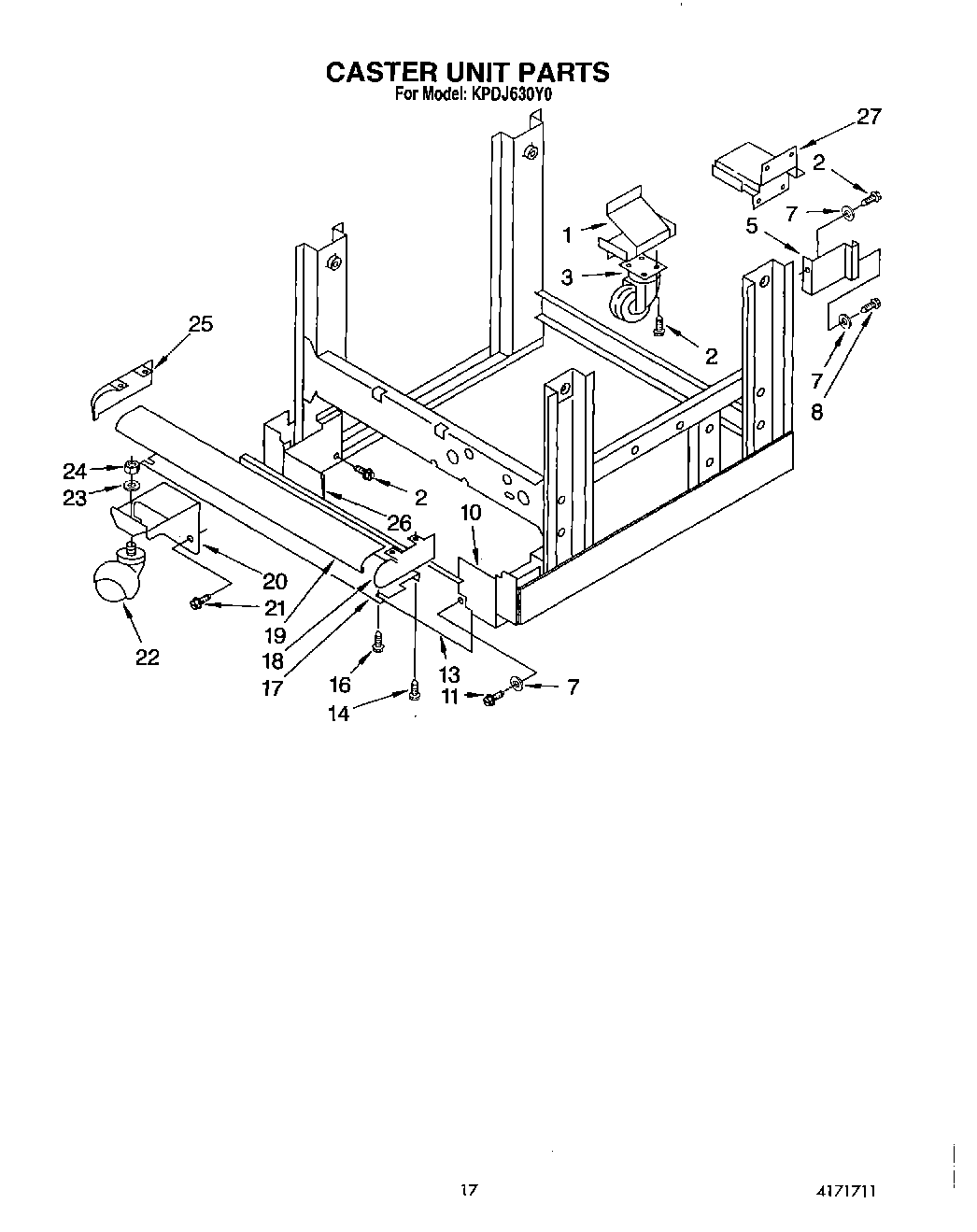

KPDJ630Y0 14 – CASTER UNIT

Products

Position	Product
1	Bracket, Rear Caster (L.H.)
2	Screw, 10-16 x 1/2
3	Caster, Rear (2)
5	Bracket, Side Panel Mounting (2)
7	Lock Washer No.10 Ext. Shake- proof
8	Screw, 10-16 X 5/16
10	Support, Front Caster Bracket (R.H.)
11	Screw, 10-16 x 3/8
13	Kickboard
14	Screw, 10-16 X 3/8
16	Screw, 6-20 X 3/8
17	Barrier, Front Panel
18	End Cap, Caster Trim (R.H.)
19	Trim, Front Caster
20	Bracket, Front Caster (2)
21	Screw, 10-16 X 1/2 (8)
22	Caster, Front (2)
23	Lockwasher (2)
24	Jam Nut (2)
25	End Cap, Caster Trim (L.H.)
26	Support, Front Caster Bracket (L.H.)
27	Bracket, Rear Caster (R.H.)
