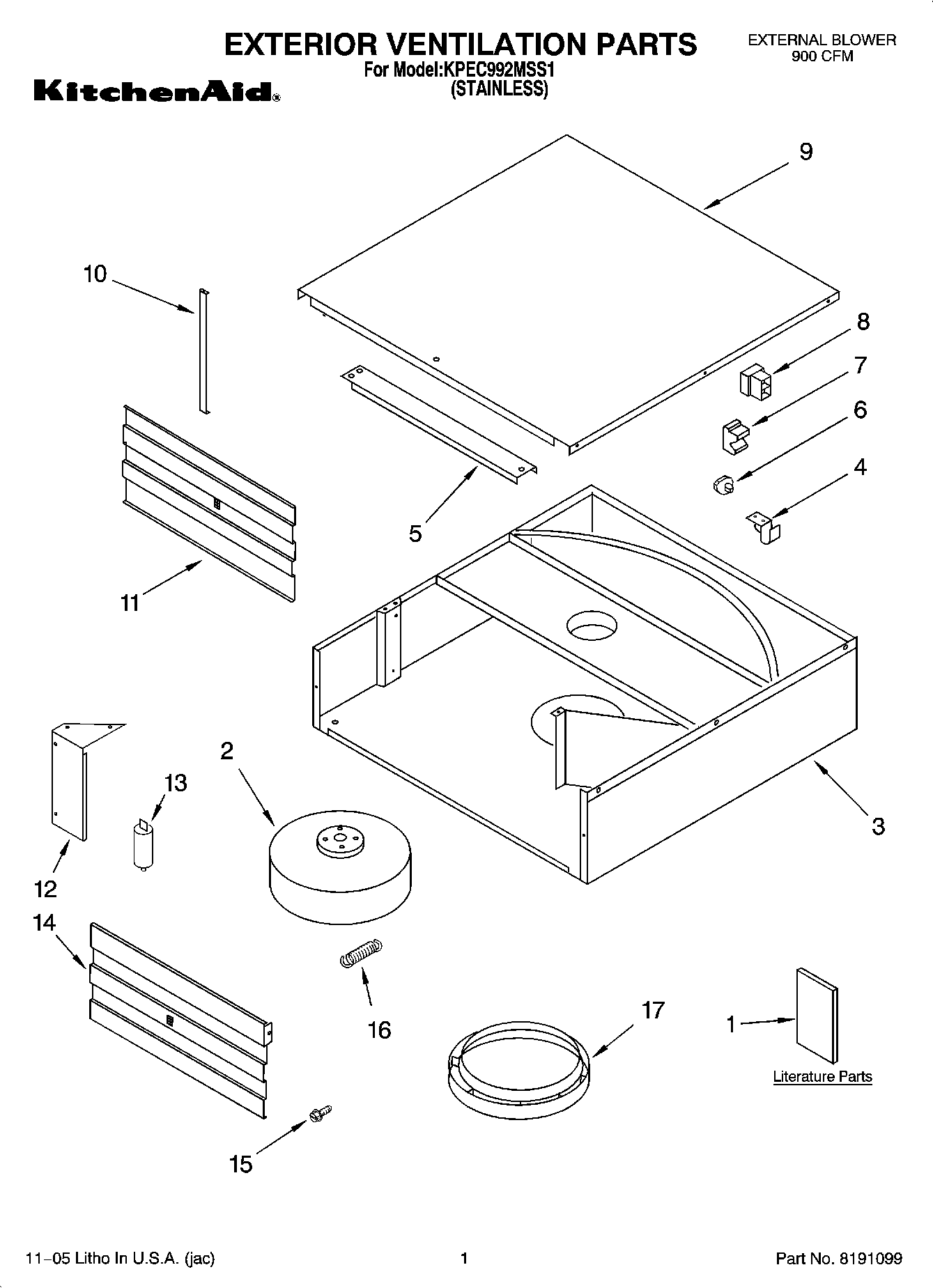

KPEC992MSS1 01 – EXTERIOR VENTILATION PARTS

Written by

Products

Position	Product
1	U & C Guide / Instructions, Installation
2	Motor, Fan
3	Housing, Fan
4	Clamp, Wire
5	Bracket, Top
6	Strain Relief
7	Connector, Female
8	Connector, Male
9	Cover, Top
10	Support, Side
11	Damper, Hood
12	Cover, Wire
13	Capacitor
14	Grill, Vent
15	Pin
16	Spring
17	Duct, Air
