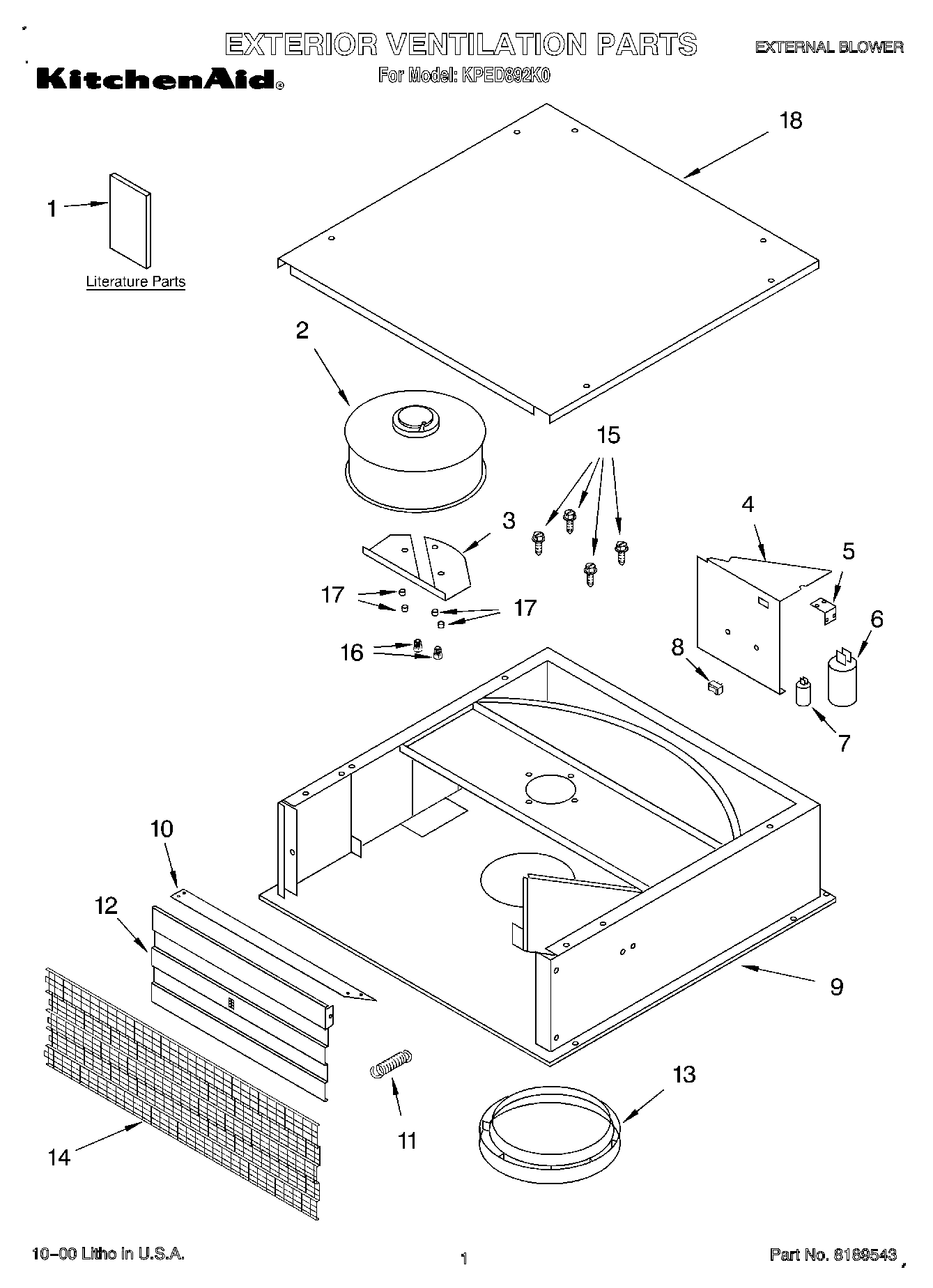

KPED892K0 01 – SECTION

Written by

Products

Position	Product
1	LITERATURE PARTS (Instructions, Installation)
2	Motor, Fan
3	Support
4	Shield
5	Bracket, Ground
6	Capacitor
7	Capacitor, 7mf
8	Switch
9	Housing, Blower
10	Bracket, Blower
11	Spring
12	Damper, Hood
13	Duct, Air
14	Grill, Vent
15	Screw
16	Wire Nut
17	Spacer
18	Cover
