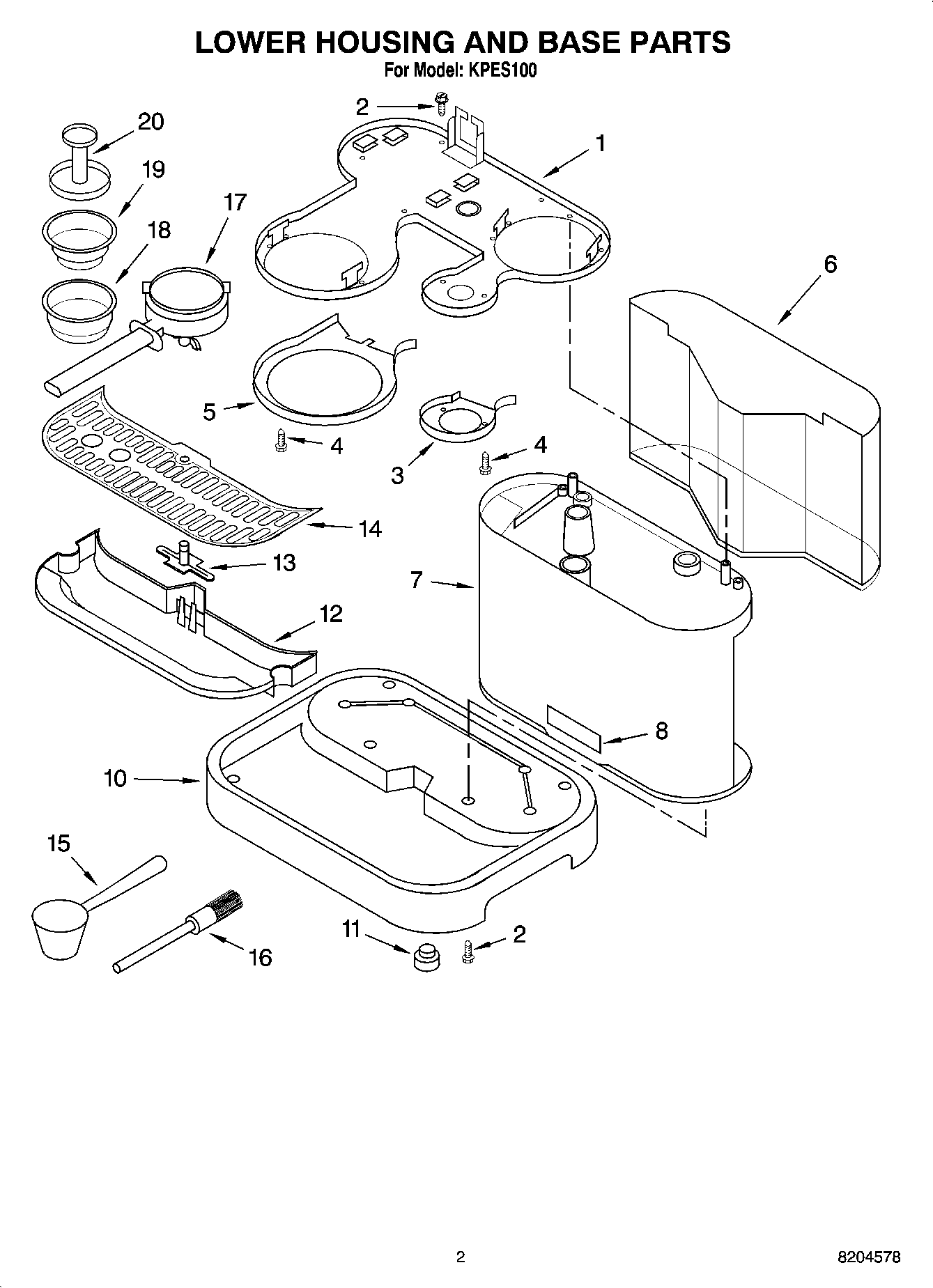

KPES100 02 – LOWER HOUSING AND BASE PARTS

KPES100 02 – LOWER HOUSING AND BASE PARTS

Written by

in

KPES100 02 – LOWER HOUSING AND BASE PARTS

Products

PositionProduct
1Plate, Cabinet
2Screw
3Trim, Steam Pod
4Screw
5Trim, Coffee
6Tank, Water
7Body, Cabinet (Pearl Metallic)
7Body, Cabinet (Empire Red)
8Nameplate
10Base Assembly (Includes Feet)
11Foot
12Tray, Drip
13Floater, Red
14Grid
15Scoop, Coffee
16Brush, Cleaning
17Holder, Filter
18Filter, 2-Cup
19Filter, 1-Cup
20Tamper, Coffee
