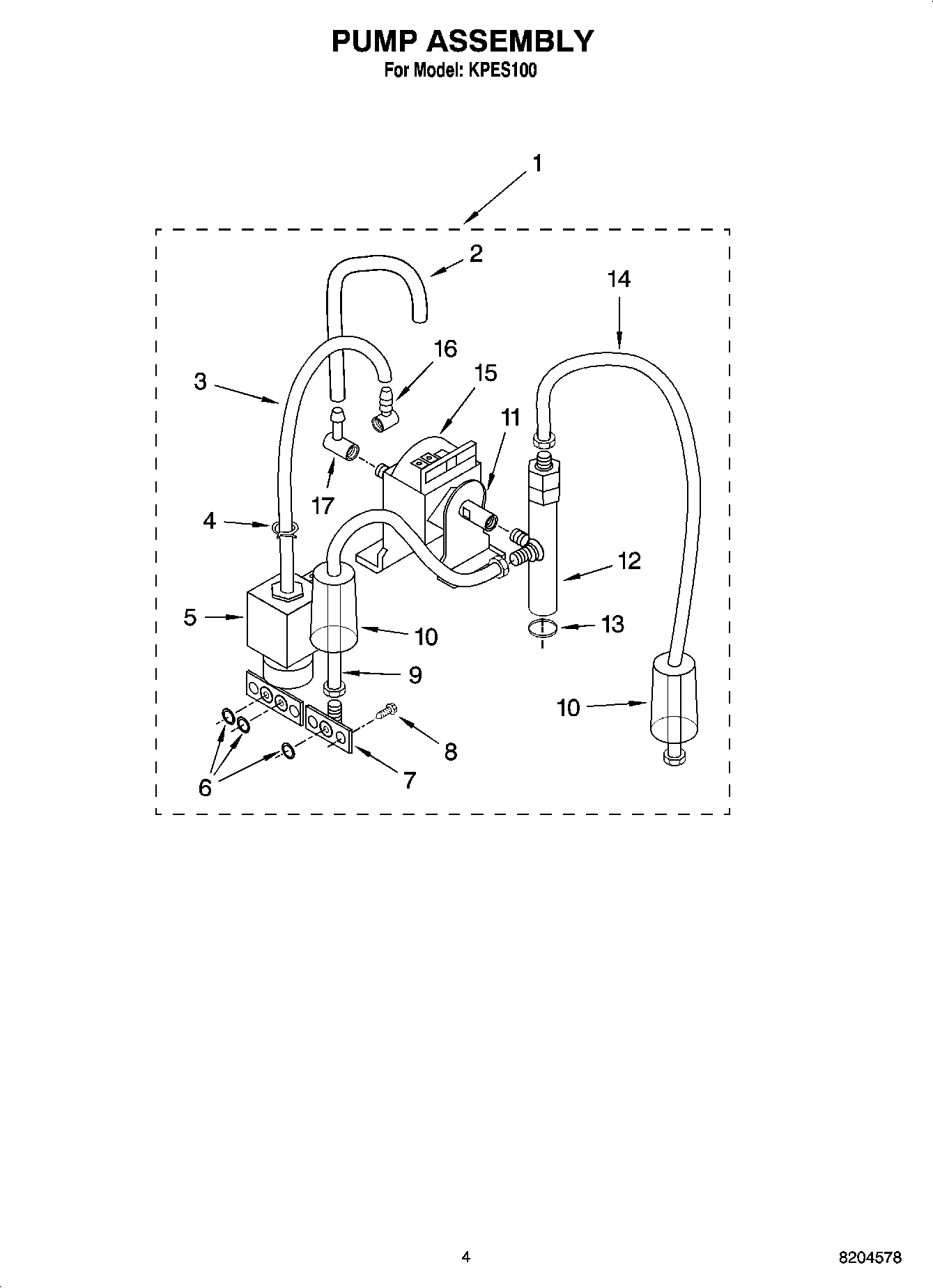

KPES100 04 – PUMP ASSEMBLY

Products

Position	Product
1	Pump Assembly
2	Pipe, Suction
3	Pipe SL
4	Clamp, Hose
5	Valve, Solenoid (3-Way)
6	Gasket
7	Fitting, Input
8	Screw
9	Pipe Assembly
10	Protector, Pipe
11	Support, Pump (Eaton)
12	Valve Assembly
13	Gasket, Valve
14	Pipe Assembly
15	Pump w/Thermostat
16	Fitting, ``T``
17	Connector, Pump Suction
