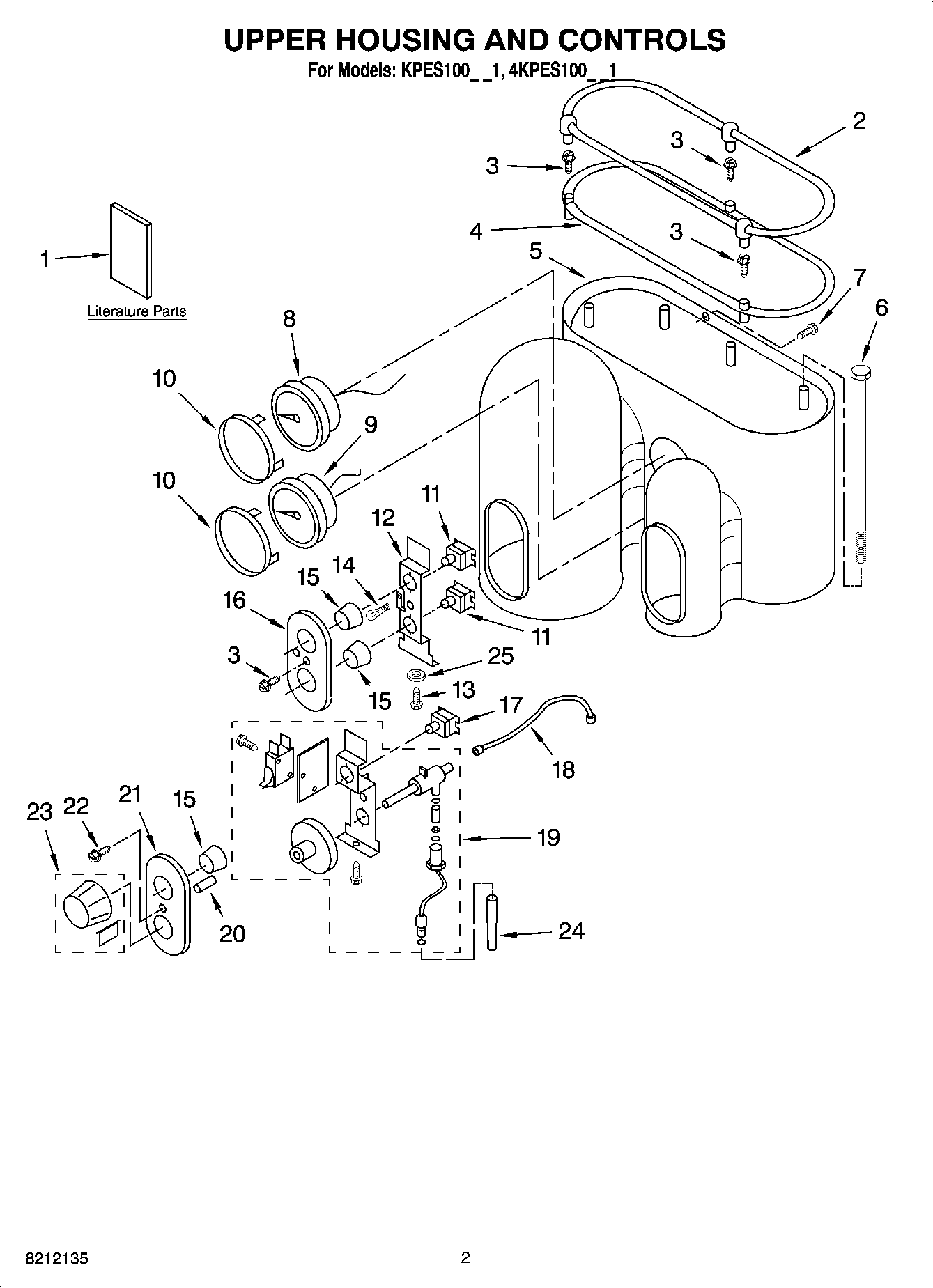

KPES100NP1 01 – UPPER HOUSING AND CONTROLSadmin2025-04-26T12:30:27+00:00KPES100NP1 01 – UPPER HOUSING AND CONTROLS
Products
| Position | Product |
|---|
| 1 | Guide, Use & Care |
| 1 | Service Manual |
| 1 | Wiring Diagram |
| 1 | Repair Parts List |
| 2 | Cup Guard Assembly |
| 3 | Screw |
| 4 | Lid, Tank |
| 5 | Cabinet - Upper (Pearl Metallic) |
| 5 | Cabinet - Upper (Empire Red) |
| 5 | Cabinet - Upper (Nickel Pearl) |
| 6 | Rod |
| 7 | 4393836 Whirlpool Microwave Screw |
| 8 | Gauge, Coffee |
| 9 | Gauge, Steam |
| 10 | Ring, Trim Gauge |
| 11 | Switch - On/Off |
| 12 | Bracket, Switch |
| 13 | WPW10253196 Whirlpool Screw |
| 14 | Light & Wire Assy |
| 15 | Button, Switch |
| 16 | Bezel, Coffee |
| 17 | Switch |
| 18 | Pipe Assembly |
| 19 | Steam Group Assy |
| 20 | Spacer, Knob |
| 21 | Bezel, Steam |
| 22 | Screw |
| 23 | Knob & Clip Assy |
| 24 | Tip, Frothing |
| 25 | Washer |
