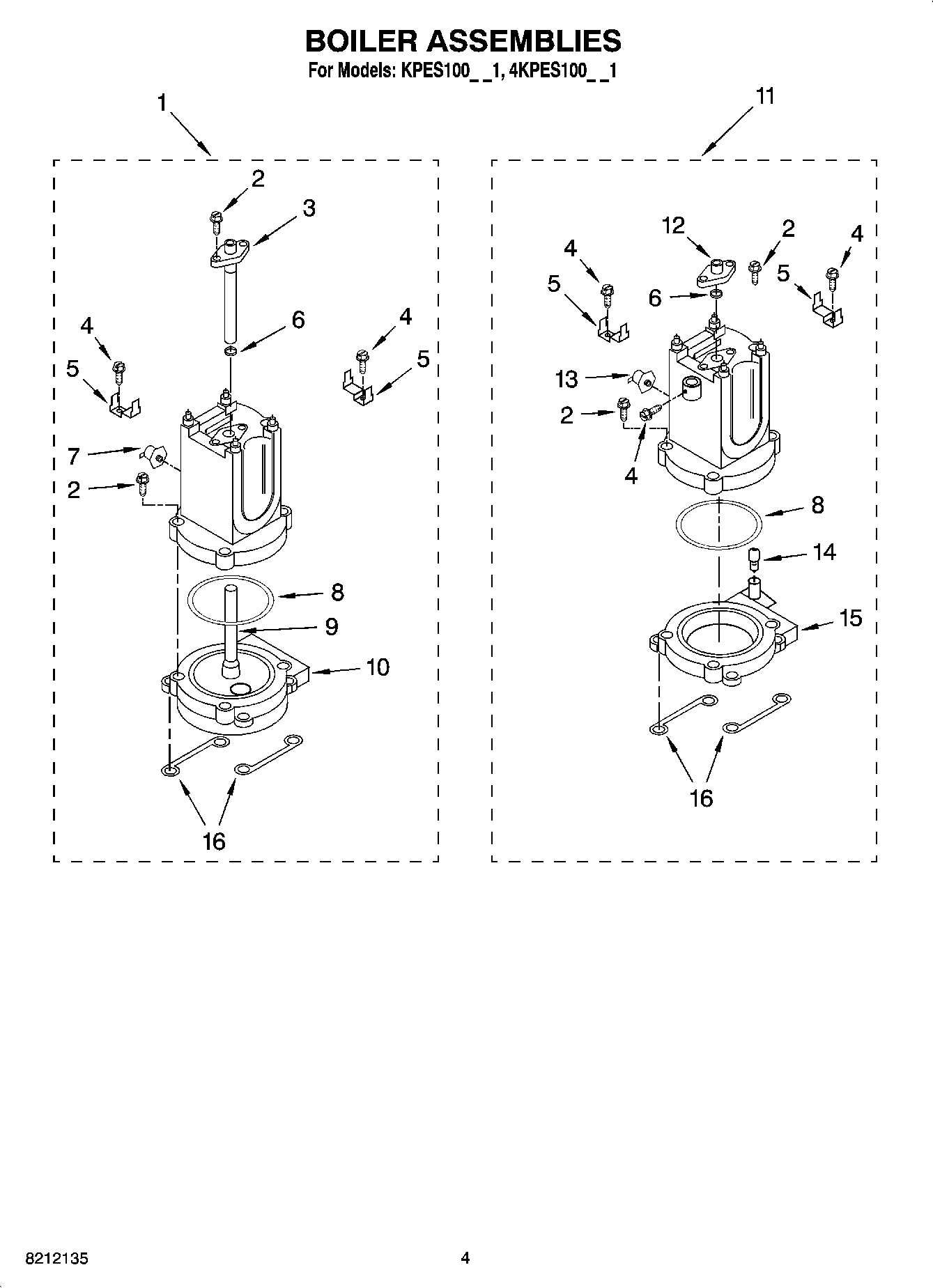

KPES100NP1 03 – BOILER ASSEMBLIESadmin2025-04-26T12:29:18+00:00KPES100NP1 03 – BOILER ASSEMBLIES
Products
| Position | Product |
|---|
| 1 | Boiler Coffee |
| 2 | Screw |
| 3 | Support, Gauge Sensor |
| 4 | Screw |
| 5 | Clamp, Thermo Fuse |
| 6 | Gasket |
| 7 | Thermostat, Coffee |
| 8 | Gasket |
| 9 | Pipe, Copper |
| 10 | Body, Unit |
| 11 | Shell, Tank Lower |
| 12 | Body, Steam Pipe |
| 13 | Thermostat, Steam |
| 14 | Fitting |
| 15 | Flange, Steam Boiler |
| 16 | Gasket, Insulating |
