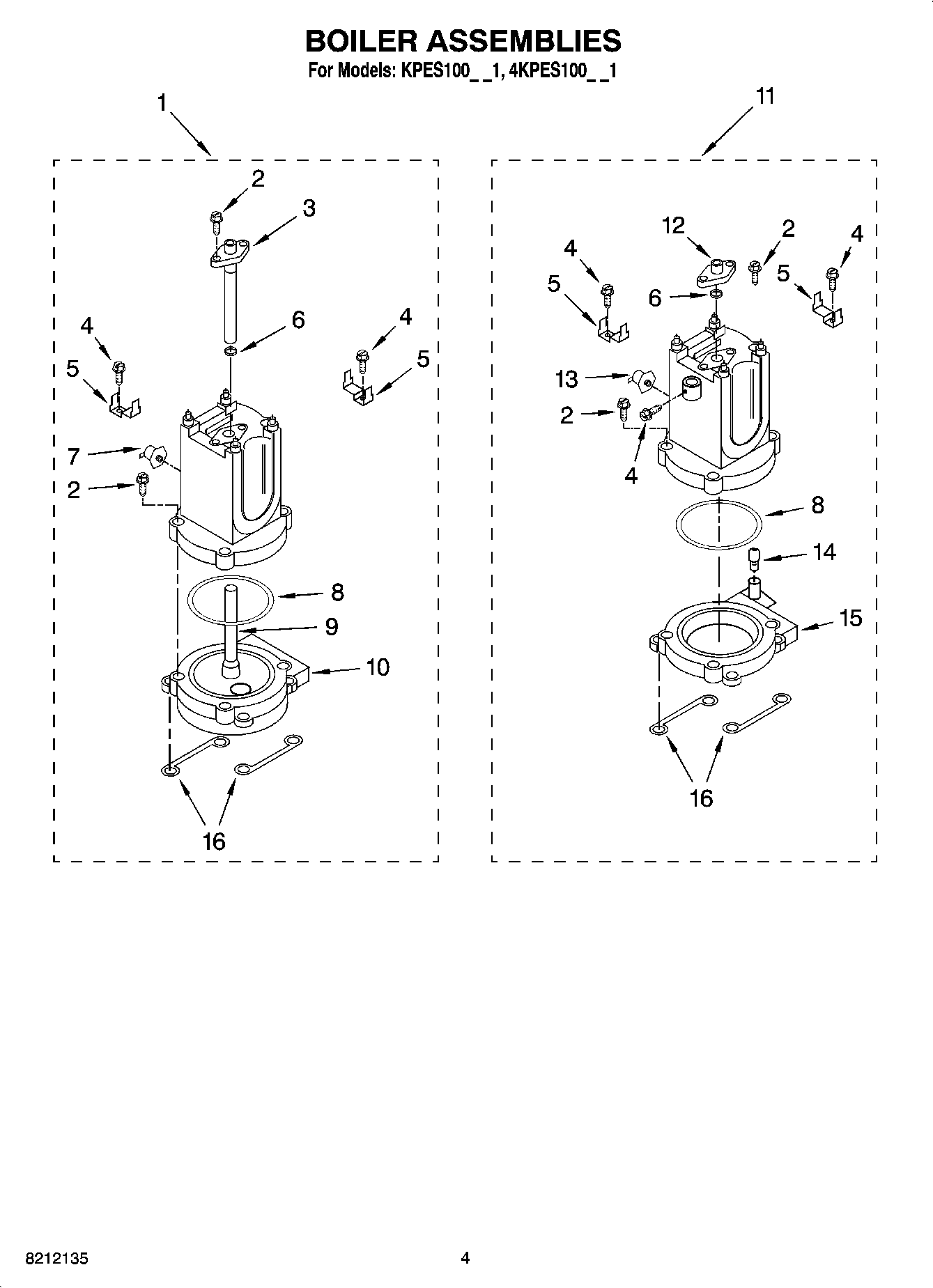

KPES100PM1 03 – BOILER ASSEMBLIES

Products

PositionProduct
1Boiler Coffee
2Screw
3Support, Gauge Sensor
4Screw
5Clamp, Thermo Fuse
6Gasket
7Thermostat, Coffee
8Gasket
9Pipe, Copper
10Body, Unit
11Shell, Tank Lower
12Body, Steam Pipe
13Thermostat, Steam
14Fitting
15Flange, Steam Boiler
16Gasket, Insulating
