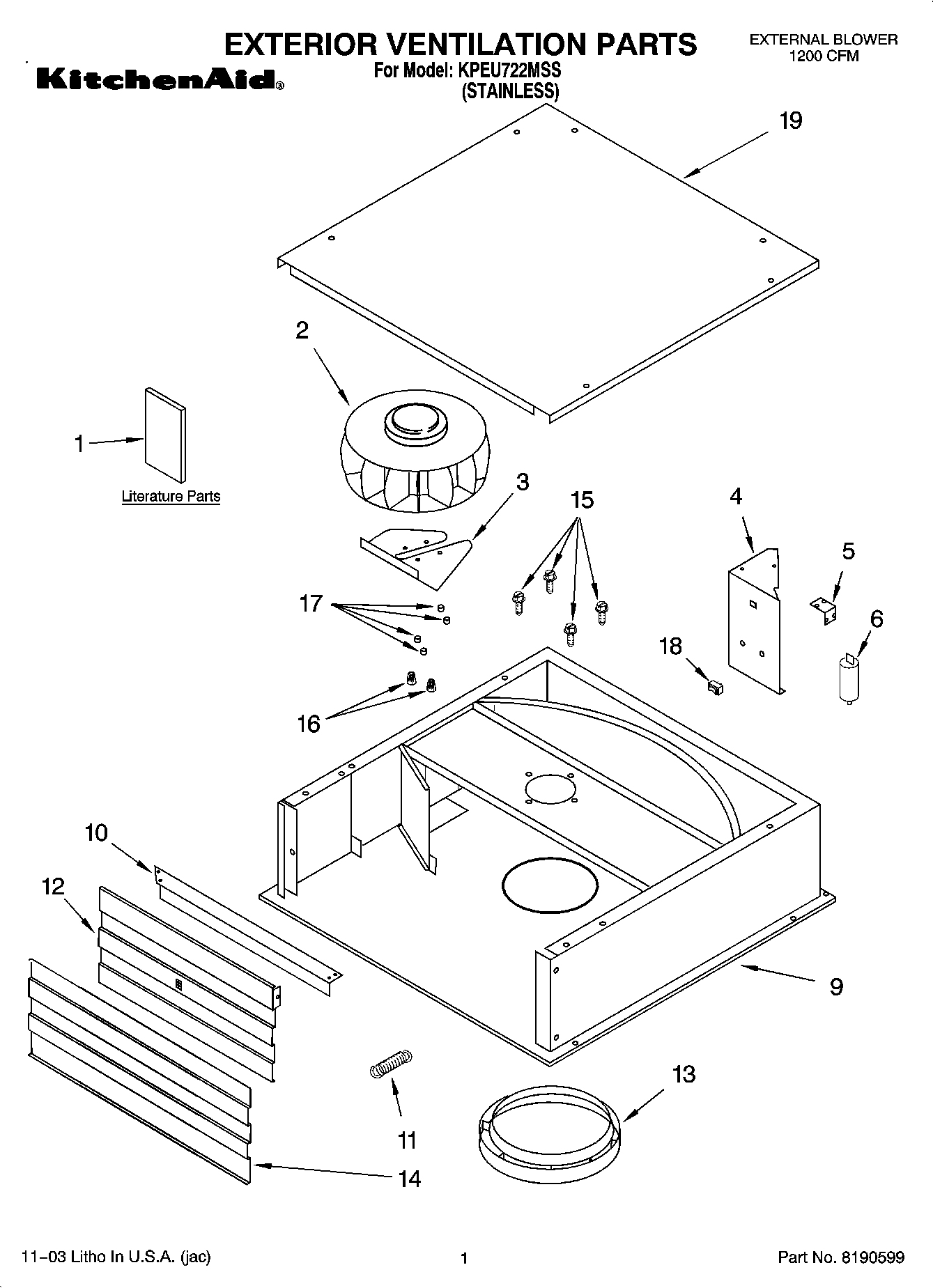

KPEU722MSS 01 – EXTERIOR VENTILATION PARTS

Products

Position	Product
1	Literature Parts (U & C Guide / Instructions, Installation)
2	Motor, Fan
3	Support
4	Shield
5	Bracket, Ground
6	Capacitor
9	Housing, Blower
10	Bracket, Blower
11	Spring
12	Damper, Hood
13	Duct, Air
14	Grill, Vent
15	Screw
16	Wire Nut
17	Spacer
18	Switch
19	Cover
