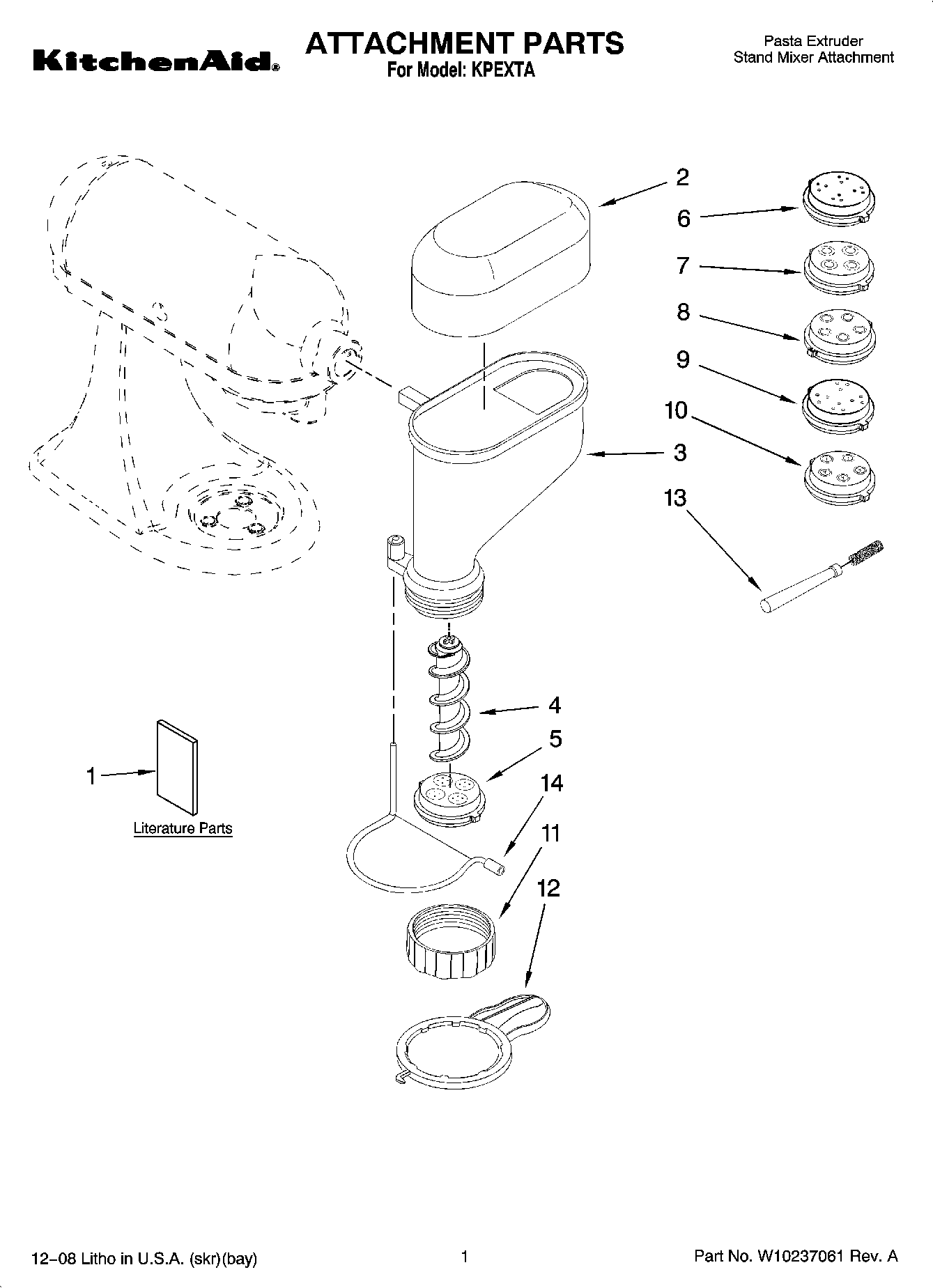

KPEXTA 01 – ATTACHMENT PARTS

Products

Position	Product
	PASTA EXTRUDER WITH 6 DISCS
1	Use & Care Guide
1	Repair Parts List
2	Case, Storage
3	Housing Assembly
4	Auger
5	W10236404 Whirlpool Pasta Plate
6	W10236405 Whirlpool Pasta Plate
7	Plate, Macaroni (Large)
8	Plate, Rigatoni
9	Plate, Bucatini
10	Plate, Fusilli
11	Ring, Pasta
12	Tool, Combo
13	Brush, Cleaning
14	Cutter Assembly
