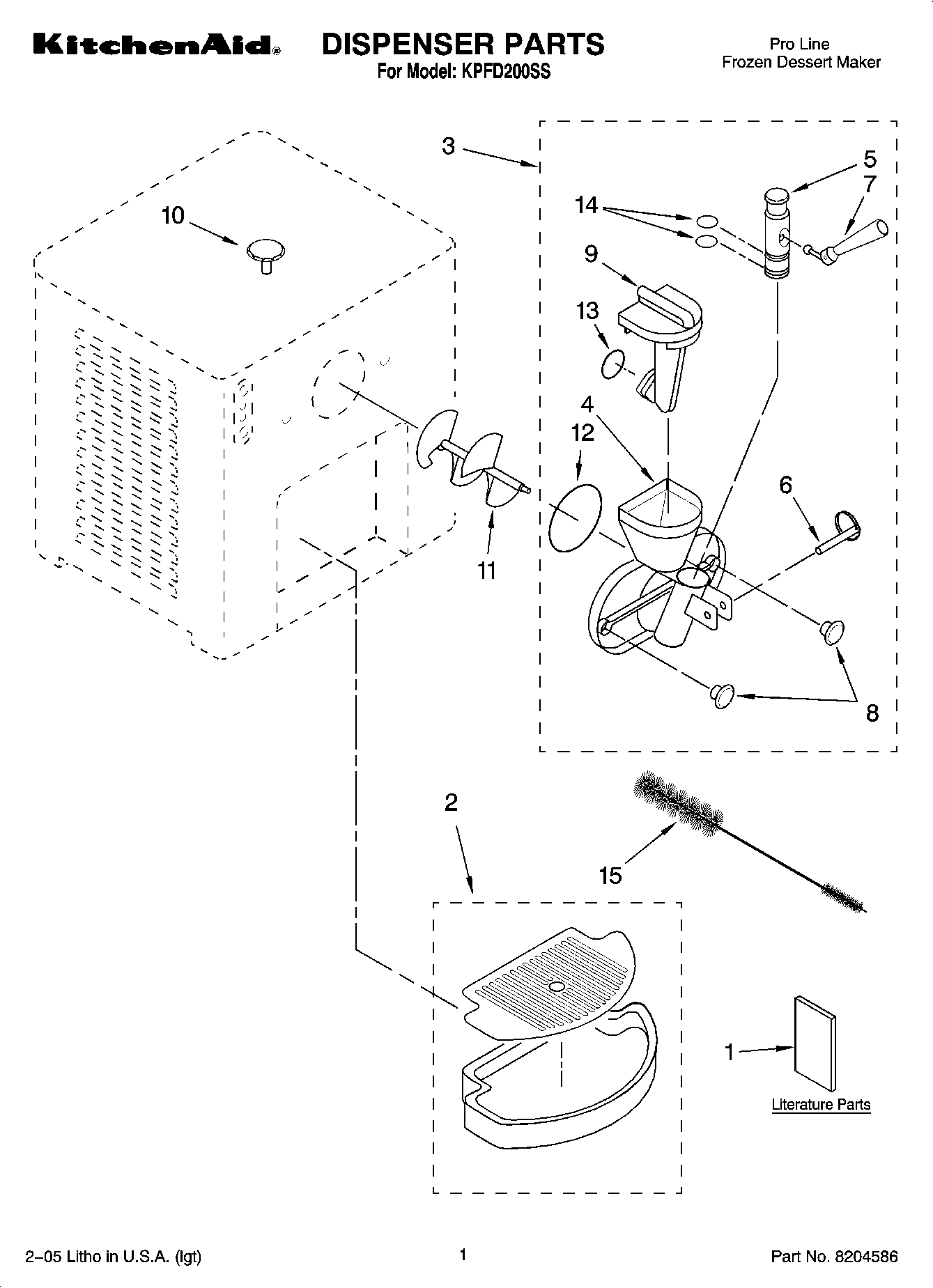

KPFD200SS 01 – DISPENSER PARTSadmin2025-04-26T12:31:06+00:00KPFD200SS 01 – DISPENSER PARTS
Products
| Position | Product |
|---|
| 1 | Repair Parts List (8) |
| 1 | Guide, Use & Care |
| 1 | Recipe Book |
| 2 | Drip Tray Assy |
| 3 | Dispenser Assy |
| 4 | Funnel, Ingredient |
| 5 | Piston, Dispenser |
| 6 | Ring, Handle Locking |
| 7 | Handle, Dispenser |
| 8 | Knob, Faceplate |
| 9 | Pusher |
| 10 | Cap, Vent |
| 11 | Dasher, Mixing |
| 12 | O-Ring Assembly Dispenser |
| 13 | O-Ring Assembly Pusher |
| 14 | O-Ring, Dispenser Piston |
| 15 | Brush, Cleaning |
