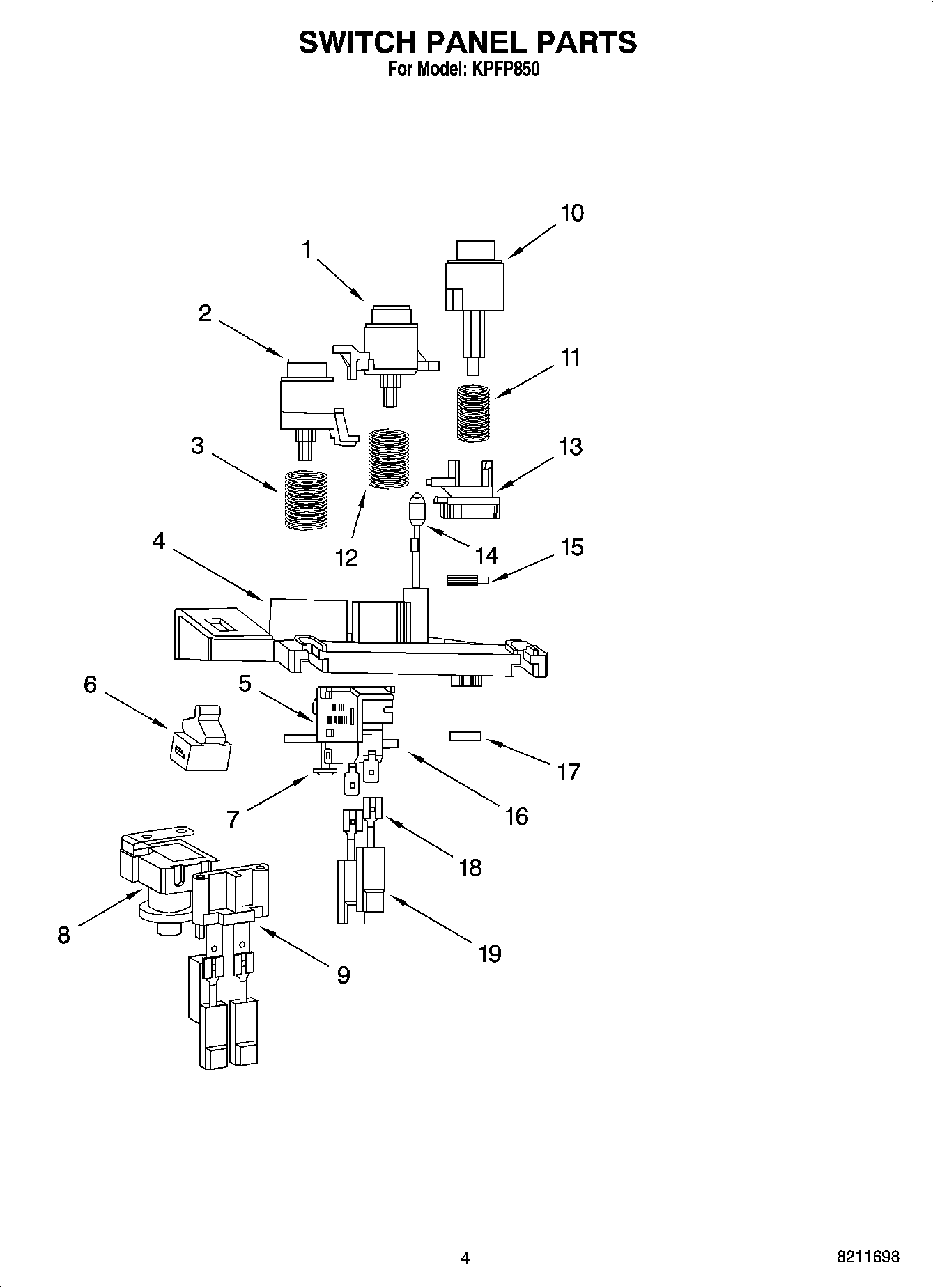

KPFP850 04 – SWITCH PANEL PARTSadmin2025-04-26T12:29:13+00:00KPFP850 04 – SWITCH PANEL PARTS
Products
| Position | Product |
|---|
| 1 | Button, On |
| 2 | Button, Pulse |
| 3 | Spring, Button Pulse |
| 4 | Shelf, Button |
| 5 | Mount, Switch |
| 6 | Not Serviced |
| 7 | Screw, Clamp |
| 8 | Relay |
| 9 | Adaptor |
| 10 | Button, Off |
| 11 | Spring, Button Off |
| 12 | Spring, Button On |
| 13 | Button, Off |
| 14 | Lamp, Neon |
| 15 | Spring, Torsion Button Off |
| 16 | Switch, Micro |
| 17 | Mount, Button |
| 18 | Receptacle |
| 19 | Insulator, Terminal |
