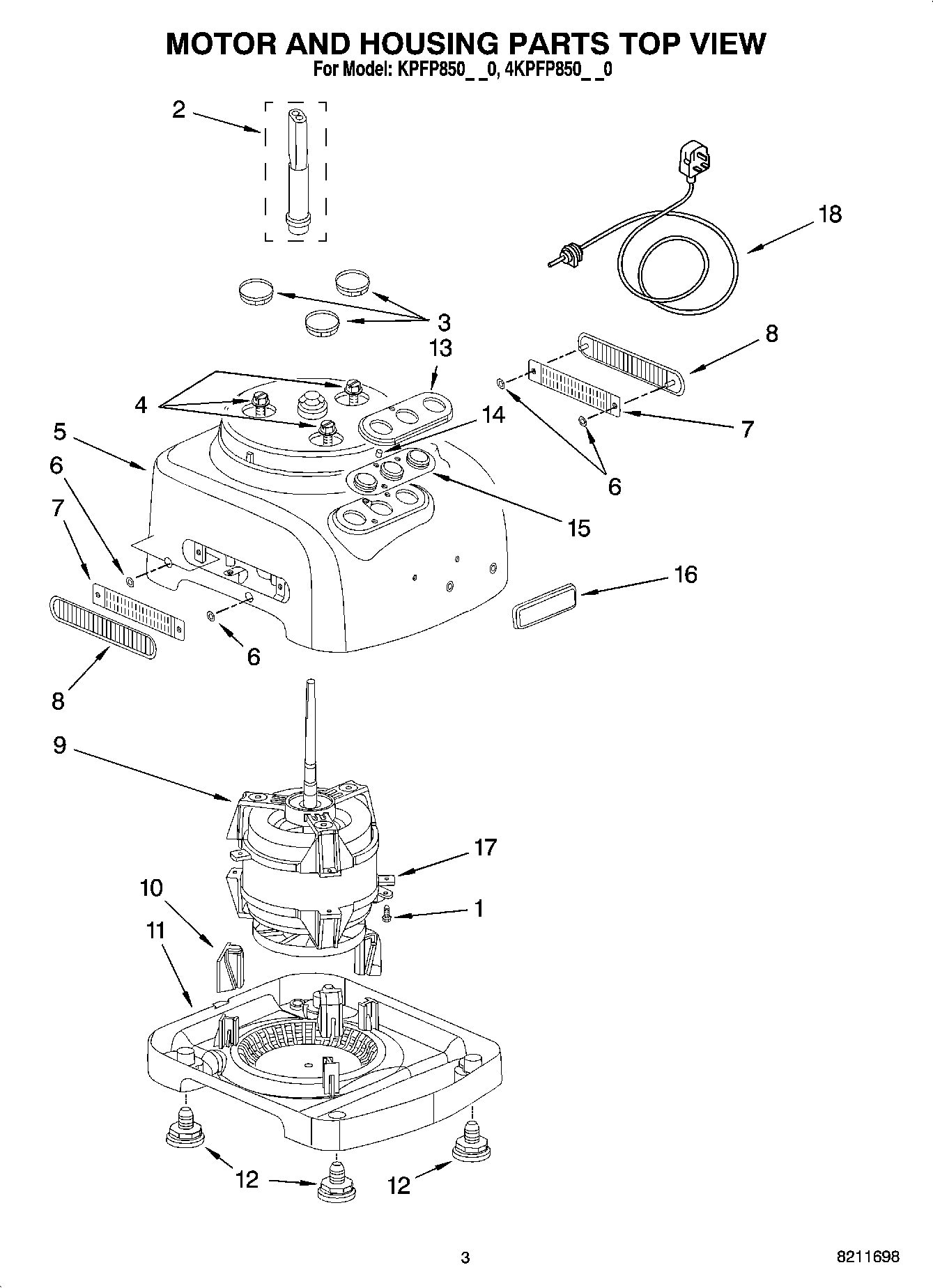

KPFP850OB0 02 – MOTOR AND HOUSING PARTS TOP VIEW

Products

Position	Product
1	Screw
2	Sleeve, Motor Shaft
3	Cover, Screw
4	Screw, Motor Locking
5	Housing, Motor
5	Housing (Onyx Black)
6	Nut, Self-Locking
7	Guard, Vent
8	Vent
9	Motor and Bracket
10	Grommet, Motor
11	Base, Housing
12	Foot, Pedestal
13	Bezel, Control
14	Lens, Power Indicator
15	Overlay
16	Nameplate
17	Clamp, Cable
18	Cord, Power
