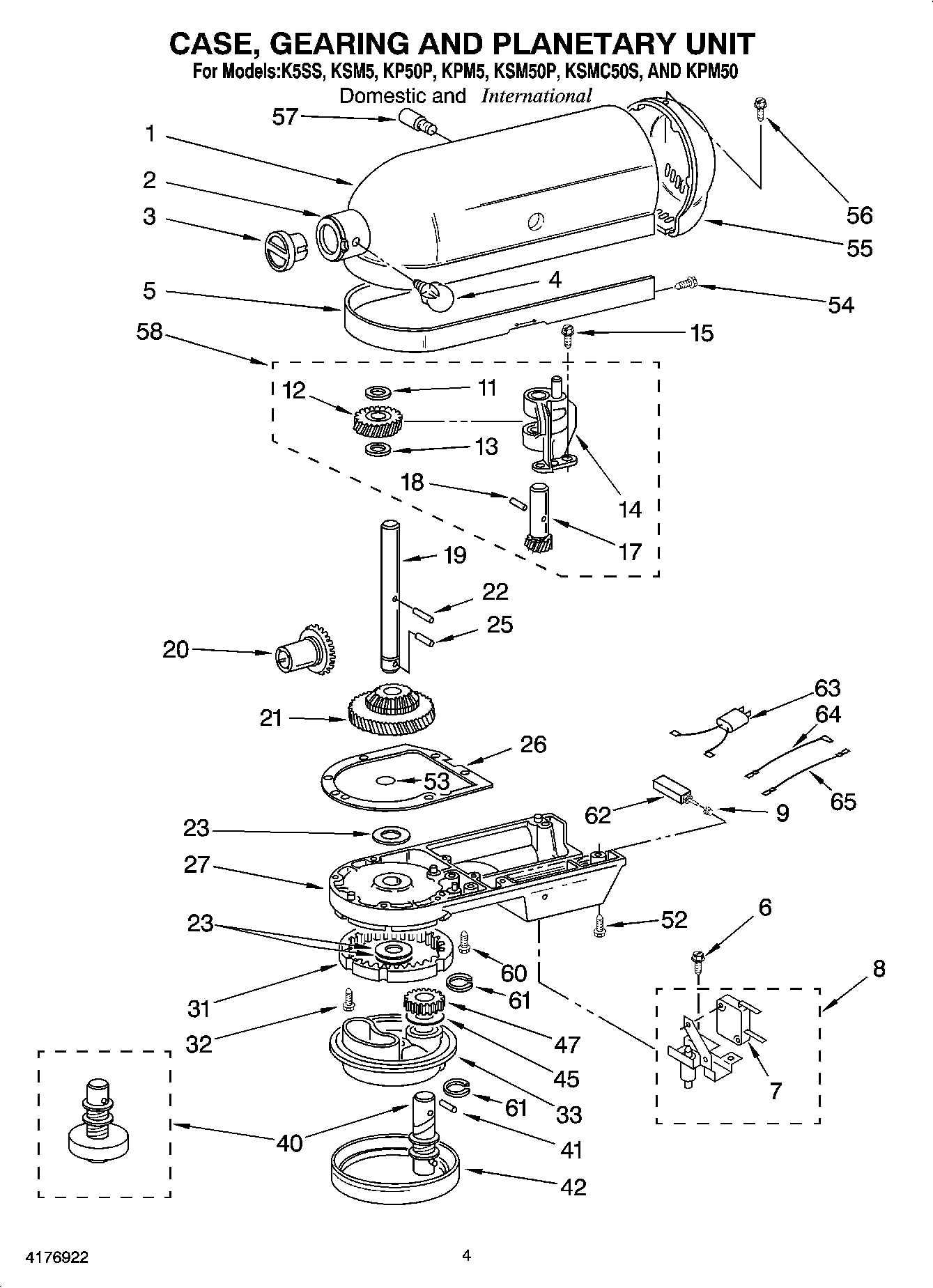

KPM5 02 – CASE, GEARING AND PLANETARY UNIT

KPM5 02 – CASE, GEARING AND PLANETARY UNIT

Written by

in

KPM5 02 – CASE, GEARING AND PLANETARY UNIT

Products

PositionProduct
1MOTOR HOUSING – ROYAL CRIMSON
1WP240291-21 Whirlpool Housing
1WP240291-16 Whirlpool Housing
1WP240291-13 Whirlpool Housing
1GEARCASE MOTOR HOUSING-Majestic Yellow
1GEARCASE MOTOR HOUSING-White
1GEARCASE MOTOR HOUSING-Empire Green
1W11672793 Whirlpool Housing
1GEARCASE MOTOR HOUSING-Imperial Gray
19704025 Whirlpool Housing Assembly
1WP240291-7 Whirlpool Housing Assembly
24159709 Whirlpool Ring
3W11047429 Whirlpool Hub Cap
3W11048596 Whirlpool Hub Chrome Cap
4WP9709194 Whirlpool Black Thumb Screw
4WP9709196 Whirlpool Screw
5TRIM BAND – JAPAN
5TRIM BAMD – PROFESSIONAL MODEL
5BAND TRIM – WHITE (5KPM50)
5BAND TRIM – WHITE (5KPM5)
5TRIM BAND KSM50P MODEL
5BAND-TRIM-WHITE
5TRIM BAND KSMC50S MODEL
5TRIM BAND – INTERNATIONAL
5W11230105 Whirlpool Trim Band
6WP965173 Whirlpool Dishwasher Screw
7Microswitch (International)
8Bowl Actuator Assembly (International)
9Seal, Reset Button
12WPW10112253 Whirlpool Gear Assembly
13WPW10323373 Whirlpool Washer
14W11082541 Whirlpool Bearing
1510-24 X 7/16“ Phil. Fil. Hd. (3)
15W11097298 Whirlpool Dishwasher Screw
17WP240210-2 Whirlpool Worm Gear
18WP9705444 Whirlpool Pin Groove
19WP240026 Whirlpool Control Shaft
20Gear, Attachment Hub Bevel (23T)
21W11192794 Whirlpool HUB Gear
23WPW10323378 Whirlpool Washer
25WP9705443 Whirlpool Pin Groove
26WP4162324 Whirlpool Case Gasket
27WPL 24035448
27WPL 4162128
27WPL 4162129
27WPL 4173582
27WPL 4176186
279702210 Whirlpool Gearcase
27WPL 4176173
27WPL 9701508
27WPL 9701512
27WPL 9704027
27WPL 9704500
27WPL 9704502
27WPL 4176177
27WPL 4176000
31W11340106 Whirlpool Gear Assembly
32WPL 4160595
33W11199173 Whirlpool Planetary Assembly
33W11084831 Whirlpool Planetary Mixer
33240286-22 Whirlpool Planetary Assembly
33WP240286-1 Whirlpool Planetary Mixer
33WPL 4176226
33240286-18 Whirlpool Planetary
33WPL 4176338
33WPL 4176089
33240286-10 Whirlpool Planetary Gear
339706670 Whirlpool Planetary
40WP243368 Whirlpool Agitator Shaft
41WP9707223 Whirlpool Dowel Pin
42WP240285 Whirlpool Drip Ring
45Washer, Shim (.015“ Thk.) (.031“ Thk.)
47W11133645 Whirlpool Pinion Gear
52WP3400025 Whirlpool Screw
53WP67500-55 Whirlpool O-Ring
54W10853069 Whirlpool Screw
55WPL 4176134
55WPW10291362 Whirlpool Cover
55WPL 4176224
55WP240253-1 Whirlpool Cover
55W11084313 Whirlpool Cover
553179869 Whirlpool Cover
55240253-14 Whirlpool Cover Assembly
55240253-16 Whirlpool Cover
55240253-21 Whirlpool Cover
55240253-23 Whirlpool Cover Assembly
55240253-8 Whirlpool End Cover
56WP241877 Whirlpool Screw
57WPL 4176183
58GEAR-WORM
60WP9708653 Whirlpool Screw
61WP9703438 Whirlpool Snap Retaining Ring
62241287-1 Whirlpool Breaker
634176340 Whirlpool Refrigerator Mixer Filter
63WPL ARI154744A
649701105 Whirlpool Wire
65WPL 9702309
65WPL 9702311
