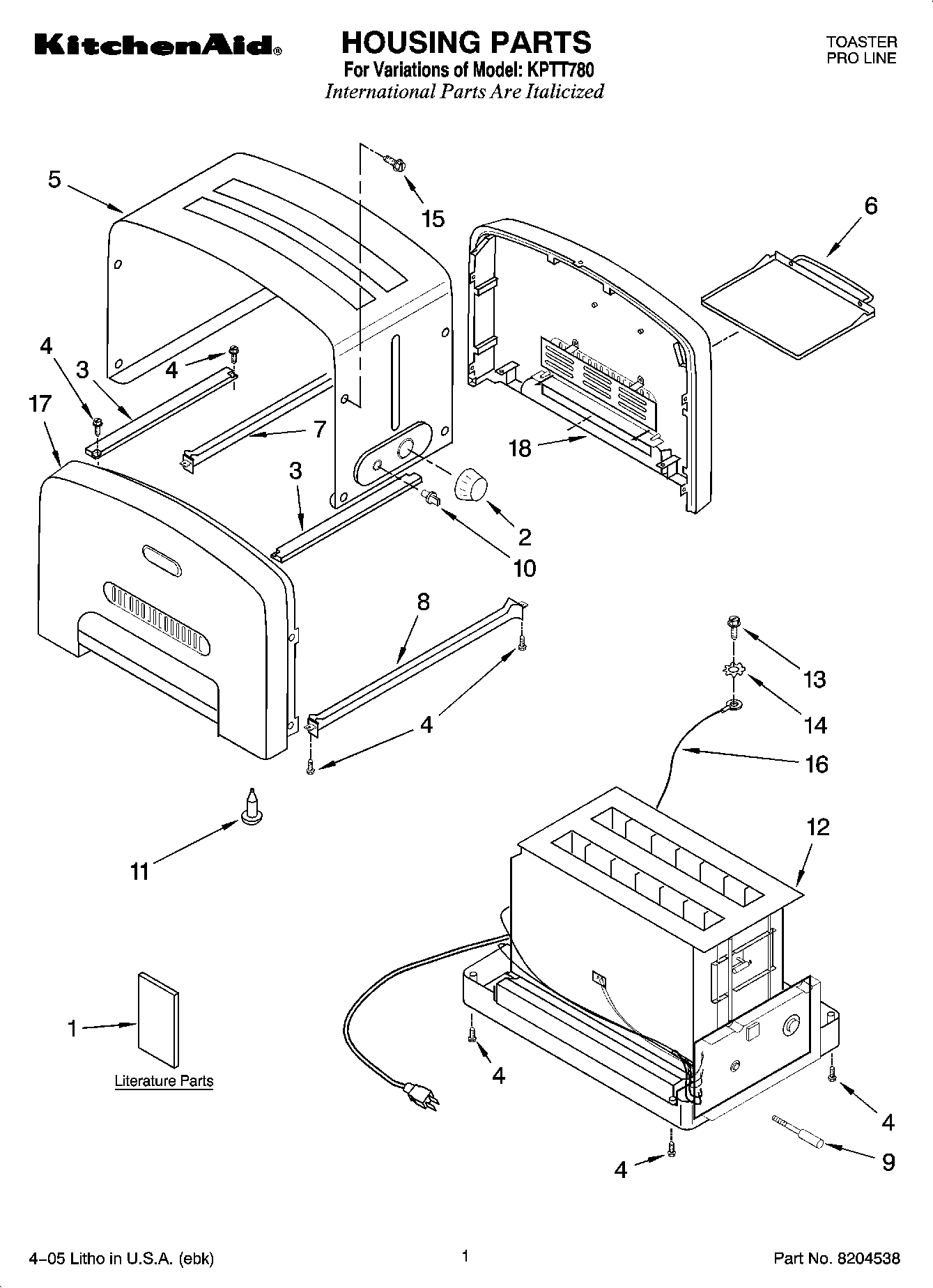

KPTT780 01 – HOUSING PARTS

KPTT780 01 – HOUSING PARTS

Written by

in

KPTT780 01 – HOUSING PARTS

Products

PositionProduct
1Guide, Use & Care
1Repair Parts List (8)
1Guide, Use & Care
2Knob, Darkness
3Support
4Screw
5Wrap Assembly (Includes Items 2 & 10)
6Tray, Crumb
7Bridge, Rear (Cobalt Blue)
7Bridge, Rear (Empire Red)
7Bridge, Rear (Pearl Metallic)
7Bridge, Rear (Tangerine)
8Bridge, Front (Tangerine)
8Bridge, Front (Cobalt Blue)
8Bridge, Front (Empire Red)
8Bridge, Front (Pearl Metallic)
9Arm, Lifter
10Knob, On/Off
11Foot, Rubber
12Chassis (Includes Power Cord, Base, Control Boards, & Heating Elements)
12Chassis (Includes Power Cord, Base, Control Boards, & Heating Elements) (Britain)
12Chassis (Includes Power Cord, Base, Control Boards, & Heating Elements) (Europe)
12Chassis (Includes Power Cord, Base, Control Boards, & Heating Elements) (Australia)
12Chassis (Includes Power Cord, Base, Control Boards, & Heating Elements) (Swiss)
13Screw, Grounding
14Lock Washer
15Screw, Wrap
16Wire, Ground
17Panel Assembly (Left) (Includes Badge & Vent) (Tangerine)
17Panel Assembly (Left) (Includes Badge & Vent) (Empire Red)
17Panel Assembly (Left) (Includes Badge & Vent) (Pearl Metallic)
17Panel Assembly (Left) (Includes Badge & Vent) (Cobalt Blue)
17Panel Assembly (Left) (Includes Badge & Vent) (Empire Red)
17Panel Assembly (Left) (Includes Badge & Vent) (Pearl Metallic)
17Panel Assembly (Left) (Includes Badge & Vent) (Cobalt Blue)
17Panel Assembly (Left) (Includes Badge & Vent) (Tangerine)
18Panel Assembly (Right) (Includes Badge & Vent) (Pearl M
18WPL 4176816
18WPL 4176817
18WPL 4176834
18WPL 4176833
18WPL 4176836
18WPL 4176835
18WPL 4176818
