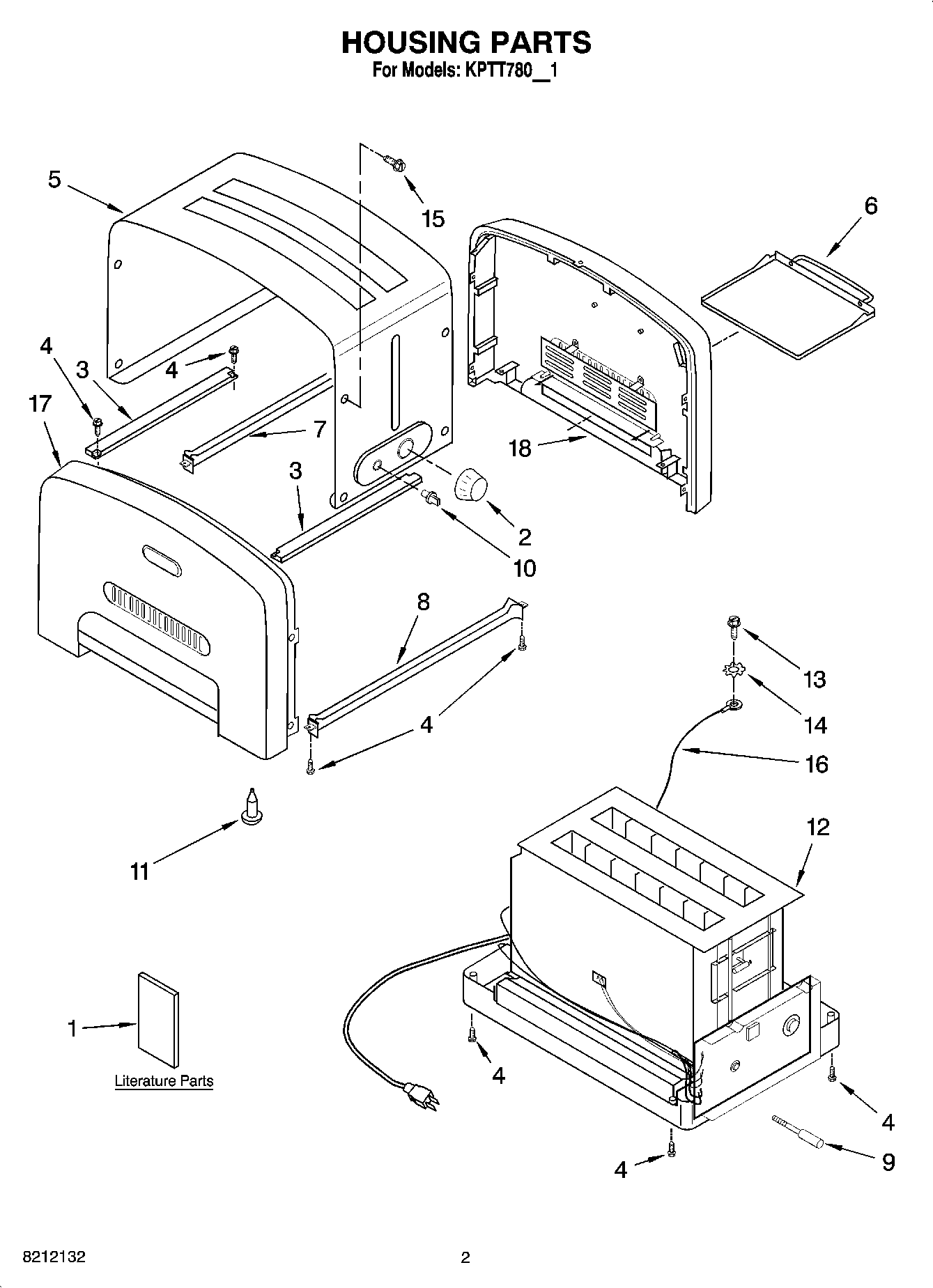

KPTT780PM1 01 – HOUSING PARTS

Products

Position	Product
1	Guide, Use & Care
1	Repair Parts List
2	Knob, Darkness
3	Support
4	Screw
5	Wrap Assembly (Includes Items 2 & 10)
6	Tray, Crumb
7	Bridge, Rear (Onyx Black)
7	Bridge, Rear (Nickel Pearl)
7	Bridge, Rear (Cobalt Blue)
7	Bridge, Rear (Tangerine)
7	Bridge, Rear (Empire Red)
7	Bridge, Rear (Pearl Metallic)
8	Bridge, Front (Pearl Metallic)
8	Bridge, Front (Nickel Pearl)
8	Bridge, Front (Onyx Black)
8	Bridge, Front (Cobalt Blue)
8	Bridge, Front (Empire Red)
8	Bridge, Front (Tangerine)
9	Arm, Lifter
10	Knob, On/Off
11	Foot, Rubber
12	Chassis (Includes Power Cord, Base, Control Boards, & Heating Elements)
13	Screw, Grounding
14	Lock Washer
15	Screw, Wrap
16	Wire, Ground
17	Panel Assembly (Left) (Includes Badge & Vent) (Empire Red)
17	Panel Assembly (Left) (Includes Badge & Vent) (Onyx Black)
17	Panel Assembly (Left) (Includes Badge & Vent) (Nickel Pearl)
17	Panel Assembly (Left) (Includes Badge & Vent) (Pearl Metallic)
17	Panel Assembly (Left) (Includes Badge & Vent) (Cobalt Blue)
17	Panel Assembly (Left) (Includes Badge & Vent) (Tangerine)
18	Panel Assembly (Right) (Includes Badge & Vent) (Pearl M
18	WPL 4176816
18	WPL 4176817
18	WPL 4176818
18	WPL 8212162
18	WPL W10197736
