KPWB100 01 – CONTROL PANEL PARTS
Written by
in

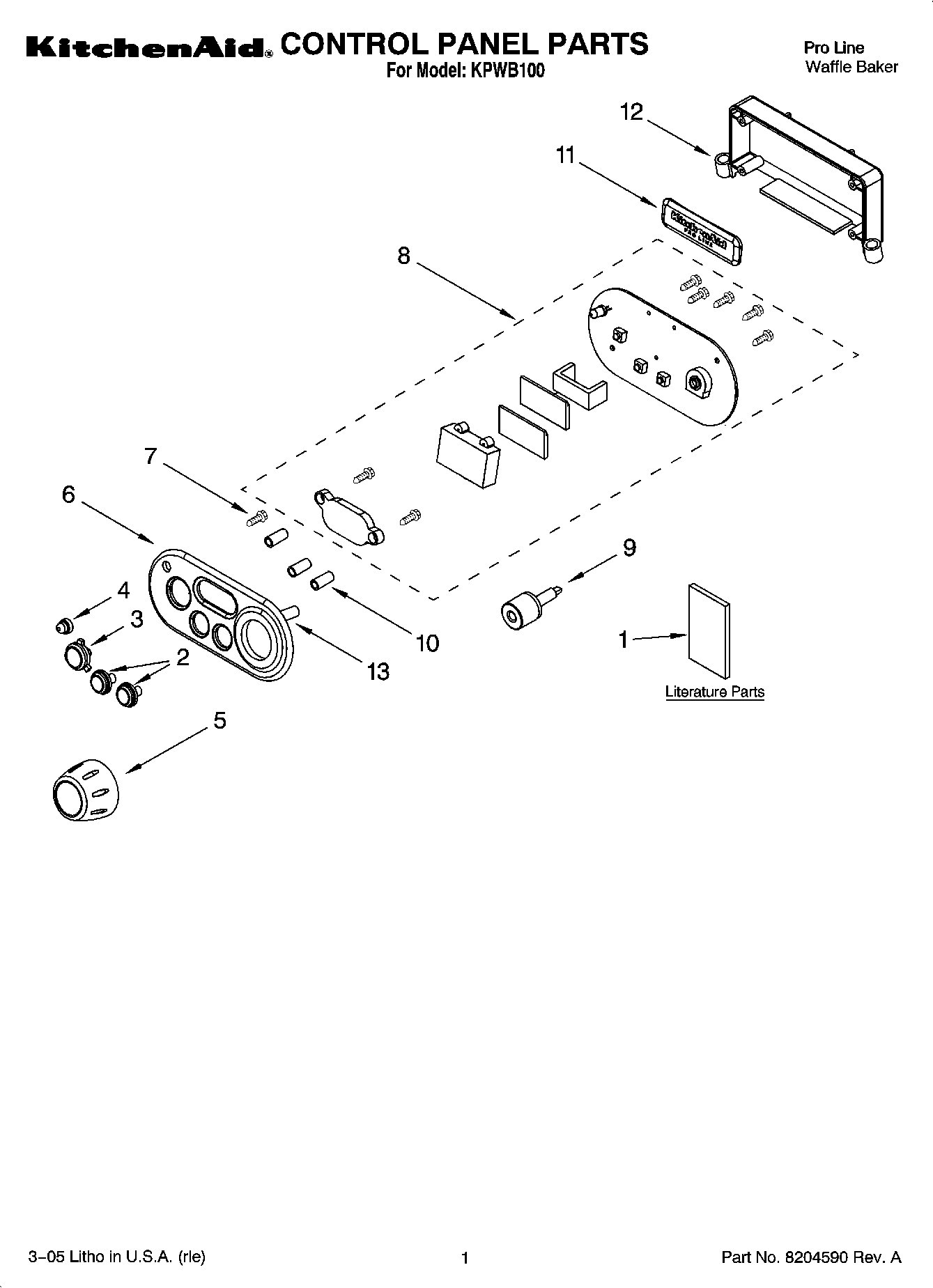

KPWB100 01 – CONTROL PANEL PARTS
Products
Position
Product
1
Guide, Use & Care
1
Repair Parts List (7)
1
Wiring Diagram
2
BUTTON, START (US)
3
8211487 Whirlpool Button
4
LENS, LED
5
KNOB
6
8211488 Whirlpool Bezel
7
SCREW
8
MCU PCB ASSEMBLY (120V – US)
9
BRACKET, KNOB
10
8211508 Whirlpool Cover
11
Nameplate
12
HOLDER, PCB
13
SPRING
←
