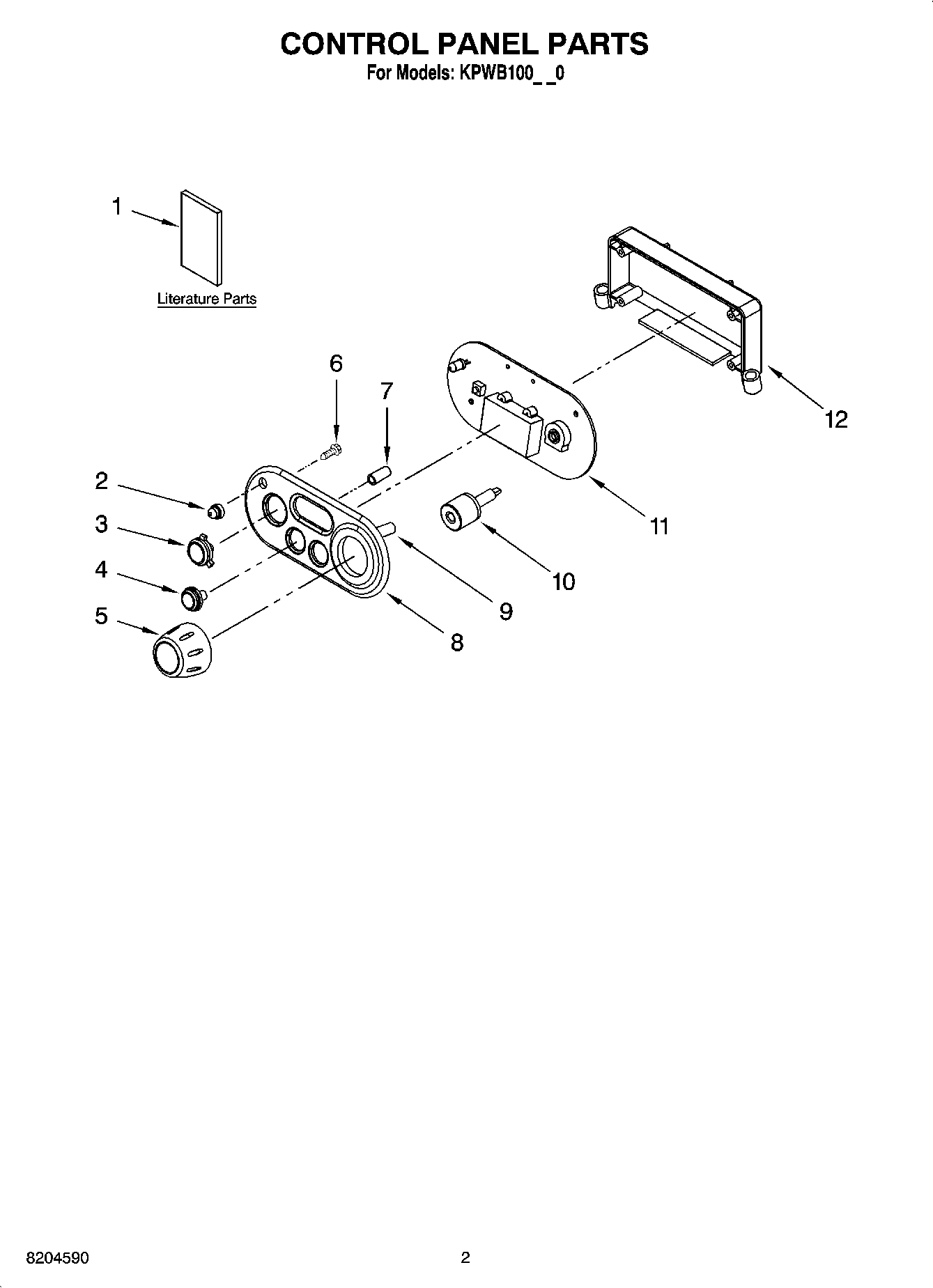

KPWB100NP0 01 – CONTROL PANEL PARTS

Products

Position	Product
1	GUIDE, USE & CARE
1	Wiring Diagram
1	Repair Parts List
2	LENS, LED
3	8211487 Whirlpool Button
4	BUTTON, START (US)
5	KNOB
6	SCREW
7	8211508 Whirlpool Cover
8	8211488 Whirlpool Bezel
9	SPRING
10	BRACKET, KNOB
11	MCU PCB ASSEMBLY (120V - US)
12	HOLDER, PCB
