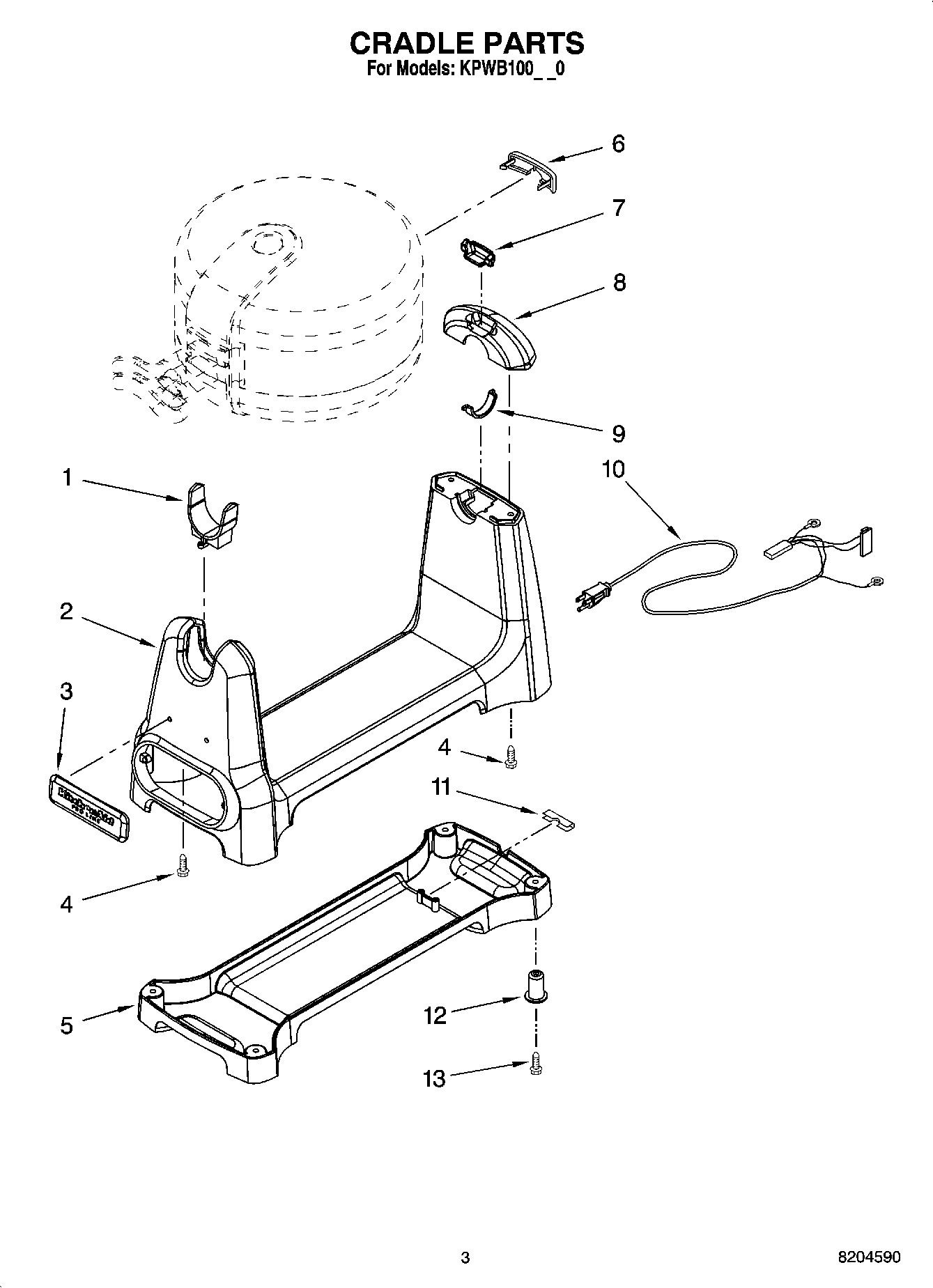

KPWB100OB0 02 – CRADLE PARTS

Written by

Products

Position	Product
1	8211494 Whirlpool Bracket
2	Base (Nickel Pearl)
2	Base (Pearl Metallic)
2	BASE (ONYX BLACK)
3	Nameplate
4	SCREW
5	W10240856 Whirlpool Cover
6	COVER, SPRING
7	CLAMP
8	Cap (Pearl Metallic)
8	Cap (Nickel Pearl)
8	CAP (ONYX BLACK)
9	Holder, Axle
10	CORD, POWER (INCLUDES MOV BOARD AND PCB) (120V – US)
11	CLAMP, CORD
12	8211501 Whirlpool Foot Assembly
13	SCREW
