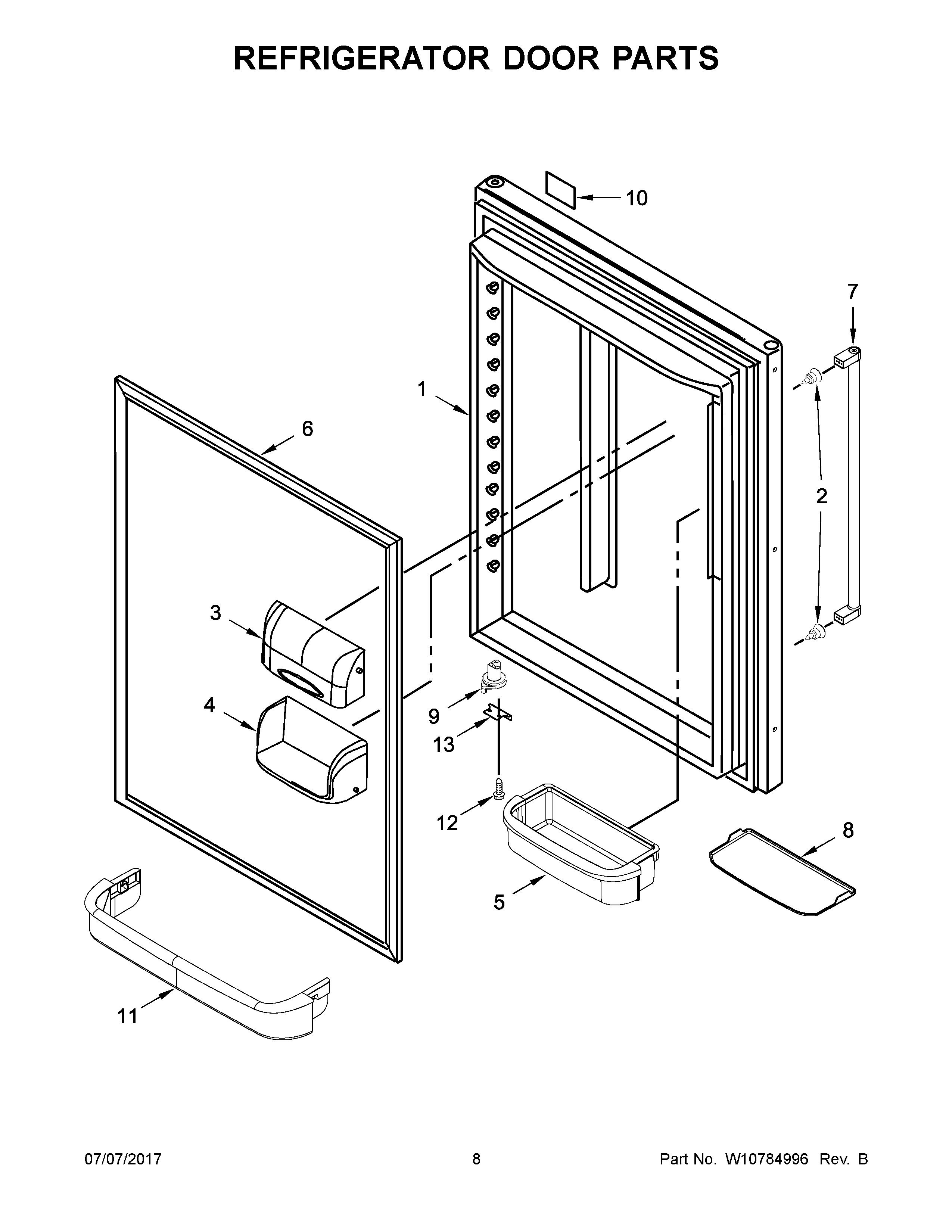

KRBL102ESS00 05 – REFRIGERATOR DOOR PARTS

KRBL102ESS00 05 – REFRIGERATOR DOOR PARTS

Written by

in

KRBL102ESS00 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1A13107546SQ Whirlpool Refrigerator FIP Stainless Steel Door
113107544SQ Whirlpool Refrigerator Foam In Place Door Stainless Steel
2WPW10661886 Whirlpool Refrigerator Door Handle Screw
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6W10443314 Whirlpool Refrigerator FIP Gasket
7W11497229 Whirlpool Refrigerator Handle
8WPW10450021 Whirlpool Refrigerator Mat
9WP12028505AP Whirlpool Closing Cam
10W10839793 Whirlpool Refrigerator Nameplate
1167001019 Whirlpool Door Shelf Trim
12WP98165 Whirlpool Screw
13W11401472 Whirlpool Refrigerator Door Stop
