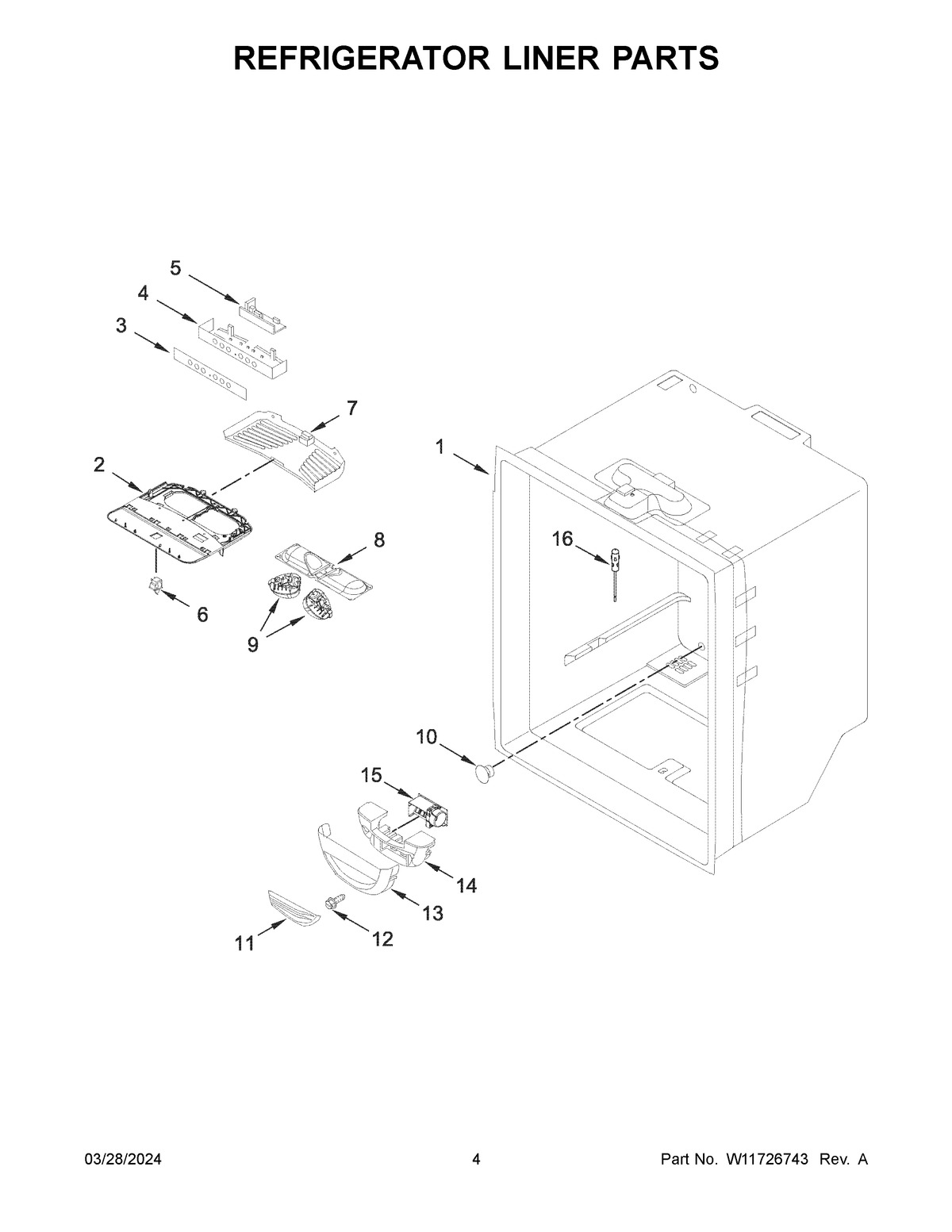

KRBL102ESS05 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NIW11619328 Whirlpool Wire Harness
NIFOLLOWING PARTS NOT ILLUSTRATED
1LINER (NOT A SERVICEABLE PART)
2W10464757 Whirlpool Refrigerator Housing
3W10593588 Whirlpool Refrigerator Overlay
4WPW10464769 Whirlpool Refrigerator Housing
5W11524469-includeCORE Whirlpool W11524469 Refrigerator Electronic Control Board
6W11123941 Whirlpool Refrigerator Switch
7W11284721 Whirlpool Refrigerator Cover
8W10443023 Whirlpool Refrigerator Housing
9MODULE
10M0310343 Whirlpool Button Plug
1167003900 Whirlpool Refrigerator Insert Damper Cover
12WP400021-1 Whirlpool Screw
13WP12806701 Whirlpool Refrigerator Box Cover
14INSULATION
15WPW10594330 Whirlpool Refrigerator Control
1612002355 Whirlpool Refrigerator Thermistor Kit
