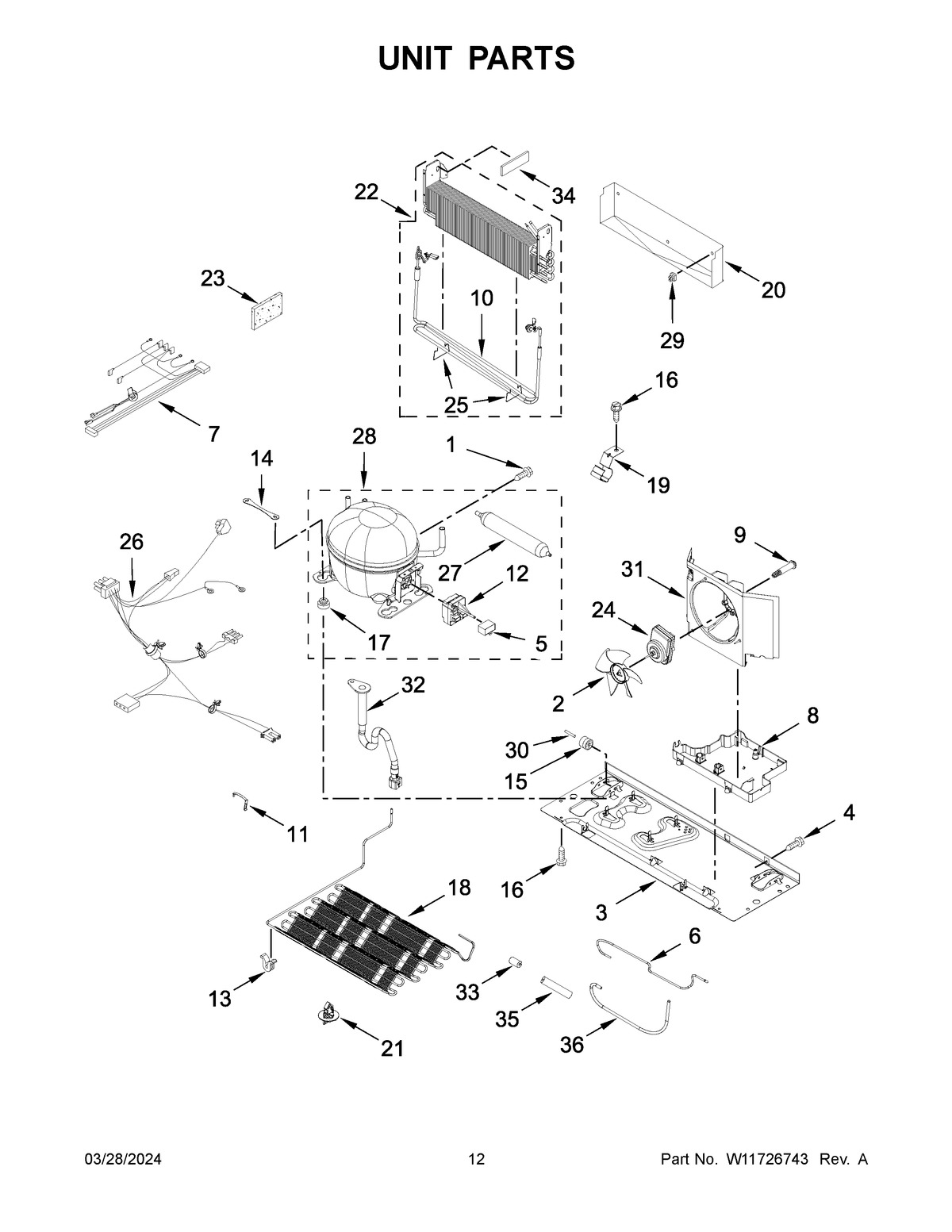

KRBL102ESS05 07 – UNIT PARTS

KRBL102ESS05 07 – UNIT PARTS

Written by

in

KRBL102ESS05 07 – UNIT PARTS

Products

PositionProduct
NIWPL ARI8F8B2CB7C36118F5202FD746085E8C35
112992301 Whirlpool Refrigerator Screw
2WP12825803 Whirlpool Refrigerator Fan Blade
3BASEPAN
467006425 Whirlpool Refrigerator Screw
5WPW10350564 Whirlpool Refrigerator Freezer Capacitor
6W11566600 Whirlpool Tube
7W11524653 Whirlpool Refrigerator Wire Harness
8WPW10655367 Whirlpool Refrigerator Drip Pan
9W10829281 Whirlpool Refrigerator Screw
10W11524652 Whirlpool Refrigerator Heater
11WPL W11379613
12W11524472 Whirlpool Refrigerator Start Device
13WPW10137529 Whirlpool Refrigerator Grommet
14W10236396 Whirlpool Refrigerator Strap
15WP67005149 Whirlpool Roller
16Screw
17WPW10169124 Whirlpool Refrigerator Grommet
18BW11504432 Whirlpool Refrigerator Coupler
18W11482308 Whirlpool Refrigerator Condenser
18AW11506623 Whirlpool Refrigerator Coupler
19W10281329 Whirlpool Clamp
20TRAY, DRIP
21W10815863 Whirlpool Clip
22W11598432 Whirlpool Refrigerator Evaporator Repair
22AW11504423 Whirlpool Refrigerator Coupler
22BW11504415 Whirlpool Refrigerator Coupler
23W11553819 Whirlpool Refrigerator Insulation
24W11613295 Whirlpool Condenser Motor
25W11380964 Whirlpool Clip Assembly
26W11741475 Whirlpool Wire Harness
27BW11504447 Whirlpool Refrigerator Coupler
27W11109499 Whirlpool Refrigerator Tube
27AW11504445 Whirlpool Refrigerator Coupler
28BW11504431 Whirlpool Microwave Coupler
28AW11504416 Whirlpool Refrigerator Coupler
28DW11506635 Whirlpool Refrigerator Valve Coupler
28CW11506621 Whirlpool Refrigerator Coupler
28W11547313 Whirlpool Refrigerator Compressor
29CLIP, EVAP (2)
3067006434 Whirlpool Axle Pin
31W11556315 Whirlpool Shroud
32W10619951 Whirlpool Drain Tube with Grommet
33W10852725 Whirlpool Refrigerator Grommet
34W11451451 Whirlpool Refrigerator Gasket
35SLEEVE
36TUBE
