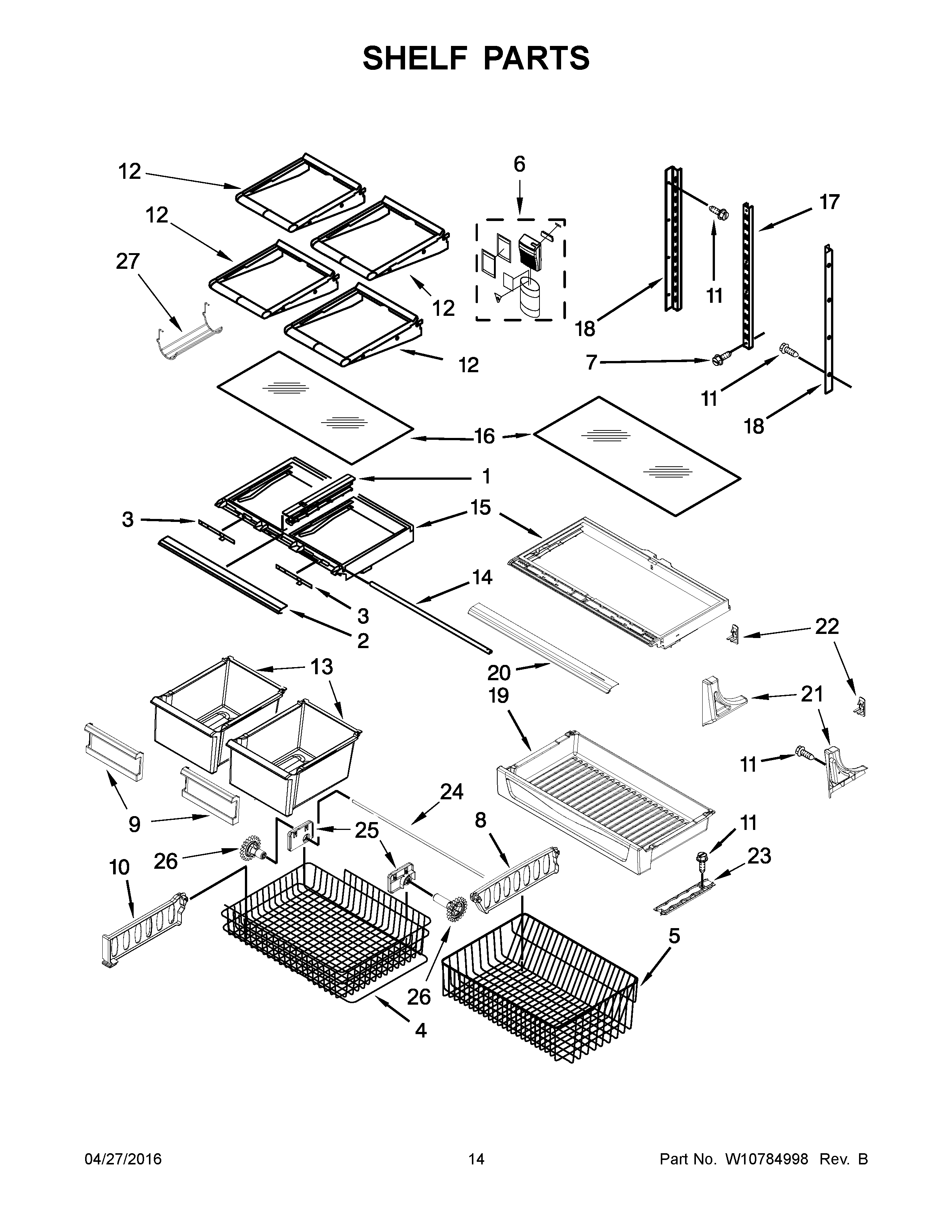

KRBL109ESS00 08 – SHELF PARTS

Products

Position	Product
1	RAIL-CENTR CRISPER
2	WPW10231481 Whirlpool Refrigerator Shelf Trim
3	SLIDE
4	BASKET, FREEZER (UPPER)
5	W10503182 Whirlpool Refrigerator Freezer Basket
6	ASSEMBLY, PRODUCE PRESERVER
7	W10215666 Whirlpool Refrigerator Screw
8	W10847995 Whirlpool Divider Assembly
9	W10833529 Whirlpool Refrigerator Front Pan
10	W10241046 Whirlpool Refrigerator Divider
11	67006425 Whirlpool Refrigerator Screw
12	W11402522 Whirlpool Refrigerator Glass Shelf
13	W10833528 Whirpool Refrigerator Crisper Pan
14	Whirlpool Refrigerator Shelf Support Liner
15	WPW10671240 Whirlpool Refrigerator Frame
16	WP67006877 Whirlpool Refrigerator Glass Shelf
17	W10273463 Whirlpool Refrigerator Ladder
18	W10251970 Whirlpool Refrigerator Ladder
19	W10328331 Whirlpool Refrigerator Utility Pan
20	W10656984 Whirlpool Refrigerator Shelf Trim
21	WP67001721 Whirlpool Refrigerator Support
21A	WP67001722 Whirlpool Refrigerator Support
22	WP67001716 Whirlpool Refrigerator Shelf Support Clip Ladder Hook
23	WP67001719 Whirlpool Refrigerator Track
24	W10802329 Whirlpool Refrigerator Shaft
25A	W10348260 Whirlpool Refrigerator Bracket
25	W10348259 Whirlpool Refrigerator Bracket Assembly
26	WPW10474716 Whirlpool Refrigerator Gear
26A	WPW10474715 Whirlpool Refrigerator Gear
27	W10335942 Whirlpool Refrigerator Wine Rack
