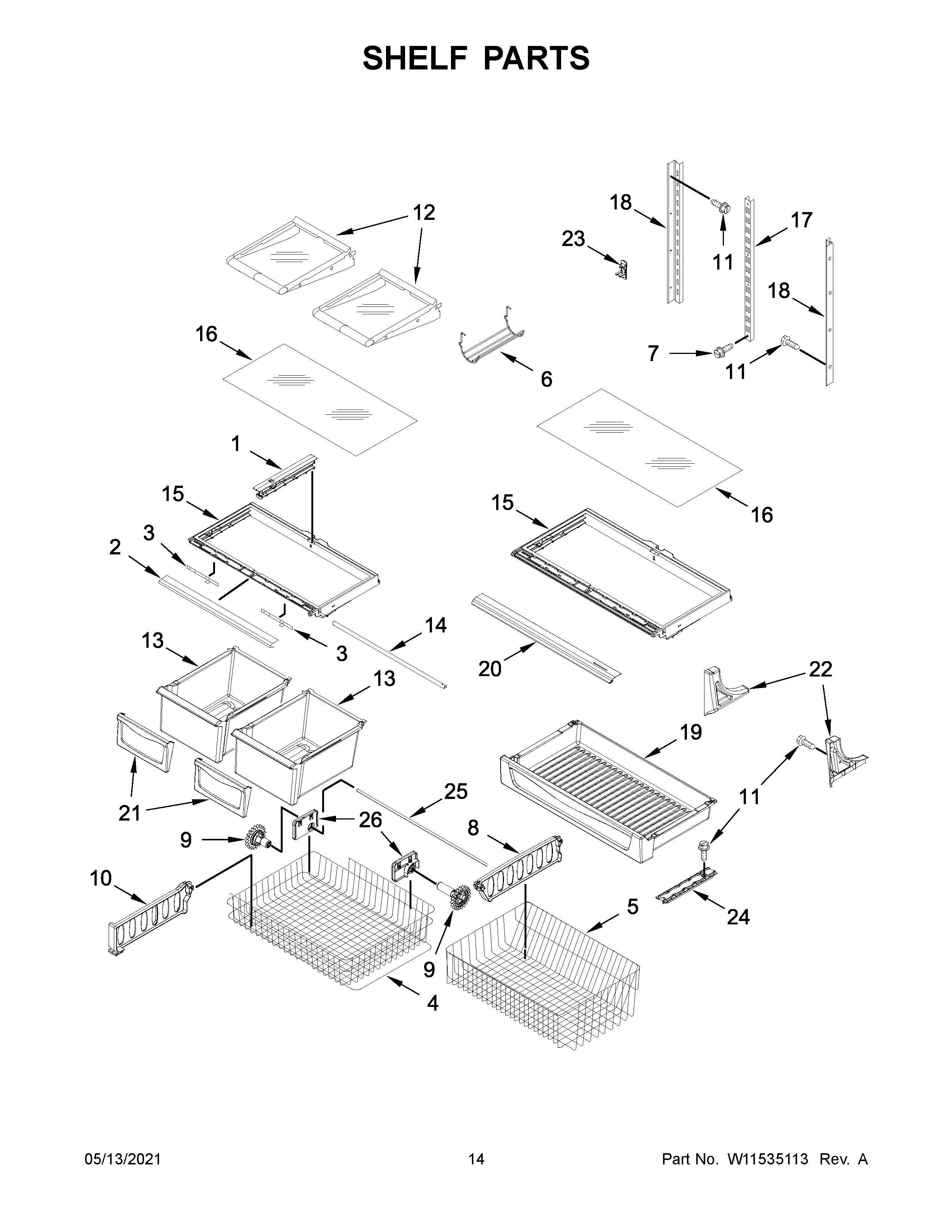

KRBL109ESS03 08 – SHELF PARTS

Products

Position	Product
1	RAIL-CENTR CRISPER
2	WPW10231481 Whirlpool Refrigerator Shelf Trim
3	SLIDE
4	W11281077 Whirlpool Refrigerator Freezer Basket
5	W11281080 Whirlpool Refrigerator Freezer Basket
6	W10335942 Whirlpool Refrigerator Wine Rack
7	W10215666 Whirlpool Refrigerator Screw
8	W10847995 Whirlpool Divider Assembly
9A	WPW10474715 Whirlpool Refrigerator Gear
9	WPW10474716 Whirlpool Refrigerator Gear
10	W10241046 Whirlpool Refrigerator Divider
11	67006425 Whirlpool Refrigerator Screw
12	W11402522 Whirlpool Refrigerator Glass Shelf
13	W10833528 Whirpool Refrigerator Crisper Pan
14	Whirlpool Refrigerator Shelf Support Liner
15	WPW10671240 Whirlpool Refrigerator Frame
16	WP67006877 Whirlpool Refrigerator Glass Shelf
17	W10273463 Whirlpool Refrigerator Ladder
18	W10251970 Whirlpool Refrigerator Ladder
19	W10328331 Whirlpool Refrigerator Utility Pan
20	W10656984 Whirlpool Refrigerator Shelf Trim
21	W10833529 Whirlpool Refrigerator Front Pan
22A	WP67001722 Whirlpool Refrigerator Support
22	WP67001721 Whirlpool Refrigerator Support
23	WP67001716 Whirlpool Refrigerator Shelf Support Clip Ladder Hook
24	WP67001719 Whirlpool Refrigerator Track
25	SHAFT, RACK
26A	W10348260 Whirlpool Refrigerator Bracket
26	W10348259 Whirlpool Refrigerator Bracket Assembly
